7Pin male and female magnetic connector for smart robot
7Pin male and female magnetic connector for smart robot
7Pin male and female magnetic connector for smart robot
7Pin male and female magnetic connector for smart robot
7Pin male and female magnetic connector for smart robot
7Pin male and female magnetic connector for smart robot
Specifications
Brand Name :
UPE
Model Number :
7P-2.54PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA46/PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
7-Pin Magnetic Connector for Smart Robots
Professional 7-pin male and female magnetic connectors designed for smart robot applications, manufactured by Union Precision Electronics Co., Ltd.
Technical Specifications
Materials & Construction
  • Plunger & Barrel: Brass C3604
  • Spring: SUS304 stainless steel
  • Housing: PA46/PA9T engineering plastic
  • Plating: 3μ" gold over 50μ" nickel
Electrical Properties
  • Rated Current & Voltage: DC 12V; 2A
  • Contact Resistance: 50mΩ maximum at working height
Temperature & Durability
  • Withstanding High Temperature: 260°C
  • Operational Temperature: -40°C to 85°C
  • Mechanical Force: 35±10gf at working height
  • Durability: 10,000 cycles minimum
Detailed Specifications
Pin Count 7-pin or customized
Pitch 2.54mm
Type Right angle
Magnet Material Neodymium iron boron
Magnet Grade N52 (as required)
Mechanical Life 10,000 cycles minimum
Salt Spray Test 48 hours
Certification ROHS or REACH compliant
Testing 100% open and short circuit test
Product Images

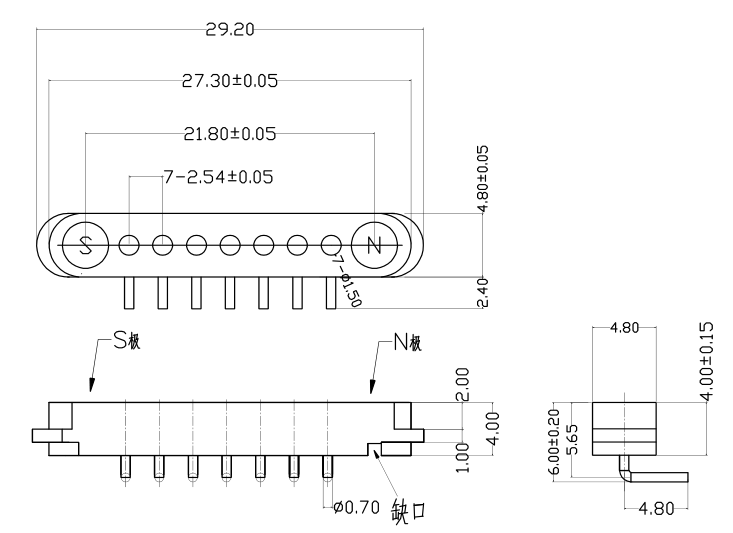

7-Pin Male Magnetic Connector
7Pin male and female magnetic connector for smart robot

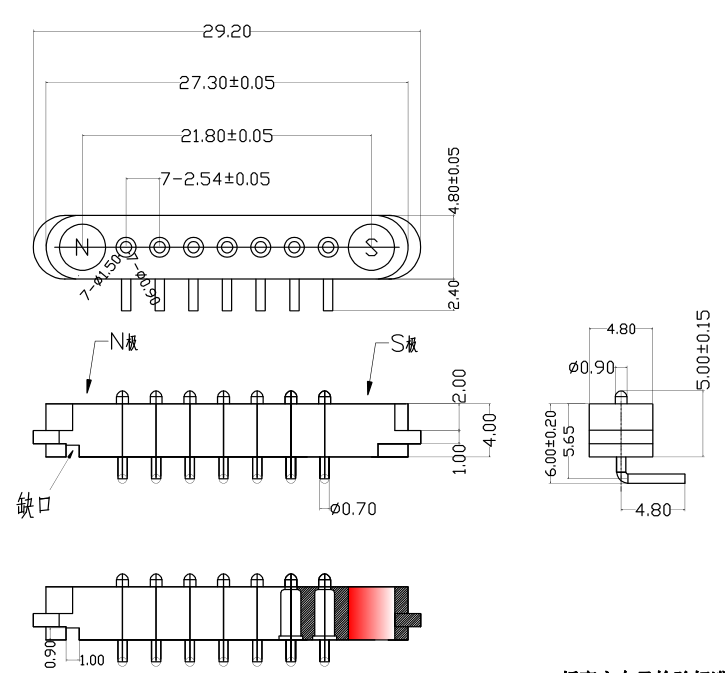

7-Pin Female Magnetic Connector
7Pin male and female magnetic connector for smart robot
Product Advantages
  • Humanized design with automatic magnetic adsorption connection
  • Anti-fall protection for easy removal without device damage
  • Extended lifespan: 100,000-200,000 cycles
  • Waterproof design: Female end provides IPX8 dustproof and waterproof protection
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer device design
  • Anti-short circuit structure with foolproof protection
  • High-frequency signal transmission replacing traditional USB 2.0, HDMI 1.3 functions
Applications
  • Wearable devices, smart watches, Bluetooth headsets, and charging cables
  • Medical equipment, wireless devices, and data communications equipment
  • Telecommunications, automation, and industrial equipment
  • Aviation, aerospace electronics, and military communications
  • Automotive, car navigation, and test measurement equipment
  • Consumer electronics including mobile phones, tablets, cameras, and portable devices
Ordering & Shipping Information
Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 days / Customized sample 5-7 days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with competitive pricing, OEM service, custom sizes and designs
Packaging & Shipping
7Pin male and female magnetic connector for smart robot
