5pin right angle male female pogo pin magnetic connector PA9T housing
5pin right angle male female pogo pin magnetic connector PA9T housing
5pin right angle male female pogo pin magnetic connector PA9T housing
5pin right angle male female pogo pin magnetic connector PA9T housing
5pin right angle male female pogo pin magnetic connector PA9T housing
5pin right angle male female pogo pin magnetic connector PA9T housing
Specifications
Brand Name :
UPE
Model Number :
5P-2.54PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
5-Pin Right Angle Magnetic Pogo Pin Connector
Professional-grade 5-pin right angle male and female pogo pin magnetic connector with PA9T housing. UPE specializes in magnetic connector manufacturing and provides comprehensive customization services to meet specific requirements.
Company Overview
As a leading connector manufacturer in China, UPE delivers competitive solutions including pogo pin connectors, magnetic connectors, and industrial waterproof connectors. Our facility is ISO9001 and ISO14001 certified, with all products complying with EU RoHS environmental standards. We source key raw materials from Taiwan and Japan to ensure superior quality.
Technical Specifications
Pin Count 5-pin or customized
Pitch 2.54mm
Type Right angle
Pogo Pin Material Brass
Housing Material PA9T
Magnet Material Neodymium iron boron
Mechanical Life 10,000 cycles minimum
Current Rating 2.0A
Voltage Rating DC 12V
Contact Resistance 50mΩ maximum
Operational Temperature -40°C to +85°C
Certification ROHS or REACH compliant
Material Composition
  • Plunger (Contact Pin): Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel (SUS304)
  • Housing: High-Tech Plastic (PA9T)
Plating Specifications
  • Plunger Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
  • Barrel Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
  • Gold flash ensures low contact resistance with nickel under-plating for durability
Product Images
5-Pin Male Magnetic Connector
5pin right angle male female pogo pin magnetic connector PA9T housing

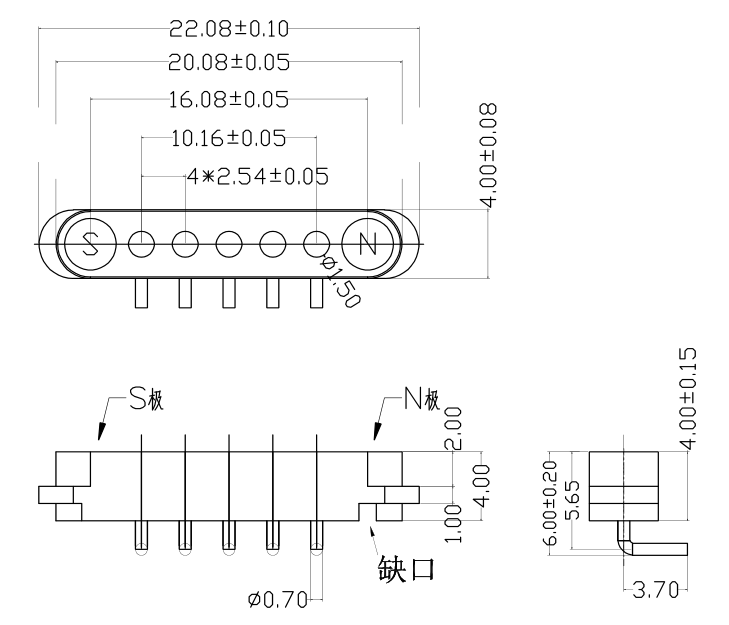

5-Pin Female Magnetic Connector
5pin right angle male female pogo pin magnetic connector PA9T housing
Product Advantages
  • Automatic adsorption connection for user-friendly operation
  • Anti-fall protection prevents device damage during disconnection
  • Extended lifespan: 100,000-200,000 cycles
  • Waterproof design: Female end provides IPX8 dustproof and waterproof protection
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure with foolproof protection
  • High-frequency signal transmission for USB 2.0 and HDMI 1.3 replacement
Why Choose UPE
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
  • Product environmental standards compliance
Application Examples
5pin right angle male female pogo pin magnetic connector PA9T housing
Design Services
5pin right angle male female pogo pin magnetic connector PA9T housing
Ordering & Shipping Information
Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with competitive pricing, OEM service, custom sizes, colors, and designs available
Packaging & Shipping
5pin right angle male female pogo pin magnetic connector PA9T housing
