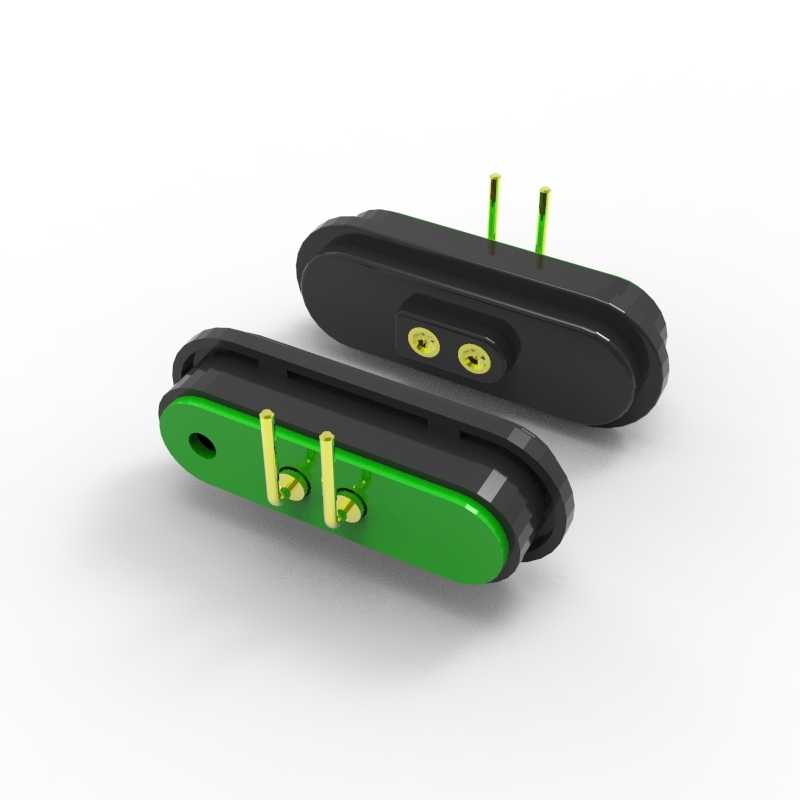

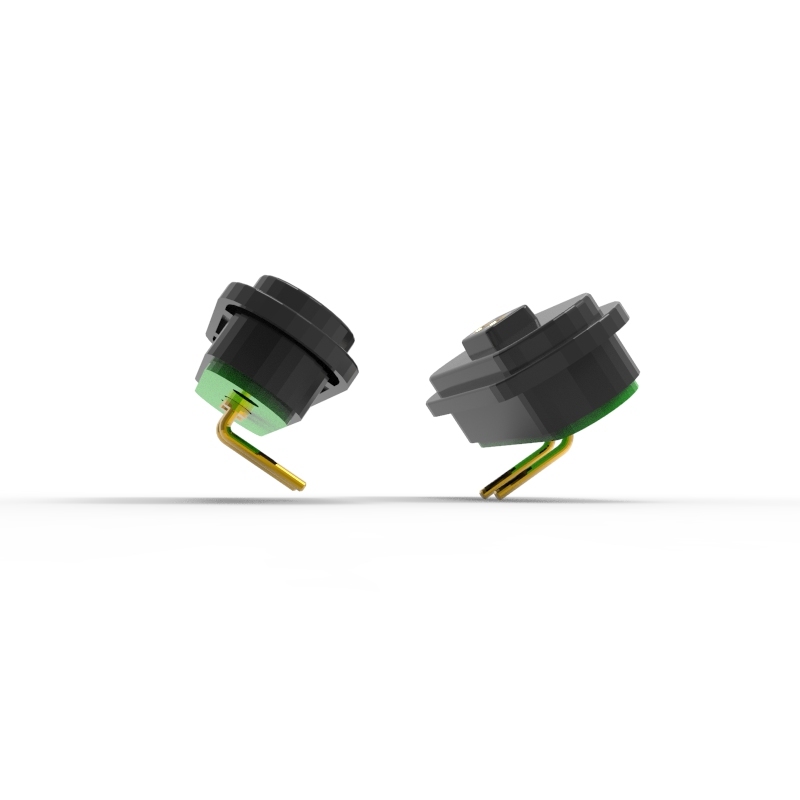

2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
Specifications
Model Number :
VIC0200A/VIC0200B
Current :
5.0A
MOQ :
5000
Delivery Time :
12-15 working days
Working storke :
1.0mm
Payment Terms :
T/T
Magnetic force :
600G
Spring force :
80g±20g
Operation Temperature: :
-25℃ to +60℃
Place of Origin :
China
Contact resistance :
50mΩ Max (PIN)
Packaging Details :
PE bags
Price :
$1-$5
Mechanical life :
50000 cycle Min.
Certification :
ISO9002
Brand Name :
UPE
Volatge :
12V
Supply Ability :
5KPCS/Day
Name :
Magnetic Connectors
Material :
Brass,NdFeB,SUS304
Description
2.8mm Pitch 2-Pin Right Angle Magnetic Pogo Pin Connector with PCB

This 2.8mm pitch 2-pin right angle male/female pogo pin magnetic connector with PCB is designed for DC 5A 12V charging applications. Featuring an anti-short-circuit structure design, it delivers high voltage performance (AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC) with stable pin spacing when fixed to PCB boards.

Product Specifications
Materials
  • Yellow metal needle: Gold-plated brass surface
  • Plastic material: HTN+30%UL94 V-0 black (high temperature resistant)
  • Magnet: High-performance permanent magnet neodymium iron boron
Mechanical Properties
  • Spring force: 80g ± 20g at 1.0mm working height
  • Service life: 50,000 cycles minimum
Electrical Properties
  • Reference voltage: 12V
  • Contact static impedance: 50mΩ Max (PIN)
  • High voltage test: AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC
  • Continuous working current: 5.0A
Product Features
  • Environmental protection materials: ROHS, REACH compliant
  • Magnetic attraction force: >600G between male and female docking
  • Anti-short-circuit structure design
  • Clear polarity and electrical direction identification
  • Epoxy resin coating option available (passes 48-hour salt spray test)
  • Stable pin spacing when fixed to PCB board
Technical Parameters
ParameterSpecification
TypeMale/Female
Pin2-pin
ColorBlack
Pogo Pin MaterialBrass 0.125μm Au over 1.5-2.5μm Ni
Female Pin MaterialBrass 0.125μm Au over 1.5-2.5μm Ni
InsulatorHTN+30%UL94 V-0 black
MagnetNdFeB N52 1.5-2.5μm Ni
Spring Force80g±20g at 1.0mm working stroke
Mechanical Life50,000 cycles minimum
Magnetic Force600G
Current5.0A Max
VoltageDC 12V
Contact Resistance50mΩ Max (PIN)
Operation Temperature25℃ to +60℃
Salt Spray Test48H
CertificationROHS or REACH compliant
Testing100% open and short test
Technical Drawings
2-Pin Male Magnetic Connector
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
2-Pin Female Magnetic Connector
2.8mm pitch 2pin right angle male female pogo pin magnetic connector with PCB
Key Advantages
Effortless Connectivity
  • Automatic Adsorption - Smart magnetic alignment for instant, secure connections
  • Anti-Fall Protection - Easy detachment while maintaining device stability
Unmatched Durability
  • Extended Lifespan - Rated for high cycle reliability
  • IPX8 Waterproof & Dustproof - Female end designed for harsh environments
High-Performance Charging & Data Transfer
  • Fast Charging (5A-10A) - Supports high-current transmission
  • High-Speed Signal Transmission - Replaces traditional USB/HDMI interfaces
Customizable & Safe Design
  • Aesthetic Flexibility - Tailored to match device design language
  • Anti-Short Circuit & Foolproof - Built-in protection against misuse
Applications
  • Wearable devices, smart watches, Bluetooth headsets
  • Medical equipment, wireless communications
  • Automation and industrial equipment
  • Aviation, aerospace, military communications
  • Automotive navigation and testing equipment
  • Consumer electronics (mobile phones, tablets, cameras)
Why Choose UPE?

UPE is a leading manufacturer of high-performance magnetic connectors, specializing in innovative, reliable, and customizable connectivity solutions.

  • Specialized Expertise: Focused R&D in magnetic connectors with custom magnet strength, pin plating, and housing materials
  • High Durability & Compliance: 10,000+ cycle guarantee with UL and RoHS certifications
  • Competitive Manufacturing: Cost-effective tooling with low MOQs and rigorous quality control
  • Fast Prototyping: 3D samples available within days with engineering support
  • Tailored Designs: Professional engineering team for custom magnetic pogo pin connectors
  • Versatile Solutions: Wide range of magnetic connectors for diverse applications
  • End-to-End Support: Complete services from concept to production
Ordering Process
Submit Your Requirements
Email: union@upetech.net
Phone: +86 13434524996
Online Form: www.pogopinsconnector.com

Provide details including:

  • Application (medical, automotive, consumer electronics, etc.)
  • Connector type (magnetic pogo pin, charging cable)
  • Specifications (voltage, current, size, waterproof rating)
  • Quantity & lead time requirements
Custom Solutions

Our engineers will review your needs and provide 3D models, samples, or technical drawings for approval.

Payment & Shipping
Payment Terms
  • 50% Deposit: Covers production costs (materials, labor)
  • 50% Balance: Paid before shipment for quality control
Payment Methods
  • T/T (Bank Transfer)
  • PayPal
  • OCBC Bank

Recommendation: Use PayPal for samples (safer), T/T for bulk orders (lower fees)

Lead Times
  • Sample: 2-3 working days (inventory) / 5-7 working days (customized)
  • Production: 10-15 working days
Shipping & Service
  • Markets: America, Europe, Asia, South Africa
  • Trade Term: EXW
  • Freight: Air, Sea, Express
  • Service: High quality with competitive pricing, OEM services, custom sizes, colors, and designs
