CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
Specifications
Brand Name :
Brando
Model Number :
CA45DD
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, L/C
Supply Ability :
100000 pcs per month
Delivery Time :
4-7 days
Packaging Details :
Inner Boxes, Carton, Pallet
Port Size :
1 1/2''
Valve Series :
DD
Valve Structure :
Right Angle, Dresser Nut
Diaphragm Material :
NBR, FKM
Working Pressure Range :
0.35 To 0.85 MPa
Coil Voltage :
24VDC, 110VAC, 220VAC
Description

CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector

BRANDO pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve. Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Technical Data of DD Series Pulse Jet Valves:

Model No
CA20DD
CA25DD
CA45DD
Port Size
3/4''
1''
1 1/2''
Pipe Connection
Dresser Nut
Diaphragm Number
1
1
2
Working Pressure Range
0.35 to 0.85 MPa (5 to 125 PSI)
Diaphragm Material
NBR, FKM, EPDM
Valve Body Material
Aluminum Alloy


Ordering Code of DD Series Pulse Jet Valve:

CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector

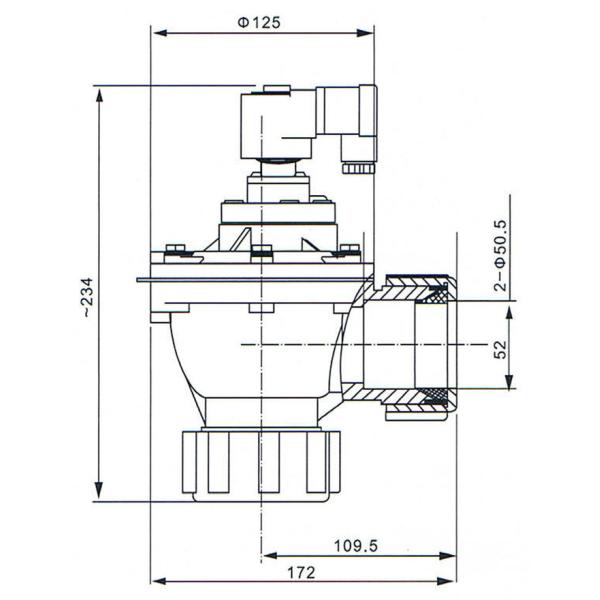

Main Dimension of CA45DD Pulse Jet Valve:

CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector

Video of CA45DD Pulse Jet Valve:

More Goyen Type Pulse Valves for you to choose:

CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
T Series DD Series FS Series MM Series
CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector CA45DD Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
