Dust Collector Pulse Jet Valve Sequence Timer Controller
Dust Collector Pulse Jet Valve Sequence Timer Controller
Specifications
Brand Name :
BRANDO
Model Number :
BC
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C,
Supply Ability :
100000 pcs per month
Delivery Time :
4-7 days
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Pulse Controller
Output Voltage :
24VDC, 110VAC, 220VAC
Input Voltage :
220VAC
Pulse Durtion :
0.03 To 0.2 Seconds
Pulse Frequency :
1 To 64 Seconds
Max Output Lines NO. :
64 Channel
Description

Dust Collector Pulse Jet Valve Sequence Timer Controller

Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control pulse jet valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.

1. Controller outputs an electrical signal duration, called pulse width.
2. Controller output time interval between the two signals, called pulse interval.
3. The control device outputs an electric signal to complete a cycle, the time required for the pulse cycle is called.

Technical Data of Pulse Valve Controller:

Model
BC-08
BC-10
BC-12
BC-20
BC-24
BC-30
BC-36
BC-56
BC-64
Output Lines NO.
1-8
1-10
1-12
1-20
1-24
1-30
1-36
1-56
1-64
Input Voltage
220VAC, Other voltage can be customized
Output Voltage
24VDC, 220VAC, Other voltage can be customized
Pulse Frequency
1 to 30 Seconds
Pulse Durtion
0.03 to 0.2 Seconds
Working Environment
1. -25°C~+55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock

Main Dimension of Pulse Valve Controller:

Output Lines
1-8
1-20
1-36
1-64
Dimension
115x135x65
160x160x95
230x150x90
248x188x105

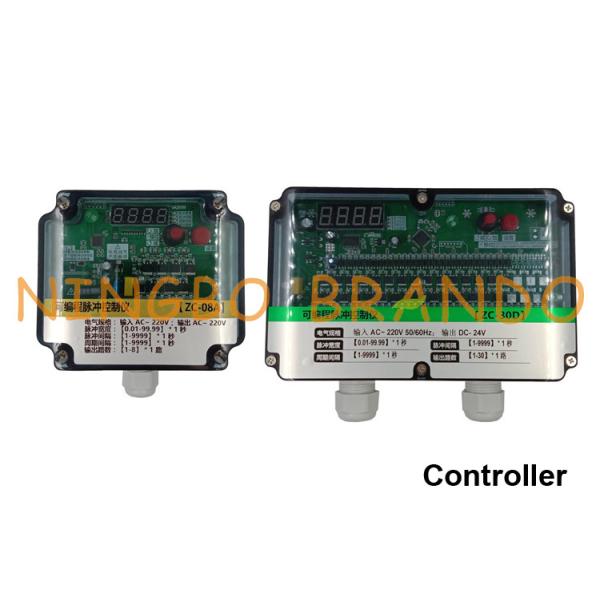

Details Images of Pulse Valve Controller:

Dust Collector Pulse Jet Valve Sequence Timer Controller

Brando Supply Dust Collector Parts:

SBFEC Type Pulse Jet Valve Goyen Type Pulse Jet Valve ASCO Type Pulse Jet Valve Turbo Type Pulse Jet Valve
Dust Collector Pulse Jet Valve Sequence Timer Controller Dust Collector Pulse Jet Valve Sequence Timer Controller Dust Collector Pulse Jet Valve Sequence Timer Controller Dust Collector Pulse Jet Valve Sequence Timer Controller
Solenoid Valve Coil Solenoid Valve Armature Diaphragm Controller
Dust Collector Pulse Jet Valve Sequence Timer Controller Dust Collector Pulse Jet Valve Sequence Timer Controller Dust Collector Pulse Jet Valve Sequence Timer Controller Dust Collector Pulse Jet Valve Sequence Timer Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
