Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Customized Automatic Weighing Dosing Batching System For Rubber Industry
Specifications
Brand Name :
MACHTECH
Certification :
CE, ISO
Place of Origin :
China
Price :
US$100,000.00 - 300,000.00
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
120Days-160Days
Packaging Details :
Seaworthy Packing
Type :
Customized
Capacity :
Depends on the specific system and customer needs
Control System :
PLC
Installation :
On-site installation by professional technicians
Safety Features :
Emergency Stop Button, Safety Interlock System
Material :
Stainless Steel
Operation Mode :
Automatic
Power Source :
Electricity
Product Type :
Industrial Equipment
Loading Method :
Pneumatic or mechanical
Maintenance :
Regular maintenance required for optimal performance
Unloading Method :
Gravity or pneumatic
Application :
Unloading raw materials from trucks or containers
Conveying Distance :
Customizable
Conveying Speed :
Adjustable
Dust Collection System :
Included
Installation Method :
Fixed on Ground
Unloading Mode :
Automatic
Power Supply :
380V/50Hz
Conveying Method :
Pneumatic
Description
Product Description

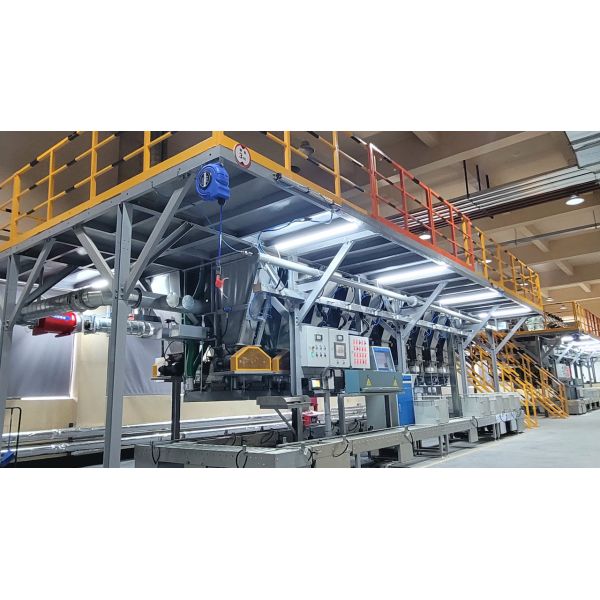

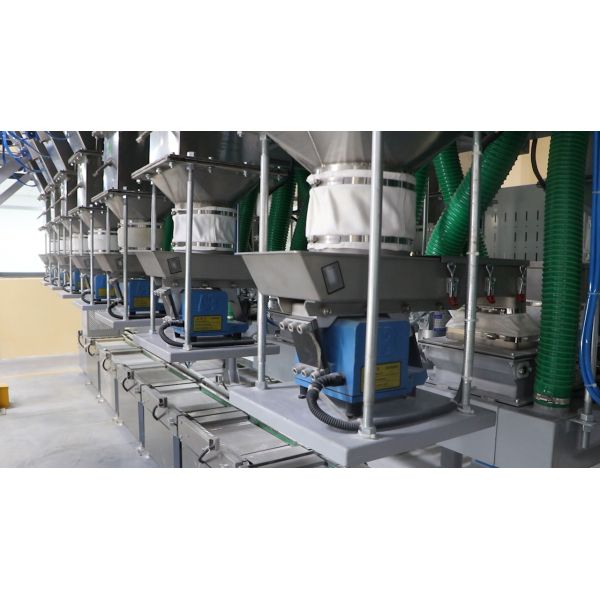

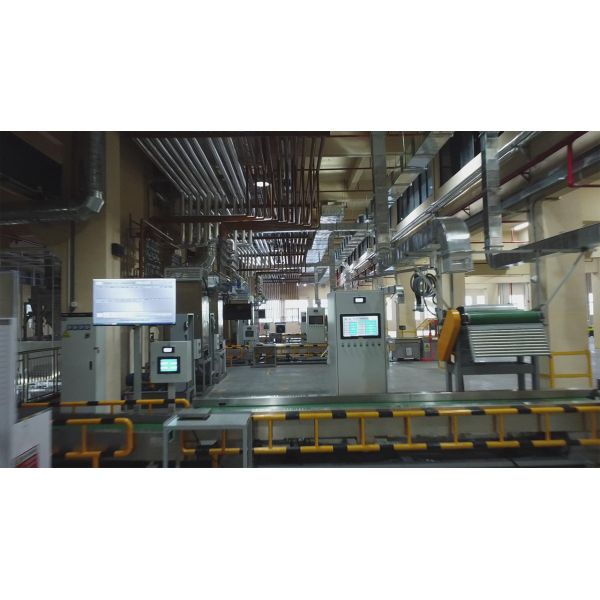

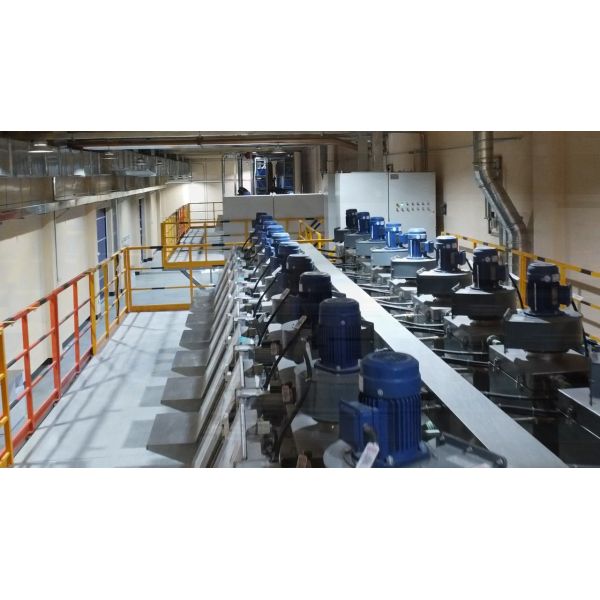

Automatic Chemical Weighing Dosing Batching System for Rubber Industry

Main Technical Parameters
Number of applicable dosing chemcials 8-48 kinds
Weighing range of electronic scale 10-50kgs
Weighing accuracyof electronic scale static ≤±0.1% F.S
Weighing accuracyof electronic scale dynamic ≤±0.15% F.S
Weighing accuracyof electronic scale accumulative ≤±0.2% F.S
Gradient of weighing display instrument 1g, 2g, 5g
Dosing cycle time and productivity continuous dosing capacity reached 240-360 bags/ shift
Dust contents in tail air after dust removal system ≤8mg/m3
System equipment noise <75dB
Installed capacity 15-25kW/Set
Feature:
  • Realized remote management and control and after- sales support, improved management level.
  • Using high resolution electronic scale and weighing display instruments, enabled high weighing accuracy.
  • Muli-stations simultaneous weighing and dosing, continuous dosing capactity reached 200-600 bags/shift,resulted in high productivity.
  • Key elements and components are all import or from joint venture company's products, ensured stability and reliability.
  • Field bus working system (i.e. setup of PLC substations), can automatically check the running conditions, giving alarm location and solution prompting as abnurmalities occur, for facilitation for troubleshooting and maintenance.
  • Rectangular circulation conveying line layout, open Chinese- English M-M interface, system working process display in multi-areas, monitoring and operation functions, all make use easier and simpler.
  • Automatically testing the system running conditions, gives alarm location as abnormalities occur, and troubleshooting prompts.
  • Lower energy consumption design, avaiable of safety interlocking protection measures, ensured energy saving and safety.
  • Optimized dust removal and recovery system design, equipped with bag filter for each machine, free from dust flying and leakage, enabled good environment and no raw material wasting
  • Flexible layout(incl. 1 and 2 stroy layouts, suitable for 8-48 kinds of raw materials), wide suitability for meeting the demands of different users.
