Manufacturer : Hakko Electronics ( by Fuji Electric )

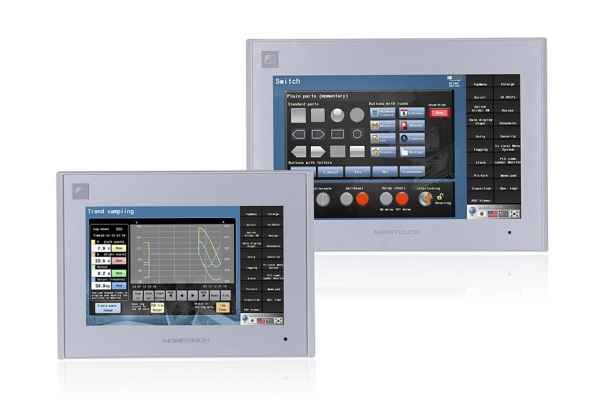

V9100iSD

Power supply :-

Rated voltage : 24V DC

Permissible range of voltage : AC: -15%, +10%/ DC: ñ10%

Permissible momentary power failure : AC within 20ms, DC within 1ms

Demand (maximum rating) : AC: 70VA or less/ DC: 28W or less

Insulation resistance :-

DC500V 10M or more

Physical environment :-

Ambient temperature : 0 50øC*1

Ambient humidity : 85%RH or less (without dew condensation)*1

Operation altitude : 2,000 meters or lower

Atmosphere : Not to be exposed to corrosive gas, or conductive dust

Storage temperature : 10 60øC*1

Storage humidity : 85%RH or less (without dew condensation)*1

Overvoltage category : Category II

Contamination level : Level 2

Mechanical operating conditions :-

Resistance to oscillation : Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5 9Hz, pulsating with:3.5mm,
9 150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)

Resistance to shock : Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)

Electric operating conditions :-

Resistance to noise : Noise voltage: 1,500Vp-p, pulse width: 1 s, pulse rise time: 1ns

Resistance to static discharge : Complies with IEC61000-4-2, contact: 6kV, air: 8kV

Installation conditions :-

Grounding : Grounding resistance: Less than 100 , FG/SG separation

Structure : Front panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed)
Rear cover:Complies with IP20
Form: Single unit, Installation method: Panel mounting

Cooling system : Natural air cooling

Dimensions W*H*D(mm) : 303.8?231.0?54.0

Panel cutout (mm) : 289.0?216.2 +0.5/-0

Case color :Light gray

Material :PC

Screen memory (FROM) :-

64MB

Backup memory (SRAM) :-

800KB

Display :-

Display device : TFT color LCD

Resolution : 800?600

Display size : 10.4"

Colors : 16.7 million*3

Backlight : LED

Backlight life : 70,000 hours

Touch switch :-

Type : Analog resistance film

Function switch :-

Quantity : 8

External interface :-

D-Sub 9-pin (CN1) : RS-232C/ RS-422/485, Asynchronous type,

Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,

Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps

Modular 8-pin
MJ1/MJ2 : RS-232C/ RS-422/485 (two-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
19200, 38400, 57600, 76800, 115200 bps

SD card : One card slot provided as standard

Ethernet : 1ch,
Baud rate: 100Mbps,
10Mbps

Wireless LAN : -

USB : Type A,Type mini-B(Ver.2.0)

Sound output : 1ch provided as standard

Clock :-

Backup period : 5 years (Ambient temperature 25øC)

Calendar accuracy : Gap ñ90 sec. per month (Ambient temperature 25øC, when power is not supplied)

Standard :-

CE marking*5 : EN61000-6-2,EN61000-6-4

UL cUL*5 : UL508,ANSI/ISA 12.12.01*2

KC : Compliant

Radio Act : -

Shipping Weight : 10 Kg
