TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
Specifications
Brand Name :
FUJI
Model Number :
TS1070SI
Place of Origin :
China/Japan
MOQ :
1/pc
Price :
$150-$2000
Payment Terms :
T/T, western union
Supply Ability :
10pc/per week
Packaging Details :
Carton packaging
Display device :
TFT color
Screen size :
7.0” widescreen
Backlight :
LED
Screen memory (FROM) :
64MB
Type :
Analog resistance film
Rated voltage :
100-240V AC/ 24V DC
Permissible range of voltage :
AC: -15%, +10%/ DC: ±10%
Description

V9060iTD 5.7inches Programmable Display V9060iT Series

Features

TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI

Specifications of TS1070S/TS1070Si

Model TS1070S TS1070Si
Main unit specifications Screen size 7.0” widescreen
Display device TFT color
Resolution 800 × 480 dots
Colors 65,536 colors
Backlight LED
Touch screen Analog registive
Certifications CE / KC / UL / cUL
User Memory FROM 26 MB
SRAM 128 KB
External interface specifications COM1
D-Sub 9 pin (female)		 RS-422/RS-485(4-wire/2-wire)
Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
Baud rate: 4800,9600,19200,38400,57600,76800,115200,187500*1 bps
COM2/COM3
D-Sub 9 pin (male)		 COM2:RS-232C COM3: RS-422/RS-485(2-wire)
Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
Baud rate: 4800,9600,19200,38400,57600,76800,115200 bps
LAN RJ-45 - 1 ch
USB-A 1 ch
USB mini-B 1 ch
Power supply Permissible range of voltage 24 V DC ± 10 %
Power consumption
(max. rating)		 11W or less
Physical environment Ambient temperature 0 to 50°C*2
Ambient humidity 85% RH or lower(non-condensing)*2
Contamination level 2
Operation altitude 2,000 m or less
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage ambient temperature -10 to 60°C*2
Storage ambient humidity 85% RH or lower(non-condensing)*2
Installation conditions Protective structure Panel front IP65 equivalent (when using waterproof gasket*3), IP40 equivalent (when not using waterproof gasket*3)
Rear case IP20 equivalent
Dimensions
W × H × D		 198.8 × 141.8 × 38.0 mm
Panel cutout 189.0 × 134.0 (+0.5/-0)mm
Case color Black
  • *1 187500 bps is only relevant to Siemens AG MPI/PPI communications.
  • *2 Use at a wet-bulb temperature of 39°C or lower to avoid damage.
  • *3 This is an optional item.

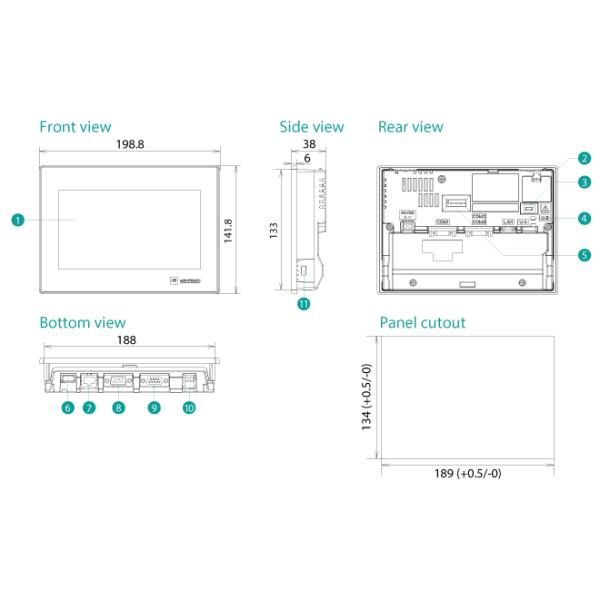

Outline drawing of TS1070Si/TS1070S

Dimensions and Part Names

(Unit: mm)

TS1070SI Programmable Display Technoshot TS1000 Smart Series HMI
Part Names
  1. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIDisplay
  2. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIBattery compartment
  3. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIUSB mini-B (U-B)
  4. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIUSB cable retention
  5. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIDip switch
  6. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIUSB-A (U-A)
  1. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIEthernet port 100BASE-TX/10BASE-T connector (LAN)*
  2. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIRS-232C/RS-422/RS-485 connector (COM2/COM3)
  3. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIRS-422/RS-485 connector (COM1)
  4. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIPower input terminal block
  5. TS1070SI Programmable Display Technoshot TS1000 Smart Series HMIMounting point
