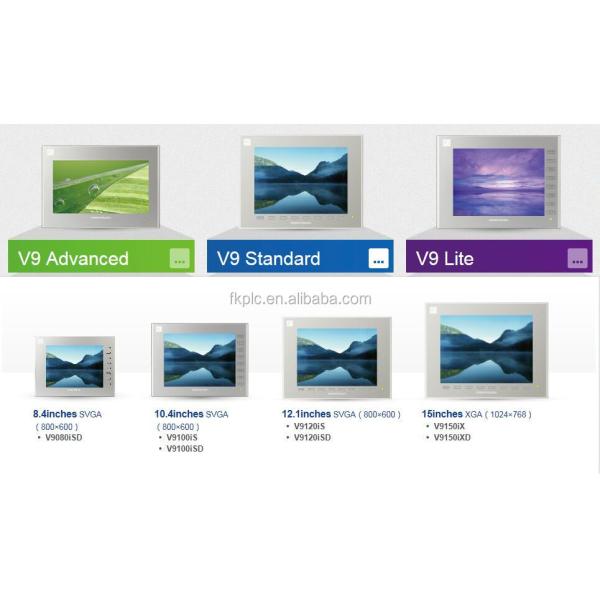

V9080iSD Fuji 8.4inches Human Machine Interfaces
V9080iSD Fuji 8.4inches Human Machine Interfaces
V9080iSD Fuji 8.4inches Human Machine Interfaces
V9080iSD Fuji 8.4inches Human Machine Interfaces
V9080iSD Fuji 8.4inches Human Machine Interfaces
V9080iSD Fuji 8.4inches Human Machine Interfaces
Specifications
Brand Name :
FUJI
Model Number :
V9080iSD
Place of Origin :
China/Japan
MOQ :
1/pc
Price :
$150-$2000
Payment Terms :
T/T, western union
Supply Ability :
10pc/per week
Packaging Details :
Carton packaging
Display device :
TFT color LCD
Resolution :
1024*768
Backlight :
LED
Backlight life :
100,000 hours
Type :
Analog resistance film
Rated voltage :
DC24V
Port :
Guangdong/Shenzhen/Dongguan
Description

V9080iSD Fuji 8.4inches Human Machine Interfaces

Features

V9080iSD Fuji 8.4inches Human Machine Interfaces

Dimensions and Part Names

V9080iS
Power supply Rated voltage DC24V
Permissible range of voltage ±10％
Permissible momentary power failure within 1ms
Demand (maximum rating) 28Ｗ or less
Insulation resistance DC500V 10MΩ or more
Physical environment Ambient temperature 0～50℃ *1
Ambient humidity 85%RH or less (without dew condensation) *1
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10～60℃ *1
Storage humidity 85%RH or less (without dew condensation) *1
Overvoltage category Category II
Pollution degree Pollution degree 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5̃9Hz, pulsating with:3.5mm,
9̃150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Structure Protection structure: Front case: IP66, Type 4X/13 *2(when water-proof gasket is used), Rear case: IP20, single unit, installation method: panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 235.0×180.0×48.9
Panel cutout (mm) 220.5×165.5(+0.5/-0)
Case color Light gray
(black front housing for black model)
Material PC resin
  • *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM) 64MB
Backup memory (SRAM) 800KB
Display Display device TFT color LCD
Resolution 800×600
Display size 8.4″
Colors 16.7 million*3
Backlight LED
Backlight life 70,000 hours
Touch switch Type Analog resistance film
Function switch Quantity 8
External interface D-Sub 9-pin (CN1) RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system),
Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *4bps
Modular 8-pin
(MJ1/MJ2)		 RS-232C/ RS-485(2-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits,
Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
SD card One card slot provided as standard
Ethernet 1ch,
Baud rate: 100Mbps,
10Mbps
Wireless LAN *5 Complies with IEEE802.11b/g/n (2.4GHz)
USB Type A,Type mini-B(Ver.2.0)
Sound output 1ch provided as standard
Clock Backup period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE marking EN61000-6-2,EN61000-6-4 *7
UL･cUL UL61010-1,UL61010-2-201 *6,ANSI/ISA 12.12.01 *2
KC *7*8 Compliant
Radio Act *5 Japan: TELEC
Classification Standard *7*9 Nippon Kaiji Kyokai (NK)
American Bureau of Shipping (ABS)
Lloyd's Register of Shipping (LR)
Det Norske Veritas (DNV)
  • *2: Hardware of Ver. b or later.
  • *3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
  • *4: Only for Siemens MPI (Incompatible with DUR-00).
  • *5: Wireless LAN-compatible products only.
  • *6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
  • *7: Wireless LAN compatible products are not supported.
  • *8: Black model not certified
  • *9: Hardware Ver. c or higher.
