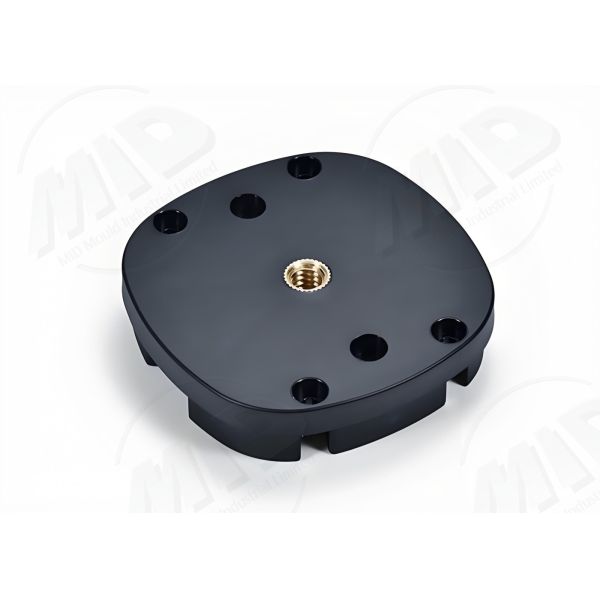

Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components
Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components
Specifications
Brand Name :
MID MOULD
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
Delivery Time :
25–45 working days (longer for complex tools)
Certification :
ISO9001,FDA,ISO13485
Price :
USD $3,000–$50,000 per set (depending on complexity)
Packaging Details :
Wooden case + anti-rust oil + protective film + packing list
Supply Ability :
20–35 sets per month, depending on structure
Shaping mode :
Plastic Injection Mould,Plastic injection molding,Compression Mould
Material :
STEEL,ps,PP,Steel and metal,aluminum
Product :
Vehicle Mould,Household Appliance,plastic injection mold,injection machine mold,Household Product
Mould life :
250000-300000shots,200~1 M available,300,000shots,000 times
Runner :
Hot Runner\ Cold Runner,cold/hot
Cavity :
Multi Cavity,as per client's requirement
Product material :
Plastic,Steel,PP,ABS,PS
Mold material :
NAK80,H13,50#,P20,45#
Design software :
CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
Mould material :
P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 etc,H13
Application :
Home Appliance,Industrial,Automotive,various range,Machine
Product name :
Plastic Injection Mould,injection machine mold,Shanghai Factory Cheap Plastic Component Injection Mold,High quality virgin raw material custom plastic injection mold product,Gear parts
Mould base :
non-Standard plastic injection mould,World standard,European standard,LKM.HASCO,HASCO standard
Surface treatment :
sandblasted,Texture,anodizing black,clear painting,Polishing
Size :
as samples/drawings,customized accepted,Customized Size
Mold runner :
Hot&Cold runner you can choose,Hot runner and code runner
Mold life :
000 to 1,500000 shots,000 shots,100000-1000000,50
Plastic material :
Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
Description
Product Process

Insert injection molds are often used for parts operating in high-temperature environments. Metal inserts enhance the product's heat resistance and strength, ensuring long-term stable operation.

Process Flow
  • High-temperature operating environment analysis
  • CAD/CAE thermal flow simulation
  • CNC machining of heat-resistant mold cavities
  • Mold assembly and cooling piping
  • Mold trial to confirm high-temperature performance
Product Specifications
Item Parameter Description
Mold Type:High-temperature insert mold
Mold Material:H13 S136
Number of cavities:1–12 cavities
Mold Life:600,000–1.2 million cycles
Surface Treatment:Chrome plating, polishing
Applicable Materials:PPS, PA66, PC
Insert Type:High-temperature resistant metal parts
Product Accuracy:±0.015mm
Cooling System:Multi-circuit cooling
Production Cycle:55–75 days
Product Applications
  • Automotive engine parts
  • Industrial electrical components
  • Water heater accessories
Product Advantages
  • Excellent high-temperature resistance
  • High strength and stable bonding
  • Suitable for complex working conditions
FAQ

Q1: Is the mold suitable for high-temperature resistant plastics?

A1: Yes, PPS, PA66, etc. are commonly used.

Q2: Will the insert deform due to heat?

A2: Special alloys are used to avoid deformation.

Q3: Is it suitable for mass production?

A3: Absolutely suitable. Reliable and durable.

Q4: What is the mold lifespan?

A4: Up to one million mold cycles.

Customized Service

We can customize molds and inserts for your high-temperature application.
