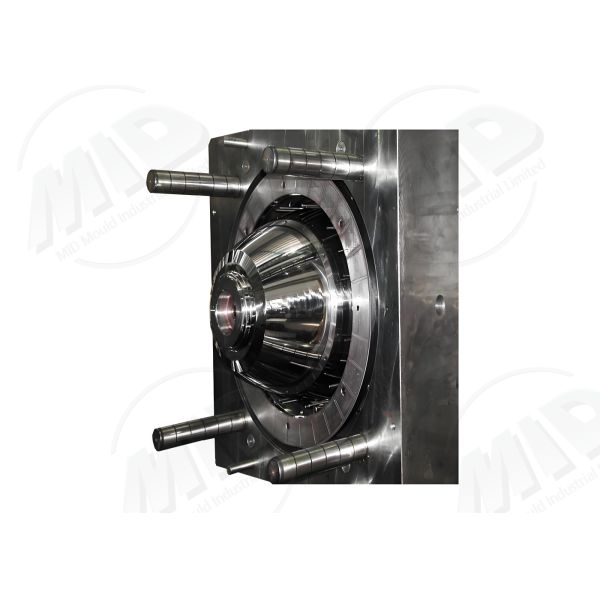

Precision Plastic Molds High Accuracy Injection Tooling Custom Design
Precision Plastic Molds High Accuracy Injection Tooling Custom Design
Specifications
Brand Name :
MID MOULD
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
Delivery Time :
25–45 working days (longer for complex tools)
Certification :
ISO9001,FDA,ISO13485
Price :
USD $3,000–$50,000 per set (depending on complexity)
Packaging Details :
Wooden case + anti-rust oil + protective film + packing list
Supply Ability :
20–35 sets per month, depending on structure
Product :
Vehicle Mould,Household Appliance,plastic injection mold,injection machine mold,Household Product
Mould life :
250000-300000shots,200~1 M available,300,000shots,000 times
Shaping mode :
Plastic Injection Mould,Plastic injection molding,Compression Mould
Cavity :
Multi Cavity,as per client's requirement
Design software :
CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
Mould material :
P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 etc,H13
Application :
Home Appliance,Industrial,Automotive,various range,Machine
Mould base :
non-Standard plastic injection mould,World standard,European standard,LKM.HASCO,HASCO standard
Surface treatment :
sandblasted,Texture,anodizing black,clear painting,Polishing
Size :
as samples/drawings,customized accepted,Customized Size
Mold runner :
Hot&Cold runner you can choose,Hot runner and code runner
Description

Product Technology

Precision plastic molds utilize high-precision CNC machining and mold flow analysis technology to ensure dimensional stability and a smooth surface finish. Imported steel and vacuum heat treatment ensure mold durability and consistency even in high-volume production.

Process Flow

  • Requirements Analysis and Mold Structure Design
  • Mold Flow Analysis to Confirm Gate and Venting Solutions
  • CNC and Wire EDM High-Precision Machining
  • Mold Assembly and Cooling Circuit Optimization
  • Mold Trial Inspection and Delivery Report

Product Specifications

Item Parameter Description
Mold Type Precision Plastic Injection Mold
Mold Material H13, S136, 718H
Cavity 1–24
Mold Life 800,000–1.5 Million Cycles
Part Accuracy ±0.01mm
Surface Treatment Polishing, Chrome Plating, Nitriding
Applicable Materials ABS, PC, PBT, POM
Cooling System Independent High-Efficiency Cooling
Heat Treatment Vacuum Quenching, Nitriding
Product Cycle 45–70 Days

Product Applications

  • Mass Production of High-Precision Parts
  • Molding of Appearance and Transparent Parts
  • Functional Engineering Plastic Products

Product Advantages

  • High Accuracy: ±0.01mm
  • Mold Life: Over One Million Cycles
  • High-Quality Steel Ensures Durability
  • Mold Flow Analysis Reduces Defects

FAQ

Q1: What is the precision control range?

A1: ±0.01mm, suitable for high-precision products.

Q2: What is the typical mold lifespan?

A2: 800,000–1.5 million molds.

Q3: Does it support multi-cavity molds?

A3: 1–24 cavities are supported, customizable.

Q4: Is it suitable for exterior parts?

A4: Yes, surface finish can reach mirror-grade.

Q5: What is the delivery time?

A5: 45–70 days, expedited delivery can shorten lead times.

Customized Services

We can customize the number of cavities, cooling system, hot runner, and surface treatment solutions based on customer requirements.
