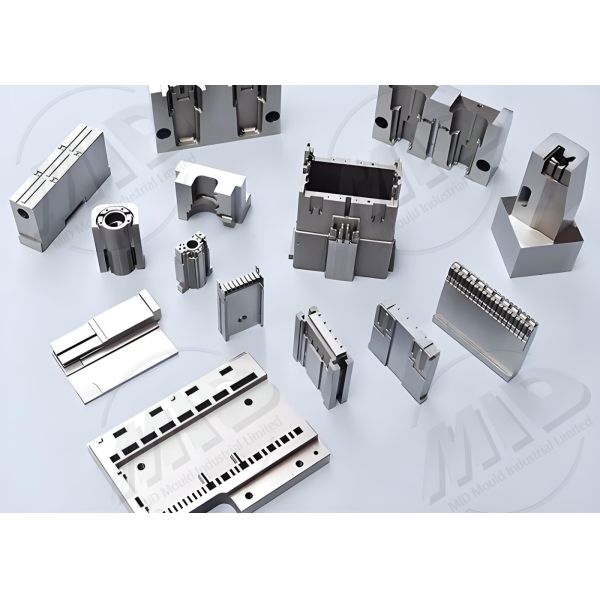

Precision Injection Plastic Mould 800K - 1M Cycles Plastic Injection Mold Tools ±0.01mm Accuracy
Precision Injection Plastic Mould 800K - 1M Cycles Plastic Injection Mold Tools ±0.01mm Accuracy
Specifications
Brand Name :
MID MOULD
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
Delivery Time :
25–45 working days (longer for complex tools)
Certification :
ISO9001,FDA,ISO13485
Price :
USD $3,000–$50,000 per set (depending on complexity)
Packaging Details :
Wooden case + anti-rust oil + protective film + packing list
Supply Ability :
20–35 sets per month, depending on structure
Product :
Vehicle Mould,Household Appliance,plastic injection mold,injection machine mold,Household Product
Mould life :
250000-300000shots,200~1 M available,300,000shots,000 times
Shaping mode :
Plastic Injection Mould,Plastic injection molding,Compression Mould
Cavity :
Multi Cavity,as per client's requirement
Design software :
CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
Mould material :
P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 etc,H13
Application :
Home Appliance,Industrial,Automotive,various range,Machine
Mould base :
non-Standard plastic injection mould,World standard,European standard,LKM.HASCO,HASCO standard
Surface treatment :
sandblasted,Texture,anodizing black,clear painting,Polishing
Size :
as samples/drawings,customized accepted,Customized Size
Mold runner :
Hot&Cold runner you can choose,Hot runner and code runner
Description

Product Processing

Using high-precision machine tools and imported mold steel, these precision molds offer exceptional dimensional accuracy and longevity, making them suitable for producing injection molded parts with tight tolerances.

Process Flow

  1. Customer Product Design Confirmation
  2. Mold Flow Analysis and Optimization Solution
  3. High-Speed ​​Machining and EDM
  4. Mold Assembly and Cooling Design
  5. Mold Trial Inspection and Delivery

Product Specifications

Item Parameter Description
Mold Type Precision Injection Mold
Mold Material S136, H13, 718H
Cavities 1–12
Mold Life 800,000–1,000,000 cycles
Part Accuracy ±0.01–0.02mm
Surface Treatment Polishing, Nitriding, Chrome Plating
Applicable Materials ABS, PC, PBT, PPS
Cooling System High-Efficiency Cooling Cycle
Heat Treatment Vacuum Heat Treatment
Production Cycle 45–70 Days

Product Applications

  • Precision Parts Production
  • High-Precision Functional Parts
  • Engineering Plastic Products

Product Advantages

  • ±0.01–0.02mm Precision
  • Million-mold lifespan
  • Strong stability
  • Efficient cooling system

FAQ

  • Q1: What mold materials are suitable? A1: ABS, PC, PBT, PPS, etc.
  • Q2: Mold lifespan A2: 800,000–1,000,000 mold cycles
  • Q3: Hot runner support available? A3: Yes, customizable upon request.
  • Q4: Production cycle time available? A4: 45–70 days
  • Q5: After-sales service available? A5: Full maintenance and support provided.

Customized service

Cooling method, number of cavities, surface finish, and automation interface can be customized upon request.
