High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini
Specifications
Brand Name :
LIZHU
Model Number :
LZ-LB
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton Packing
Name :
Plastic Vertical Plastic Injection Molding Machine
Max Clamping Force :
550Tons
Machine Weight :
Different
Max Volume :
6000Grams
Machine Color :
Customized
Max Mold Size :
2.5*2.5Metre
Description

Plastic Injection Molding Machine For High Precision Insert Production

1. Description:

  • We can supply horizontal clamping and vertical Injection Moulding Machine due to our current technical expertise and vast industry experience.
  • The offered molding machine is built using cutting-edge technology and high-quality components under the strict supervision of our expert employees.
  • This machine is used to create molds in a variety of industries.
  • We offer this molding machine to our clients at exceptional pricing and in a range of configurations.

2. Sepcifications:

Specification
Model
Unit
LZ-LB
Injection Unit
Screw diameter
mm
Ф36
Ф42
Maximum injection pressure
Kg/cm2
2074
1523
Theoretical shot volume
cm3
162
221
Maximum shot weight(PS)
g/Oz
150 / 5.3
203 / 7.1
Injection rate
cm3/sec
88
120
Clamping Unit
Clamping Force
ton
120
Rotary Table Diameter
mm
1380
Tie bar distance
mm
-
Minimum mold thickness
mm
200/300 (customization)
Opening stroke
mm
300
Open daylight
mm
500/600 (customization)
Ejector force
T
4.0
Ejector stroke
mm
75
Others
Pump motor power
Kw
15
Hydraulic system pressure
Kg/cm2
140
Barrel heating power
Kw
7
Total Wattage
Kw
22
Oil Tank Capacity
L
650
Machine Weight (approx.)
T
6.9
Machine dimensions(approx.)
m
2.6×1.8× 3.9

3. Machine Features:

1) Design of vertical clamping and horizontal injection.

2) Capable of containing large-scale molds with longer opening strokes and heavy injection weights.

3) Use the insert molding process on large-scale items.

4. Pictures:

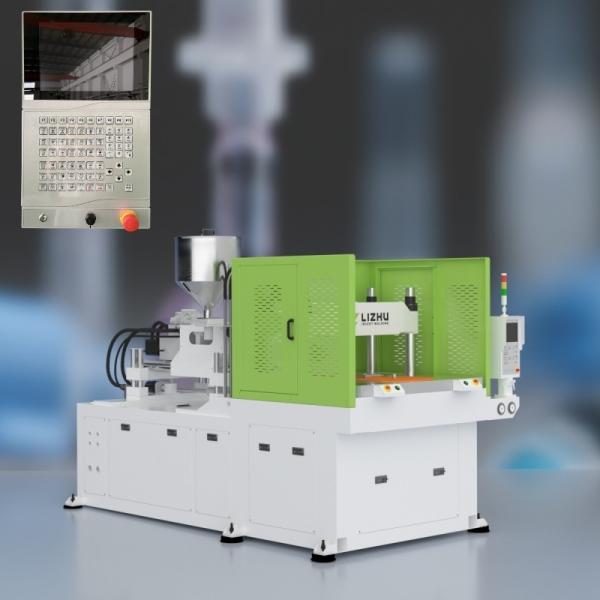

High Precision Insert Plastic Vertical Injection Molding Machine 550 Ton Mini

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
