Specifications
Brand Name :
LIZHU
Model Number :
LZ-D
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton packing
Name :
Vertical Injection Molding Machine
Max Clamping Force :
200 Tons
Injection Weight :
44-780Grams
Injection Speed :
500mm/s
Condition :
New One Only
Customized :
Avaliable
Description

All Electric Vertical Injection Moulding Machine 2 Platen

1. Description:

High repeatability and precision - the electric units are digitally controlled, making the production process predictable, and positioning accuracy is extremely high (less than 0.0001 in). Energy efficiency - energy is only used when the machine moves, which can save 30% to 70% of energy. Faster and more efficient process due to the ability to move in parallel. Shorter start-up times because there are fewer components and fluids (oil) that need to warm up. Usually quieter operation (less than 65 dbA).

2. Sepcifications:

Type Unit LZ-1600/LZ-1600D/LZ-1600-2R
Injection unit Screw dia. mm 50 55 60
Injection pressure kg/cm2 2150 1777 1493
Theoretical shot volume cm3 392 475 565
Shot weight g 350 420 500
oz 12.2 14.8 17.6
Injection rate cm3/sec 235 284 339
Screw stroke mm 200
Screw rate rpm 0-350
Injection speed mm/s 120
Temperature section(zone) - 5
Clamping unit Clamping force tons 160
Opening force tons 20
Fixed table Table size mm 1060*800
Tie bar mm 760*500
Single sliding table size mm 750*750
Rotary table Table size mm 1600
Max mold size mm 750*600
Min. mold thickness mm 350
Opening stroke mm 350
Opening daylight mm 700
Max. mold weight kg 1500
Electric unit Ejector force tons 6
Ejector stroke mm 50 100
Max. pressure kg/cm2 140
Pump output volume liters/min 180
Oil tank volume liters 480(Fixed table)/560(sliding.rotary)
Cooling water volume liters/hr 80
Servo Motor kw 37 48
Heater kw 16
Total wattage kw 53 53 64
Others Machine weight tons 7.9 8.5 11
Machine size m L2.9*W1.8*H4.8 L3.3*W1.8*H4.9 L3.4*W2.4*H4.9

3. Machine Features:

1) Vertical clamping, vertical injection.

2) available in every possible size range and for a huge variety of applications.

3)Typically higher injection speeds (up to 800 mm/sec) and even faster clamp motion

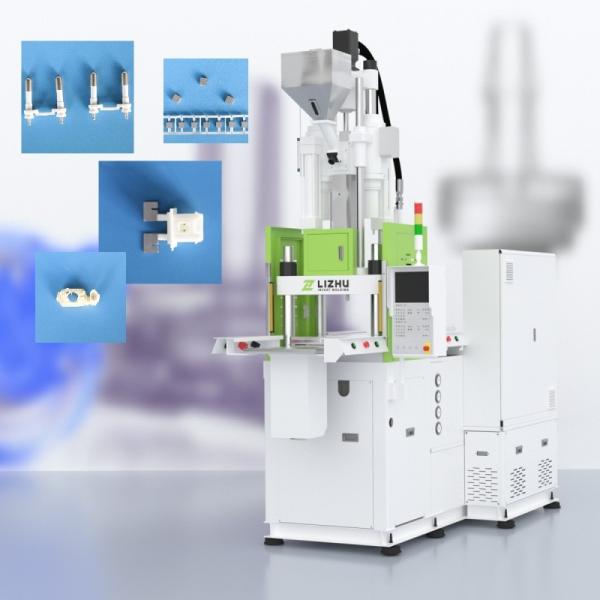

4. Pictures:

Vertial Injection Molding Machine With Single Sliding Injection Moulding Machine

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5)When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
