Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Specifications
Brand Name :
LIZHU
Model Number :
LZ-D
Certification :
CE,CSA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton packing
Name :
Precision Injection Molding Machine
Clamping Force :
45-2000tons
Injection Weight :
150Grams
Injection Speed :
330mm/s
Automation :
Automatic
Brand :
LIZHU
Description

Computer Operation Vertical Plastic Injection Molding Machine

1. Description:

Vertical injection molding machines perform the same as standard horizontal machines, although they are orientated to operate on the vertical axis. This machine is available in hydraulic, electric, and hybrid configurations to fulfill a variety of customer needs. Because of their position, vertical injection molding machines require extremely minimal floor area. Vertical injection molding machines are ideal for insert molding applications. Before over molding, components can be simply put into the mold and kept in place by gravity. Vertical injection molding machines frequently include a shuttle or rotary table, which allows loading and demolding to occur inside the machine's cycle time.

2. Sepcifications:

Item Unit LZ-D
Injection Unit Screw Diameter mm Ø25 Ø28 Ø30
Injection Pressure Kg/cm2 2131 1312 1215
Theoretical Shot Volume cm3 214 263 309
Shot Weight(PS) g 171 256 247
oz 6.3 7.3 9.5
Injection Rate cm3/sec 167 225 217
Screw Stroke mm 135
Screw Rate rpm 0-250
Injection speed mm/s 122
Nozzle Stroke mm 380
Clamping Force Clamping Force tons 30
Opening Force tons 15
Sliding Plate Size mm 550*533
Plate Size mm 585*1280
Rotary Table Diameter mm -
Sliding Table Stroke mm -
Max Mold Size mm 595*360
Min Mold Thickness mm 300(50+50)
Opening Stroke mm 230
Max Opening Stroke mm 550(50+50)
Position tolerance mm ±0.02
Ejector Unit Ejector Stroke mm 50/113
Ejector Force Tons 7
Ejector Diameter mm 20
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 155
Cold Water Volume Liters/min 163
Servo Motor kw 20
Heating Volume kw 15
Total Wattage kw 30
Others Machine Weight tons 5.2
Machine Size m -

3. Machine Features:

1) The clamping unit is made up of a screw rod and nuts; lowering the clamping cylinder stroke improves performance.

2) The working height is reduced in comparison to traditional designs.

3)Applicable to all insert components.

4. Pictures:

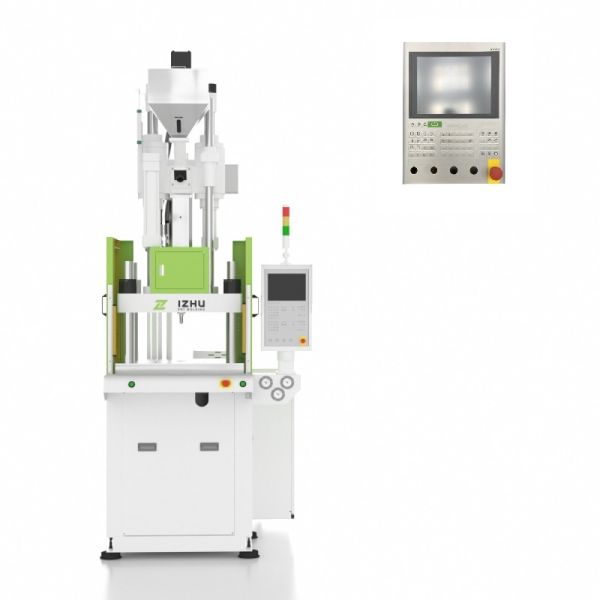

Precision Small Vertical Injection Molding Machine Computer Operation All Electric

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5)When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
