Plastic Container Making Machine Supplier From China With CE
Plastic Container Making Machine Supplier From China With CE
Specifications
Brand Name :
LIZHU
Model Number :
LZ-YD
Certification :
CE,CSA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton packing
Name :
Precision Injection Molding Machine
Max Clamping Force :
2000tons
Injection Weight :
0-150Grams
Injection Speed :
280mm/s
Max Mold Size :
595*360mm
Type :
Vertical injection
Description

Plastic Container Making Machine Supplier From China With CE

1. Description:

Plastics (such as PPT, PA6, LCP, POM, PC, PVC, TPE, TPU, TPR, PU, and others) are specifically processed in insert molding.
The computer controls the specific pressure and flow, resulting in more efficiency and precision than typical vertical injection molding machines.
It employs a direct pressure type mother-type clamping cylinder design that enables quick mold locking and low pressure slow speed mold. When the mold becomes aberrant, it will spontaneously open to protect itself.

To accommodate the injection molding qualities of engineering plastics, special machine weight, high injection pressure, and a fast rate of fire are used. Injection molding of tiny pieces is a simple procedure.

2. Sepcifications:

Item Unit LZ-C
Injection Unit Screw Diameter mm Ø25 Ø28 Ø30
Injection Pressure Kg/cm2 2131 1312 1215
Theoretical Shot Volume cm3 214 263 309
Shot Weight(PS) g 171 256 247
oz 6.3 7.3 9.5
Injection Rate cm3/sec 167 225 217
Screw Stroke mm 135
Screw Rate rpm 0-250
Injection speed mm/s 122
Nozzle Stroke mm 380
Clamping Force Clamping Force tons 100
Opening Force tons 15
Sliding Plate Size mm 550*533
Plate Size mm 585*1280
Rotary Table Diameter mm -
Sliding Table Stroke mm -
Max Mold Size mm 595*360
Min Mold Thickness mm 300(50+50)
Opening Stroke mm 230
Max Opening Stroke mm 550(50+50)
Position tolerance mm ±0.02
Ejector Unit Ejector Stroke mm 50/113
Ejector Force Tons 7
Ejector Diameter mm 20
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 155
Cold Water Volume Liters/min 163
Servo Motor kw 20
Heating Volume kw 15
Total Wattage kw 30
Others Machine Weight tons 3.2
Machine Size m -

3. Machine Features:

Equipped with an ejector device to help remove finished products and save production time.

Dual-proportional computer control enabling simple operation and precise and smooth injection molding.

For easy troubleshooting, an automatic safety warning system is included.

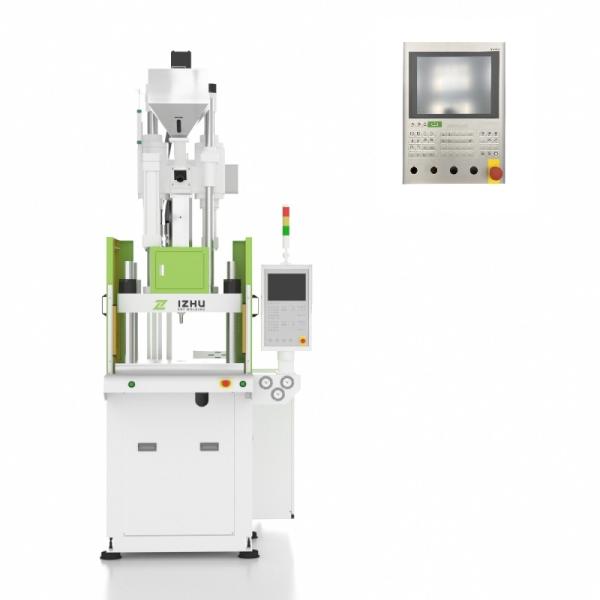

4. Pictures:

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5)When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
