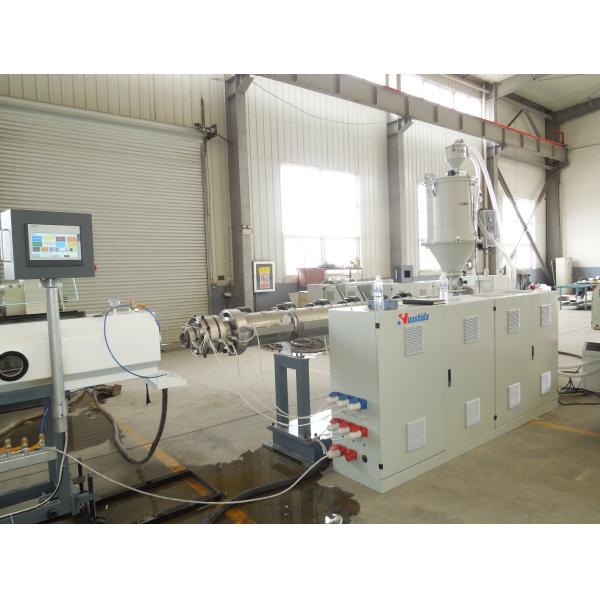

HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
Specifications
Screw :
Single-Screw
Feeding Mode :
One Feed
Extruder :
Single Screw Extruder
Assembly Structure :
Integral Type Extruder
Transport Package :
Wooden Cases and Pallets
Wall Style :
Hollow Wall Structured
Computerized :
Computerized
Pipe Range :
200-3000mm
Brand Name :
huashida
Certification :
CE, ISO9001:2008, QS, GMP
Place of Origin :
china
MOQ :
1
Price :
huashida
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100set a year
Delivery Time :
90 days
Packaging Details :
Standard packaging
Engagement System :
Full Intermeshing
Inverter :
ABB, Danfos, Eurotherm
Motor :
AC or DC
Specification :
CE, ISO9001: 2008, SGS
Exhaust :
Exhaust
Converter :
Eurotherm
Screw Channel Structure :
Deep Screw
Automation :
Automatic
Description
HDPE Hollow Wall Spiral Pipe Extruding Machine
Hollow Wall Spiral Pipe Extrusion Line Plastic Machinery
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
Features of HDPE Large Diameter Hollow Wall Winding Pipe
  • High Ring Stiffness
  • High Brunt Intensity and low weight
  • Good creep deformation resistance
  • Outer pressure resistance
  • Erosion resistance (such as acid, alkali and salt etc.)
  • Long life of approximate 50 years. No pollution and so on
Application of HDPE Large Diameter Hollow Wall Winding/Coil Pipe
It has been widely used for sewerage and drainage in city, it will replace the cement pipe, cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction which makes it wide foreground and market potential.
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
Features of HDPE Large Diameter Hollow Wall Winding Pipe Extrusion Line
PE Pipe Production Line
The function of extruding PE/PP pipe or PE/PP Square Shaped Pipe (according to your customer requirement). It includes the following equipment:
  • SJ series Single Screw Extruder
  • Die Head (outer mold and mandrill)
  • Calibration Sleeve
  • Vacuum Cooling Tank
  • Spray Cooling Tank
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
Forming Machine of HDPE Large Diameter Hollow Wall Winding Pipe
The function of it can produce qualified HDPE Large Diameter Hollow Wall Winding Pipe. It includes as below equipment:
  • SJ series Single Screw Extruder
  • Die Head
  • Spiral forming unit
  • Cutting Unit
  • Stack Unit
  • PLC control system with touch screen
1. HDPE Large Diameter Hollow Wall Winding Pipe Production Line designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit.
2. 1st single screw extruder for square shaped pipe and 2nd single screw extruder for melting glue material: Extrusion theory for low energy consumption and low temperature plastication compliant with material characteristic (heavier molecular weight), Unique screw design of distance-changing and separation of solid material and melting material, Unique design with slotting barrel ensures large increasing of extrusion capacity. Special design of high mix-melting ensures through low temperature plastication.
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
3. Spiral forming unit: Adopts advanced multi-axes transmission box with feature of high transmission force and stable running performance. Unique design of composite die-head, rotational molding after combined feed, and two sets of extruder extrude PE for winding pipe, High quality of winding pipe produced by adopting the unique winding process for pipe forming, The glue extruder can be moved in up and down, left and right direction. PLC computer control system with touch screen interface can realize automatic and reliable operation.
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
4. Cutting part: Saw cutting with desired length. PLC computer control system with touch screen interface can realize automatic and reliable operation.
5. PLC computer control system with touch screen: With super high speed and large storage capacity, Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously, Separately controlling two extruder and winding unit in tandem with two touch screens.
Technical Specifications
Model Pipe Diameter (mm) Extruder Speed of forming Max. output Installed Power Dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6
