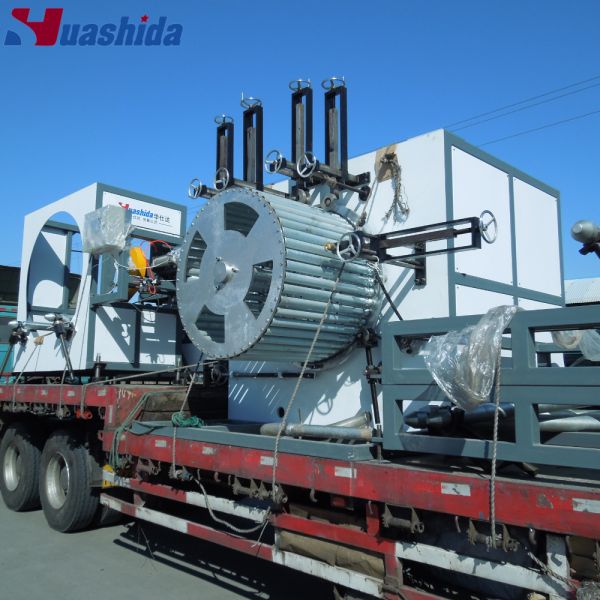

Huashida provides a high-performance extrusion line for producing HDPE hollow wall winding pipes, with a maximum pipe diameter of up to 4000mm. The system is capable of producing large diameter winding pipes and mine-grade anti-static ventilation pipes. It adopts specialized pipe connection fittings such as electric hot melt belts and heat shrink sleeves, ensuring easy installation and cost-effective construction.

• High ring stiffness and excellent impact strength
• Lightweight construction
• Superior resistance to creep deformation and external pressure
• Excellent corrosion resistance against acids, alkalis, salts, etc.
• Service life of over 50 years

These pipes are widely used in municipal sewage and drainage systems, and are ideal replacements for traditional cement and cast iron pipes due to their low installation cost, easy operation, and fast connection.

• Municipal sewer and drainage systems
• Building outdoor drainage
• Buried farmland drainage
• Industrial wastewater discharge
• Road and square drainage
• Sewage treatment plants
• Sports field drainage
• Power and telecom cable conduit systems

• 1* Single screw extruder with vacuum loader & hopper dryer
• 1* Square tube extrusion die head & mold
• 1* Vacuum calibration table
• 1* Spray cooling water tank
• 1* Hauling machine
• 1* Second single screw glue extruder with loader & dryer
• 1* Melt adhesive extrusion die head
• 1* Spiral winding forming machine
• 1* Cutting unit
• 1* Stacker
• 1* PLC automatic control system

Raw material feeding → Material drying → Square pipe extrusion → Spiral die forming → Strip calibration → Strip cooling → Strip hauling → Glue extrusion → Spiral winding forming → Water cooling → Cutting → Stacking → Final inspection & packing
