Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Specifications
Screw :
Single-Screw
Pipe Diameter :
200-3000mm
Brand Name :
HUASHIDA
Model Number :
200-3000MM
Certification :
CE
Place of Origin :
QINGDAO,CHINA
MOQ :
1
Price :
US$40,000.00 - 160,000.00
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
50 Units/Year
Delivery Time :
60DAYS
Packaging Details :
Standard Export Packing
Type :
Pipe Extruder
Application :
Industrial Sewage, Road Drainage
Description

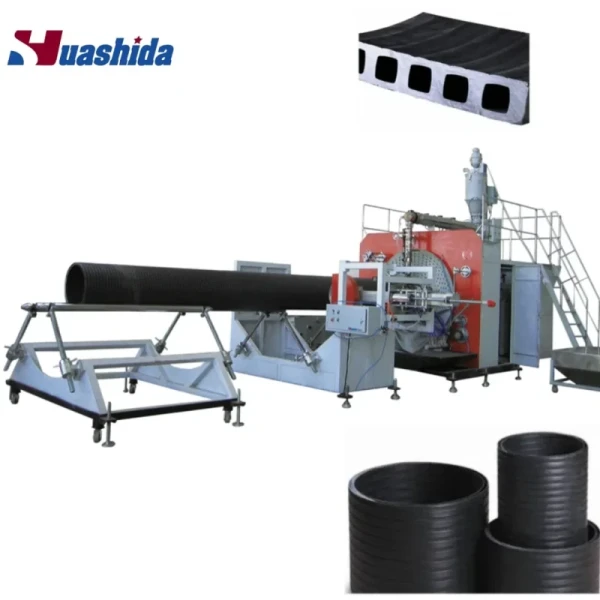

Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Huashida Machinery delivers fully automated large-diameter hollow pipe winding production lines, engineered with PLC control systems.
Production process: The high-density polyethylene is first made into a rectangular pipe embryo by winding molding process, and then formed by winding welding.

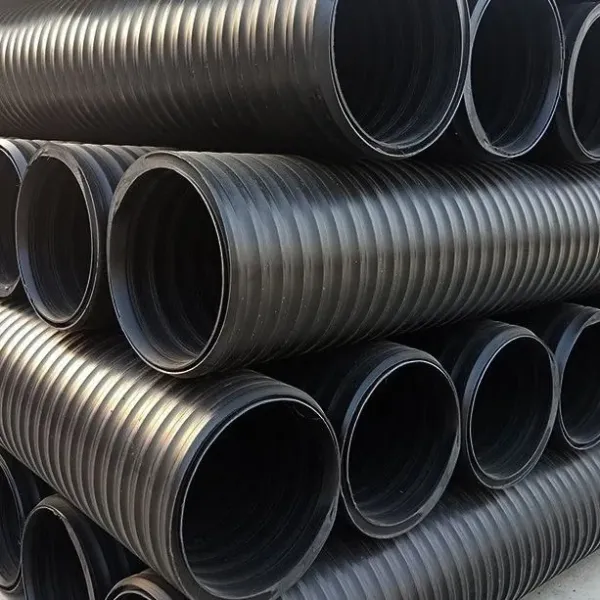

Structural features: The middle of the pipe wall is hollow and the ring stiffness is high.No pollution,Extended service life exceeding 50 years.Simple installation and operation.
Diameter range: Not limited by the pipe diameter, large-diameter pipes can be produced, up to DN3000.
Connection method: electric hot melt tape, heat shrink sleeve connection is mainly used.
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line

Features
Features of Production Line:
1. Large caliber spiral drainage Pipe Production Line is designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit.

2.1st single screw extruder for square shaped pipe and 2nd single screw extruder for melting glue material: Extrusion theory for low energy consumption and low temperature plastication compliant with material characteristic (heavier molecular weight), Unique screw design of distance-changing and separation of solid material and melting material, Unique design of loading system ensures large increasing of extrusion capacity. Special design of high mix-melting ensures through low temperature plastication.

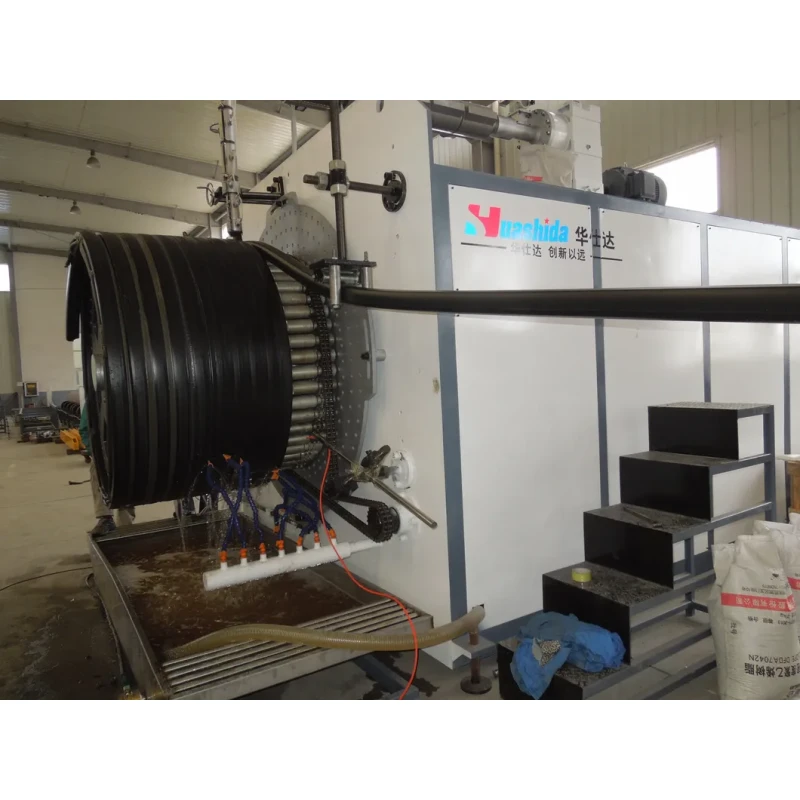

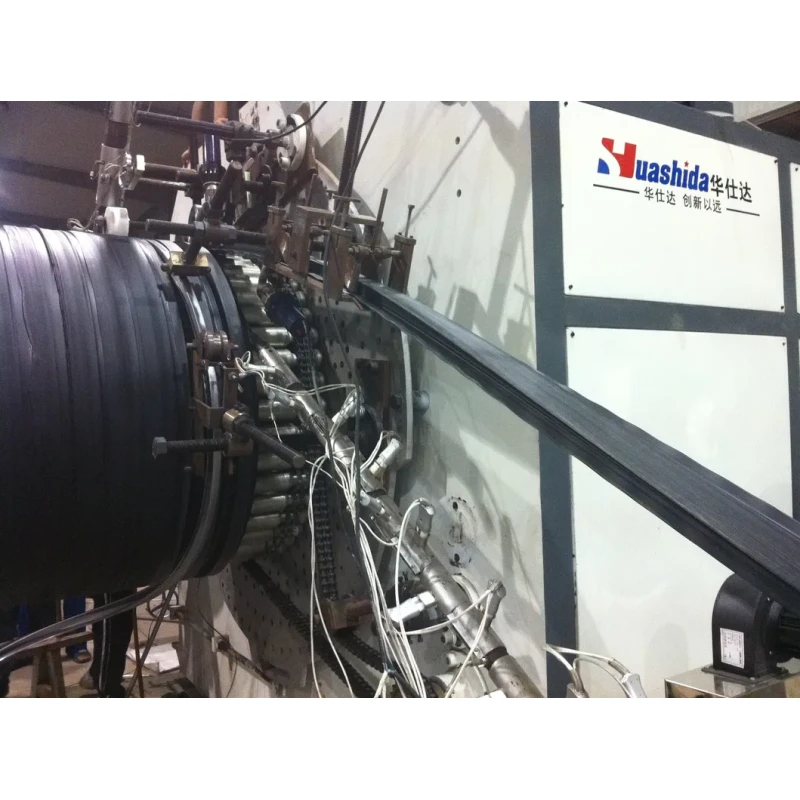

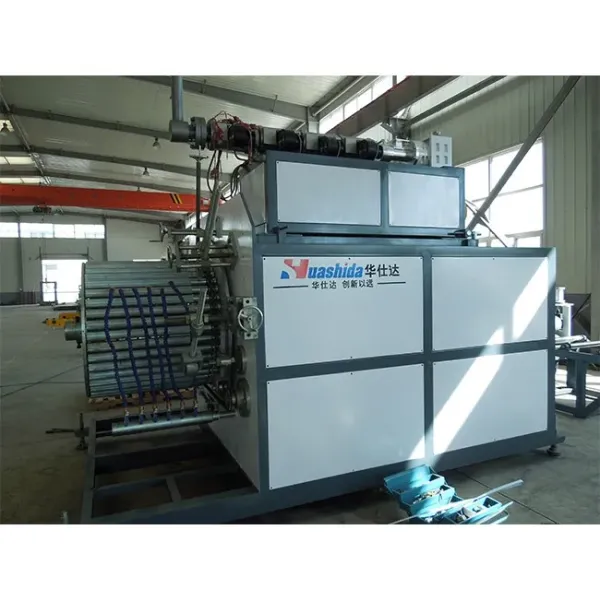

3. Spiral forming unit: Adopts advanced multi-axes transmission box with feature of high transmission force and stable running performance. Unique design of composite die-head, rotational molding after combined feed, and two sets of extruder extrude PE for winding pipe, High quality of winding pipe produced by adopting the unique winding process for pipe forming, The glue extruder can be moved in up and down, left and right direction. PLC computer control system with touch screen interface can realize automatic and reliable operation

4. Cutting part: Saw cutting with desired length. OMRON or MITSUBISHI PLC computer control system with touch screen interface can realize automatic and reliable operation.

5. PLC computer control system with touch screen: With super high speed and large storage capacity, Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously, Separately controlling two extruder and winding unit in tandem with two touch screens.
Product Parameters


Style Diameter
(mm)		 Extruder Extrusion speed
Meter		 Capacity (Kg/h) Dimension (m)
Style Total Power
(KW)
SKRG1200 300-1200 SJ65× 30 230 1-12 320 26× 18× 5.0
SKRG2200 1000-2200 SJ90× 30 380 0.5-5 650 28× 19× 5.0
SKRG3000 1600-3000 SJ90× 30 390 0.3-3 800 48× 26× 6.0

Application scenarios

It has been widely used for sewerage and drainage in city, it will replace the cement pipe, cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential

Detailed Photos


Durable HDPE Hollow Wall Corrugated Pipe Machine Production LineDurable HDPE Hollow Wall Corrugated Pipe Machine Production LineDurable HDPE Hollow Wall Corrugated Pipe Machine Production LineDurable HDPE Hollow Wall Corrugated Pipe Machine Production LineDurable HDPE Hollow Wall Corrugated Pipe Machine Production LineDurable HDPE Hollow Wall Corrugated Pipe Machine Production LineDurable HDPE Hollow Wall Corrugated Pipe Machine Production Line
Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line

International Trading show

Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line

Certifications

Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line

Clients case


Durable HDPE Hollow Wall Corrugated Pipe Machine Production Line
