Specifications
Brand Name :
HUASHIDA
Model Number :
200-1000mm
Certification :
CE, ISO9001:2008
Place of Origin :
Qingdao, China
MOQ :
1
Price :
US$140,000.00 - 200,000.00
Payment Terms :
L/C,D/P,Western Union,T/T
Supply Ability :
30 Set/Year
Delivery Time :
60DAYS
Packaging Details :
Standard Packing
Material :
PP/HDPE
Number of Layers :
Double Layer
Max Speed :
6m/Min,1.2m/Min
Field :
Drainage/Water Supply/Sewage Discharge/Agricultura
Description

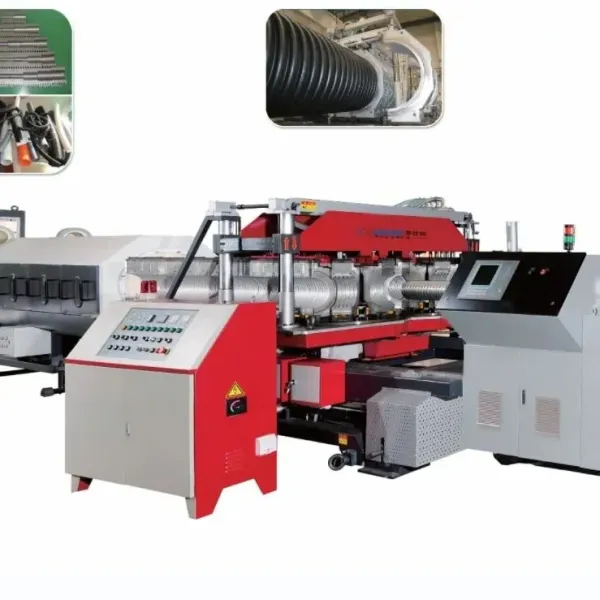

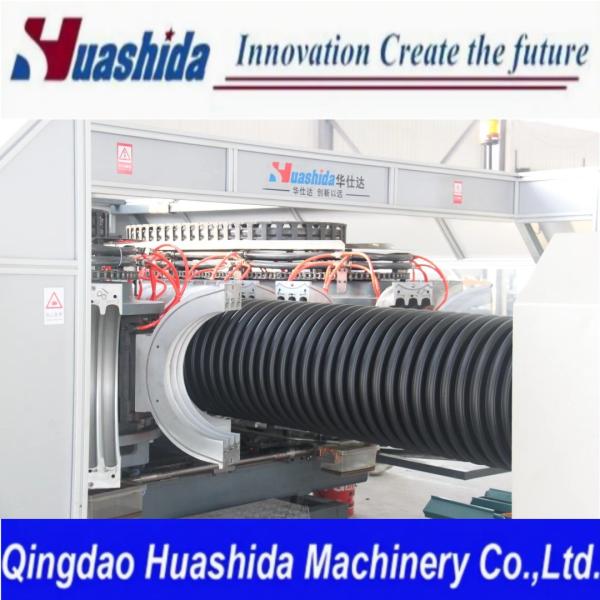

High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line for Drainage Water




Product Description
High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water Supply
Double Wall Corrugated Pipe Production Line is a new type of high-speed water-cooled corrugated pipe production line developed and designed by ourselves based on advanced foreign technology. Mainly using polypropylene (PP) or high-density polyethylene (HDPE) as raw materials. Production of single and double wall corrugated pipes. Due to its unique structure, this pipe has the advantages of light weight, good impact resistance, strong corrosion resistance, and cold and heat resistance. It is widely used in urban drainage (water supply), geographical infiltration, construction water supply and drainage, PEF, wire and cable laying, bridge steel cable sheath, agricultural irrigation, and other fields.



Process Flow
Loader → Extruder → Corrugator → Cooling System → Cutting Machine

Features
The die frame utilizes a sealed water-cooling structure, with the left and right modules moving within a closed curve.

The die frame utilizes a gear-driven mechanism, offering advantages such as automatic wear compensation, smooth operation, low noise, long service life, and high synchronization.

The uniquely designed circulating water circuit provides high reliability and effective cooling. The water in the circuit minimizes impact force, enhancing the reliability of continuous pipe production and ensuring the quality of the pipe surface.

Product Parameters
pipe
Extruder Corrugator Maximum speed
style DN Model Capacity series mold block qty m/min
PP/PE double wall corrugated pipe ID-200-600 SJ-90*36/SJ-75*36 600kg/h DWCP-600 36 6
ID 600-1000 SJ-120*36/Sj-90*36 1000kg/h DWCP-1000 39 12

Double-wall corrugated pipe production line features:
High degree of automation
High cooling efficiency
Low energy consumption
Customized production
High production efficiency
Intelligent operation
One-step pipe forming

High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water SupplyHigh-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water Supply
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html


HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
