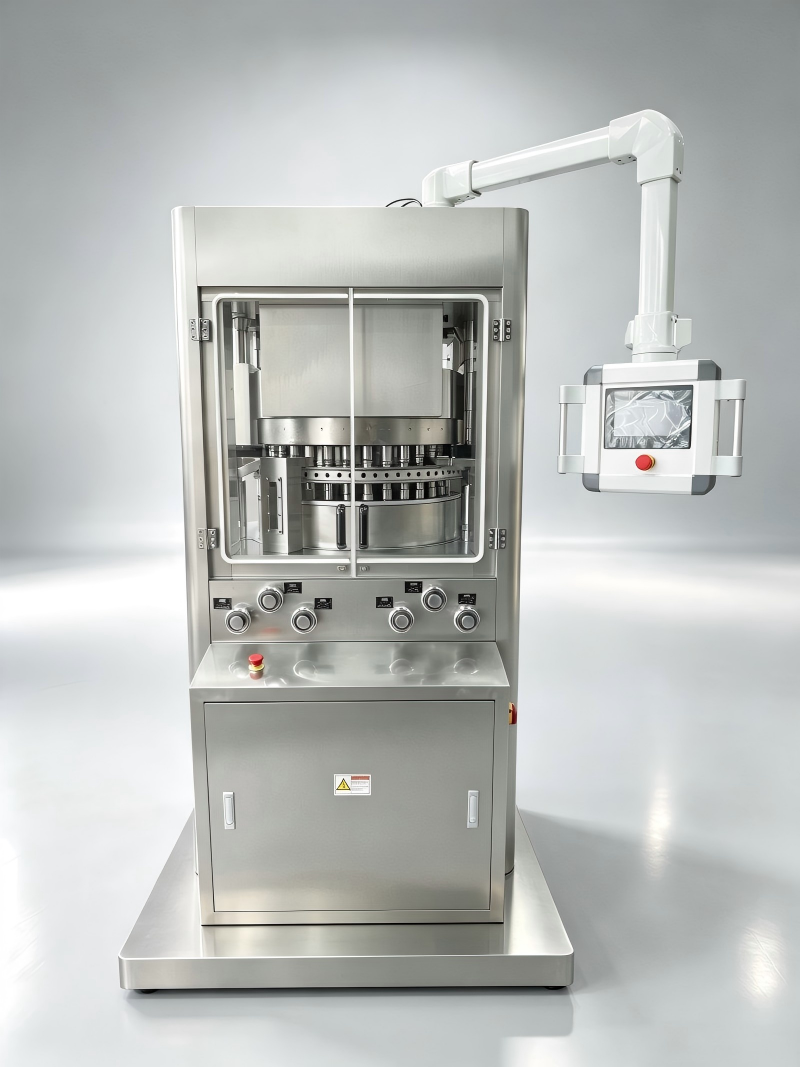

200KN Rotary Tablet Compression Machine Veterinary Large Tablet Press
200KN Rotary Tablet Compression Machine Veterinary Large Tablet Press
Specifications
Delivery Time :
30 business days
Features :
Veterinary Medicine Tablet Press
Model Number :
TVD-23
Capacity :
44,000 pcs/hour
MOQ :
1 Set
Packaging Details :
Fumigation-free plywood export packaging
Machine outlet :
Double sides
Supply Ability :
10 Sets per Month
Machine net weight :
5500kg
Payment Terms :
T/T
Electrical configuration :
German brand touch screen and PLC, ABB motor
Certification :
CE
Maximum tablet length :
56mm
Brand Name :
TIWIN INDUSTRY
Number of punches :
23
Place of Origin :
Shanghai China
Maximum tablet thickness :
10mm
Description
200KN Compression Force Veterinary Medicine Tablet Press
The veterinary medicine tablet press is a specialized equipment designed for compressing various types of powdered veterinary tablets into tablets of uniform size and weight. It is widely used in veterinary pharmaceutical manufacturing for mass production of tablets used in treating animals.
Technical Specifications
Model TVD-23
Number of punch stations 23
Max. Main pressure (kn) 200
Max. Pre pressure (kn) 200
Max. tablet diameter (mm) 56
Max tablet thickness (mm) 10
Max. Filling depth (mm) 30
Turret speed (rpm) 16
Capacity (pcs/hour) 44,000
Main motor power (kw) 15
Machine dimension (mm) 1,400 x 1,200 x 2,400
Net weight (kg) 5,500
Key Highlights
  1. Fully closed working room with safety interlock function
  2. Both sides equipped with large area force feeder for big and thick tablets
  3. Main pressure and pre-pressure are 200KN
  4. Punches seal to avoid powder pollution
  5. German brand touch screen and PLC, ABB motor keeps compression stable and reliable
  6. Large punch shaft to handle large pressure for big size tablets
  7. Two hoppers and double sides discharge, capacity up to 44,000 tablets per hour
  8. Automatic oil lubrication system guarantees continuous working and ensures long-term service for components
  9. Large area dust collection for both sides, compatible with dust collector connection
  10. Vacuum feeder optional for automatically loading material
  11. Fast delivery within 35 business days
Product Features
  • Engineered with high-pressure structural design for exceptional performance, safety, and durability
  • Robust structure handles high-viscosity materials and intensive processing requirements
  • Designed to GMP standards for veterinary tablet formulations
  • Structural integrity guarantees longevity and minimizes maintenance
  • High efficiency capable of producing large quantities of tablets per hour
  • Precision control ensures accurate dosage and consistent tablet hardness, weight, and thickness
  • Versatile for various formulations including antibiotics, vitamins, and veterinary treatments
  • Durable construction from stainless steel, compliant with GMP standards
  • Sealed transmission system in oil tank prevents contamination and reduces wear
  • Transparent protective cover for clear observation of tablet pressing process
  • Side panels fully open for easy cleaning and maintenance
  • Convenient operation with stable rotation, safety, and accuracy
  • Mechanical and electrical integration with touch screen PLC control
  • Totally enclosed stainless steel outer shell and inner table prevents cross contamination
