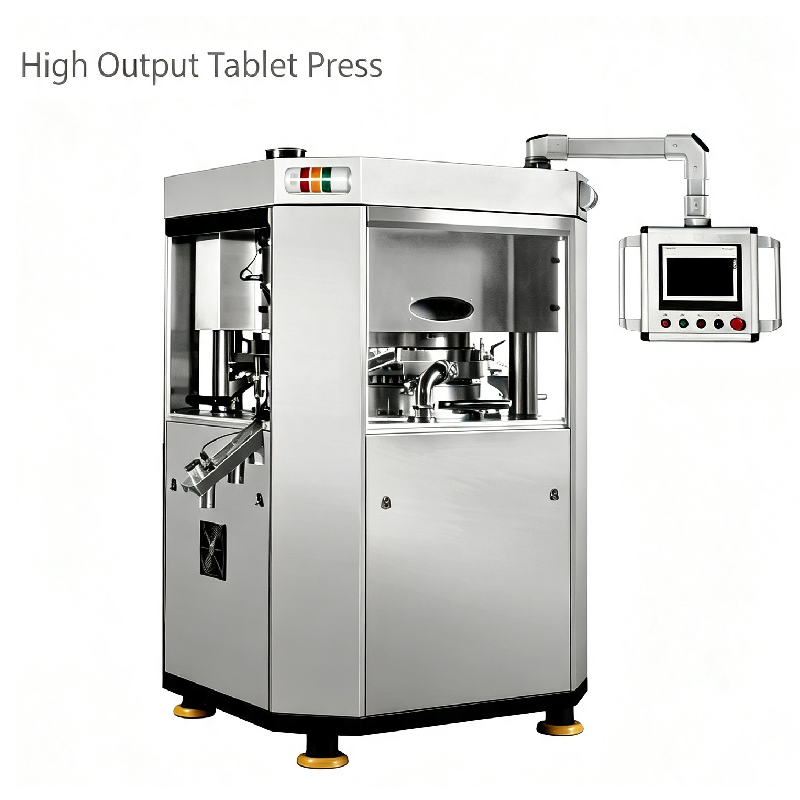

GMP SUS316 45 Station Double Sided Rotary Tablet Press 100KN Hydraulic 405000 Pcs H For Large Scale Pharma Production
GMP SUS316 45 Station Double Sided Rotary Tablet Press 100KN Hydraulic 405000 Pcs H For Large Scale Pharma Production
Specifications
Place of Origin :
Shanghai,China
MOQ :
1 Set
Payment Terms :
T/T
Punch Type :
EUD
Max Tablet Diameter :
25mm
Powersupply :
220V/380V, 50Hz/60Hz
Max Output :
405,000 pcs/h
Supply Ability :
20 Sets per Month
Delivery Time :
20 business days
Voltage :
380V, 50Hz (customizable)
Model Number :
TEU-H45
Certification :
CE
Max Turret Speed :
75 rpm
Customizationoptions :
Available based on product and packaging requirements
Industry :
Pharmaceutical,food,nutrition
Afrer sale service :
24hours in 7 days online support
Max Main Pressure :
100KN
Userinterface :
Touchscreen HMI
Max Pre-Pressure :
20KN
Maintenance :
Easy maintenance with modular design
Brand Name :
TIWIN INDUSTRY
Packaging Details :
Fumigation-free plywood case with vacuum-packed anti-rust protection
Number of Punches :
45
Description

GMP SUS316 45 Station Double Sided Rotary Tablet Press for Large Scale Production

Purpose-engineered for regulated pharmaceutical manufacturing at scale, this 45 station double sided tablet press combines GMP-compliant SUS316 stainless steel construction with industrial-grade production capacity of 405,000 tablets per hour. The isolated rear electrical cabinet and integrated dust collection interface make it natively compatible with cleanroom environments (ISO Class 8 / Grade D and above), while dual discharge channels maximize downstream packaging efficiency.

Technical Specifications

Model TEU-H45
Number of Punches 45
Punch Type EUD (shaft diameter 25.35mm)
Die Diameter 38.10mm
Max Main Pressure 100KN
Max Pre-Pressure 20KN
Max Tablet Diameter 25mm
Max Shaped Tablet Length 25mm
Max Filling Depth 20mm
Max Tablet Thickness 8mm
Max Turret Speed 75 rpm
Max Output 405,000 pcs/h
Main Motor Power 11KW
Machine Dimension 1,250 x 1,500 x 1,926mm
Net Weight 3,800kg

GMP-Compliant Construction

SUS316 Stainless Steel Throughout

  • All material-contact components fabricated from pharmaceutical-grade SUS316 stainless steel
  • Heavy-duty four-column frame with seamless weld construction — no particle traps or crevices
  • Material contact parts certified to EU food safety standards for dual pharmaceutical and nutraceutical use
  • Corrosion resistance validated for acidic formulations and aggressive CIP cleaning agents
  • Mirror-polished contact surfaces with documented surface finish (Ra) measurement reports

Cleanroom-Ready Design

  • Rear independent electrical cabinet fully isolated from tablet compression area
  • Electrical cabinet can be placed outside the cleanroom via wall penetration for Grade C/D suites
  • Large-diameter dust suction interface ready for connection to facility central dust collection
  • Fully enclosed compression zone with interlocked safety guarding
  • Noise level ≤75 dB for operator comfort

Production-Scale Performance

  • 405,000 tablets per hour sustained output — ideal for OTC, and nutraceutical contract manufacturing
  • Double sided dual discharge for seamless integration with two packaging lines simultaneously
  • 100KN hydraulic main compression with 20KN pre-compression for consistent tablet hardness at speed
  • Impeller force feeder ensures ±1% weight variation across 8-hour continuous production runs
  • Intelligent weight monitoring with auto adjustment and defective tablet auto rejection
  • Formula save and recall with multi-level password protection for validated manufacturing

Compliance & Documentation

  • CE certified with full technical documentation package
  • Factory acceptance test (FAT) documentation with compression force calibration certificate
  • Material traceability certificates for all SUS316 contact parts
  • Installation qualification (IQ) and operational qualification (OQ) support available

FAQ

Q: Can this machine be installed in a GMP cleanroom?
Yes. The TEU-H45 is specifically designed for cleanroom installation. The rear electrical cabinet is fully isolated and can be positioned outside the cleanroom via wall penetration. The compression zone is fully enclosed with an integrated dust extraction port for connection to facility HVAC. SUS316 contact surfaces and seamless construction meet GMP requirements for pharmaceutical manufacturing suites.
Q: What's the typical OEE (Overall Equipment Effectiveness) in production?
With proper preventive maintenance and tooling management, customers achieve 85-92% tablets production. Key contributors are the tool-free die installation (minimizing changeover time), force feeder powder utilization (reducing material waste), and intelligent auto-rejection (eliminating manual quality sorting).
