Industrial Salt Tablet Press Machine Compression 100kN Double Pressing Rotary
Industrial Salt Tablet Press Machine Compression 100kN Double Pressing Rotary
Specifications
Model Number :
TSD-29
Features :
Industrial Salt Tablet Compression
Max Pressure :
100 kN
Delivery Time :
20 business days
Voltage :
380V/3P 50Hz
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Userinterface :
Touchscreen HMI
Brand Name :
TIWIN INDUSTRY
MOQ :
1 Set
Maintenance :
Easy maintenance with modular design
Number of Punches :
29
Place of Origin :
Shanghai,China
Packaging Details :
Fumigation-free plywood case with anti-corrosion wrapping for metal components and reinforced frame packaging
Max Tablet Diameter :
25 mm
Certification :
CE
Capacity :
83,500 pcs/h
Description

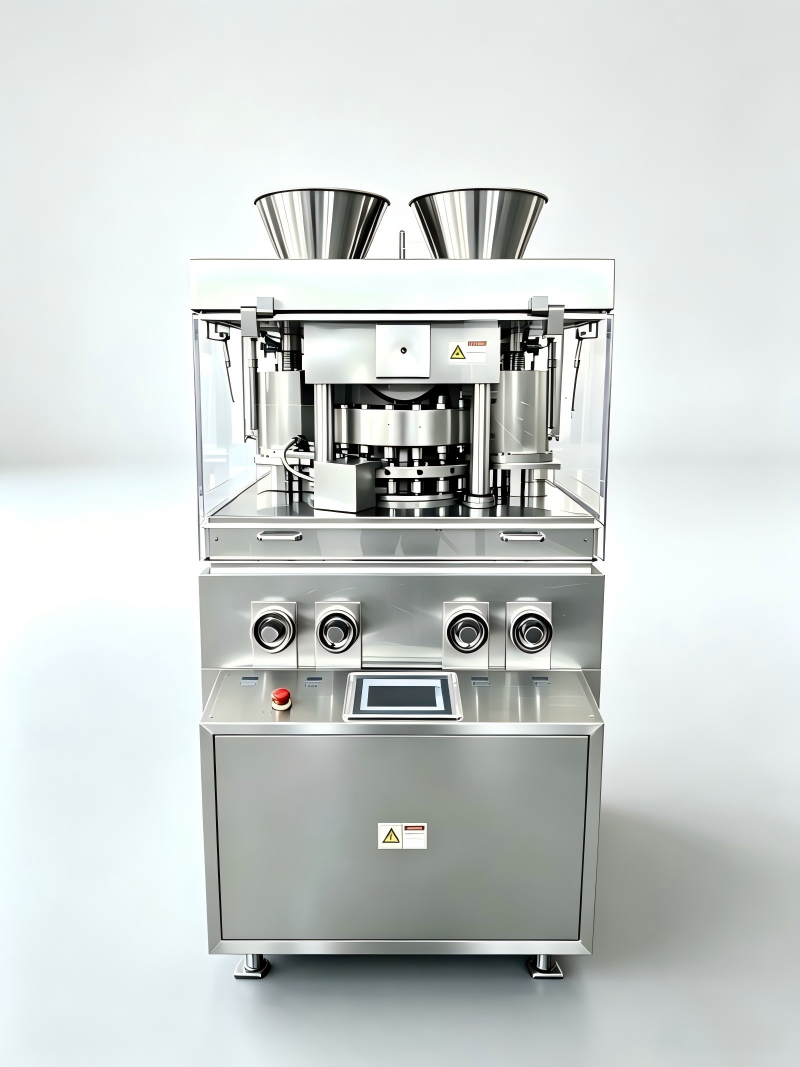

Industrial Salt Tablet Press Machine
The TSD-29 is a double-pressing automatic rotary tablet press specifically engineered for compressing refined salt, industrial salt, and mineral salt into uniform tablets. With 29stations, 100kN double-sided compression, and salt-specific force feeders with stirring shafts, this machine delivers consistent high-density salt tablets for water softening, pool treatment, and industrial applications.
Built on a heavy-duty reinforced frame with SUS304 stainless steel construction, hard chrome plated turret and punches for anti-rust protection, and a fully enclosed pressing room separated from the drive system, the TSD-29 ensures reliable 24/7 operation in demanding salt processing environments.
Technical Specifications
Model TSD-29
Punches and Die 29 sets
Max Pressure 100 kN
Max Tablet Diameter 25 mm
Max Tablet Thickness 12 mm
Max Turret Speed 24 r/min
Max Capacity 83,500 pcs/hour
Voltage 380V/3P 50Hz
Motor Power 7.5 kW
Net Weight 1,400 kg
Key Features
  • Double-sided pressing up to 100kN with 7.5kW main motor for high-density salt tablet formation
  • Salt-specific force feeders with stirring shafts on both sides designed to handle granular salt flow characteristics
  • Hard chrome plated turret and punches provide superior anti-rust protection against corrosive salt materials
  • Heavy-duty reinforced frame with SUS304 stainless steel construction for durability in salt processing environments
  • Dual hoppers with double-sided discharge enable mass production capacity up to 83,500 tablets per hour
  • Advanced dust absorbing system prevents salt powder pollution and maintains clean operating conditions
  • Overload protection with automatic shutdown ensures operator safety and prevents machine damage
  • Fully enclosed pressing room completely separated from drive system to prevent salt contamination
Frequently Asked Questions
What types of salt can the TSD-29 compress?
The TSD-29 processes refined salt, sea salt, industrial salt, pool salt, and water softener salt with proper granularity and moisture content. The salt-specific force feeders handle the unique flow characteristics of granular salt materials.
How does the hard chrome plating protect against salt corrosion?
Hard chrome plating creates a dense, non-porous surface on turret and punches that resists the corrosive effects of salt. This protective layer significantly extends component life compared to uncoated steel in salt processing applications.
What after-sales support is available?
We provide installation guidance, operator training, spare parts with 365-day availability, punch and die customization, remote technical support, and on-site service as required.
