Double Sided Pharmaceutcial High Speed Tablet Press Machine
Double Sided Pharmaceutcial High Speed Tablet Press Machine
Specifications
Model Number :
TEU-H51/65/83
Material :
Product contact area made of SUS316 stainless steel
Features :
Double Sided Pharmaceutcial High Speed Tablet Press Machine
Afrer sale service :
24hours in 7 days online support
Industry :
Pharmaceutical,food,nutrition
Place of Origin :
Shanghai,China
Punch type :
EUD/B/BB
Brand Name :
TIWIN INDUSTRY
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Certification :
CE
Maintenance :
Easy maintenance with modular design
Main pressure and Pre pressure :
100KN & 100KN
Payment Terms :
T/T
Userinterface :
Touchscreen HMI
Delivery Time :
20 business days
Number of punches :
51/65/83
Packaging Details :
Fumigation-free plywood
Capacity :
Up to 717,120 pcs per hour
Description

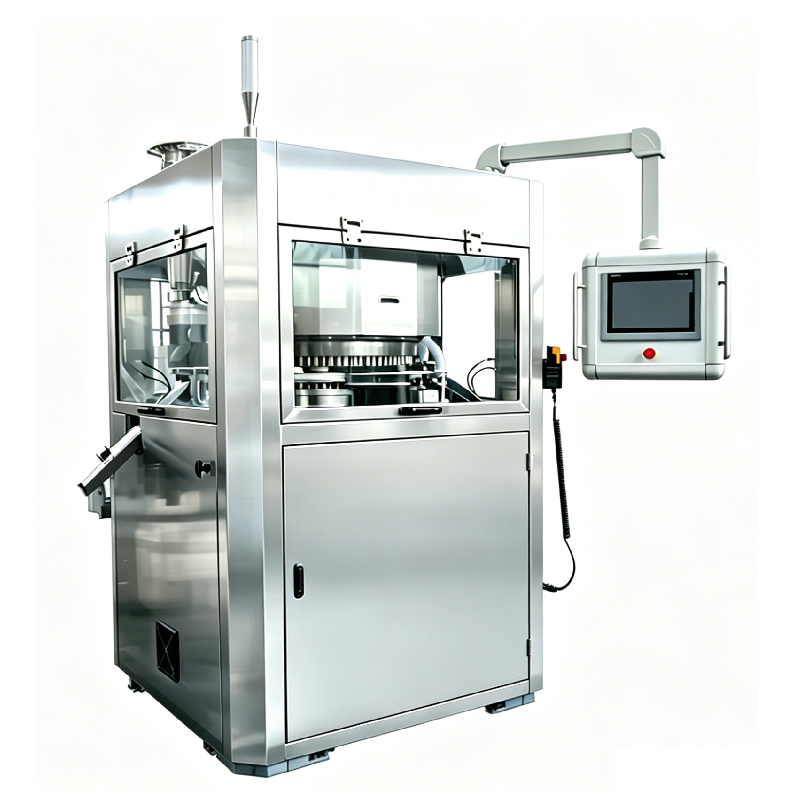

Double Sided Pharmaceutical High Speed Tablet Press Machine
The fully automatic, large-capacity tablet press machine features a robust four-column structure. As an intelligent, double-sided pharmaceutical tablet press, it is designed for the mass production of tablets with exceptional efficiency, precision, and stability.
Main Specifications
Model TEU-H51 TEU-H65 TEU-H83
Number of punches 51 65 83
Punch type D B BB
Punch shaft diameter (mm) 25.35 19 19
Die diameter (mm) 38.10 30.16 24
Die height (mm) 23.81 22.22 22.22
Main pressure (kn) 100 100 100
Pre-pressure (kn) 100 100 100
Turret speed (rpm) 72 72 72
Capacity (pcs/h) 440,640 561,600 717,120
Max. tablet diameter (mm) 25 16 13
Maximum length of irregular-shaped (mm) 25 19 16
Max. tablet thickness (mm) 8.5 8.5 8.5
Max. filling depth (mm) 20 16 16
Voltage Voltage 380, 50Hz** could be customized
Main motor power (kw) 11
Pitch circle diameter (mm) 720
Machine dimension (mm) 1,300x1,300x2,125
Cabinet dimension (mm) 704x600x1,300
Net weight (kg) 5,000
Main Features
  • Operating noise ≤75 dB for quiet production
  • Matched pre-compression & main compression force, good forming performance for difficult powders
  • Integrated safety interlock system
  • Multi-formula storage & one-touch recall function
  • Servo intelligent tablet weight auto-adjustment; automatic rejection of unqualified tablets with customizable tolerance
  • Modular design for fast disassembly and component replacement
  • Impeller forced feeder for stable, high-precision powder feeding
  • SUS316L for material contact parts, SUS304 for other structural parts
  • Optimized sealing design to cut dust leakage and material loss
  • CNC precision turret with full-surface locking dies, tool-free manual die installation
  • Large dust extraction window, connectable to external dust collector
  • Side-mounted electrical cabinet to avoid powder contamination
  • Dual lubrication: grease for upper punches/rails, thin oil for lower punches
  • Full safety functions: auto shutdown & emergency stop
  • Electronic signature system compliant with 21 CFR Part 11
  • Batch printer available as optional accessory
Frequently Asked Questions
What is a double-outlet tablet press?
A double-outlet tablet press is a high-speed machine designed with two discharge channels, allowing tablets to be ejected simultaneously from both sides, significantly improving production efficiency.
What is the production capacity of this machine?
Depending on the model and tablet specifications, the machine can achieve high output suitable for large-scale pharmaceutical production, with significantly increased capacity due to the double-outlet design.
What materials can be processed with this tablet press?
It is suitable for pharmaceutical powders and granules with good flowability and compressibility, including immediate-release and coated tablet formulations.
How does the machine ensure stable and precise tablet quality?
The machine uses a high-precision forced feeder, advanced pressure control system, and real-time monitoring to ensure uniform die filling, consistent weight, hardness, and thickness during continuous high-speed operation.
