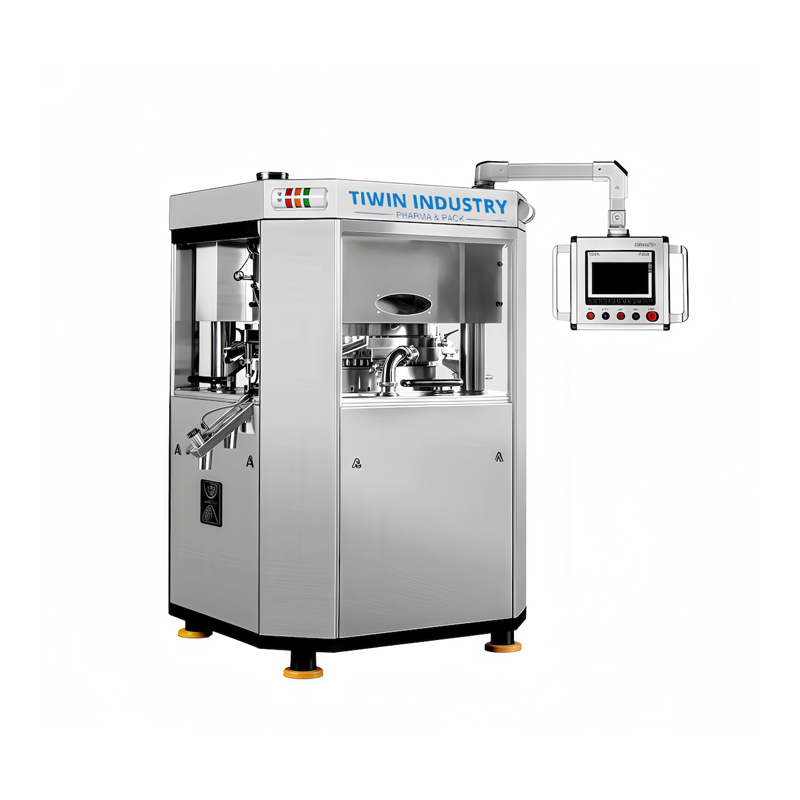

Fully Automatic High-Speed Bilayer Tablet Press
Fully Automatic High-Speed Bilayer Tablet Press
Specifications
Model Number :
TEU-H45
Number of punches :
45
Main pressure :
100KN
Powersupply :
220V/380V, 50Hz/60Hz
Delivery Time :
20 business days
Afrer sale service :
24hours in 7 days online support
Industry :
Pharmaceutical,food,nutrition
Pre pressure :
20KN
Maintenance :
Easy maintenance with modular design
Brand Name :
TIWIN INDUSTRY
Model :
TEU-H45
Place of Origin :
Shanghai,China
Punches Type :
EUD
Customizationoptions :
Available based on product and packaging requirements
Userinterface :
Touchscreen HMI
Certification :
CE
Payment Terms :
T/T
Capacity :
202,500 pcs per hour
Description
Fully Automatic High-Speed Bilayer Tablet Press
The Fully Automatic High-Speed Bilayer Tablet Press is engineered for the high-speed, continuous production of premium-quality bilayer (two-color) tablets. The machine combines advanced compression technology, intelligent automation, and GMP-compliant construction to ensure exceptional productivity, accuracy, and reliability.
With independent feeding and compression systems for each layer, the machine provides precise control of layer weight, compression force, and tablet thickness, ensuring excellent interlayer bonding and superior tablet quality.
Key Features
  • High-speed rotary tablet press for continuous production
  • Specially designed for bilayer and two-color tablet manufacturing
  • Independent filling systems for accurate first and second layer dosing
  • Separate pre-compression and main compression stations for each layer
  • Precise control of tablet weight, thickness, and hardness
  • Excellent layer adhesion with minimal risk of separation or lamination
  • PLC-based intelligent control system with color touchscreen HMI
  • Real-time monitoring of compression force and production parameters
  • Automatic fault diagnosis and alarm system
  • Automatic lubrication system for reliable long-term operation
  • GMP-compliant design with all product-contact parts manufactured from stainless steel
  • Quick tooling changeover and easy cleaning for reduced downtime
  • Compatible with EU or TSM tooling standards
Technical Specifications
Model TEU-H45 TEU-H55 TEU-H75
Number of punches 45 55 75
Punches Type EUD EUB EUBB
Punch shaft diameter (mm) 25.35 19 19
Die diameter (mm) 38.10 30.16 24
Die height (mm) 23.81 22.22 22.22
Max. main pressure (kN) 100 100 100
Max. pre-pressure (kN) 20 20 20
Max. tablet diameter (mm) 25 26 13
Maximum length of irregular-shaped (mm) 25 19 16
Max. filling depth (mm) 20 20 20
Max. tablet thickness (mm) 8 8 8
Max. turret speed (rpm) 75 75 75
Max output (pcs/h) 202,500 247,500 337,500
Voltage Voltage 380, 50Hz** could be customized
Main motor power (kW) 11
Machine dimension (mm) 1,250*1,500*1,926
Net weight (kg) 3,800
** Voltage specifications can be customized according to requirements
