29-Station EU Standard D Tooling Rotary Tablet Press
29-Station EU Standard D Tooling Rotary Tablet Press
Specifications
Maintenance :
Easy maintenance with modular design
Model Number :
TEU-29
Number of punches :
29
Delivery Time :
20 business days
Max.tablet length for shaped tablet (mm) :
25
Afrer sale service :
24hours in 7 days online support
Max.tablet diameter (mm) :
25
Customizationoptions :
Available based on product and packaging requirements
Place of Origin :
Shanghai,China
Punch type :
EUD
Userinterface :
Touchscreen HMI
Industry :
Pharmaceutical,food,nutrition
Powersupply :
220V/380V, 50Hz/60Hz
Payment Terms :
T/T
Max.pressure (kn) :
100
Brand Name :
TIWIN INDUSTRY
Model :
TEU-29
Certification :
CE
Description

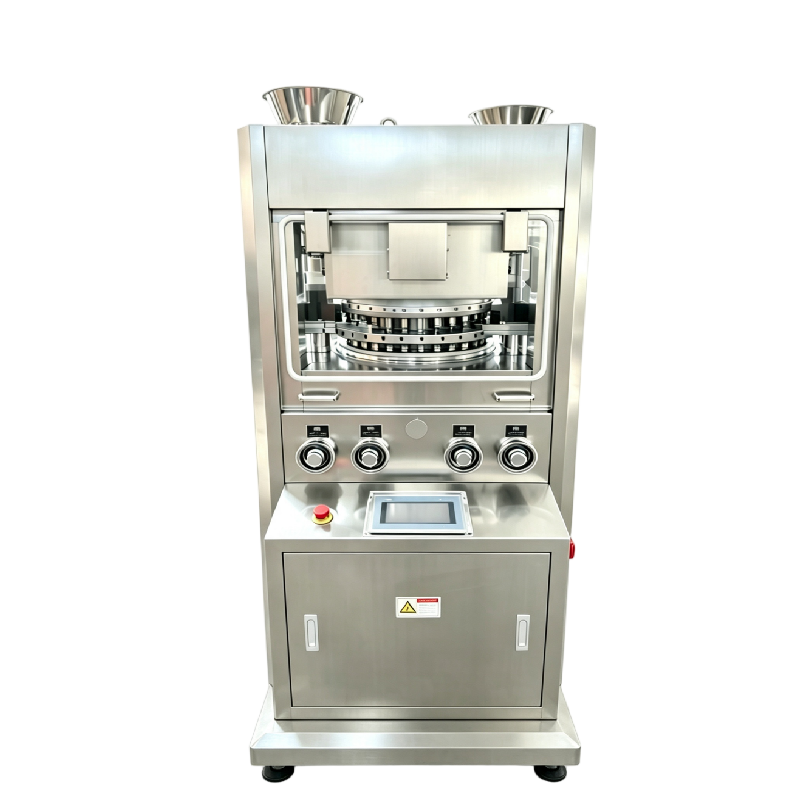

29-Station EU Standard D Tooling Rotary Tablet Press
The 29-Station EU Standard D Tooling Rotary Tablet Press is a robust and versatile machine designed for medium to high-volume production of tablets in the nutraceutical, food, and chemical industries.
Equipped with 29 punch stations compatible with EU Standard D tooling, the machine provides excellent compression performance, stable operation, and precise tablet quality control. The mechanical handwheel adjustment system allows convenient and accurate adjustment of filling depth, tablet thickness, and compression parameters, making it an ideal solution for reliable tablet production.
Key Features
  • 29-station rotary tablet press with EU Standard D tooling
  • Suitable for round and special-shaped tablet production
  • Heavy-duty mechanical structure for stable and durable operation
  • Manual handwheel adjustment for precise control of tablet thickness and filling depth
  • Adjustable pre-compression and main compression force
  • High compression accuracy with excellent tablet weight consistency
  • Forced feeder system ensures uniform powder filling
  • GMP-compliant stainless steel exterior design
  • Easy operation, cleaning, and maintenance
  • Low noise and vibration during continuous production
Technical Specifications
Parameter TEU-29 TEU-43
Number of punches 29 43
Punch type D B
Max. pressure (kn) 100 100
Max. tablet diameter (mm) 25 13
Max. tablet length (mm) 25 16
Max. filling depth (mm) 18 18
Max. tablet thickness (mm) 6 6
Turret speed (rpm) 40 40
Capacity (pcs/h) 139,200 206,400
Voltage 380V, 50Hz (customizable)
Motor power (kw) 7.5
Dimensions (mm) 1,200 x 900 x 1,800
Net weight (kg) 2,380
