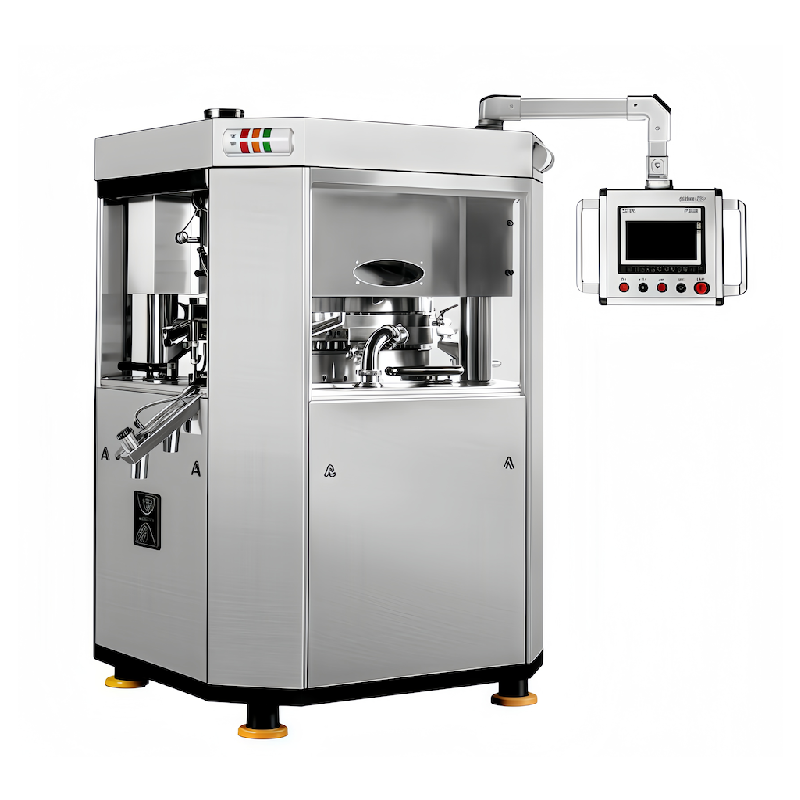

45 Stations Tablet Press Machine Double Sided High Speed 100kn
45 Stations Tablet Press Machine Double Sided High Speed 100kn
Specifications
Main Pressure :
100KN
Delivery Time :
25 business days
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Place of Origin :
Shanghai,China
Industry :
Pharmaceutical,food,nutrition
Model Number :
TEU-H45/55/75
Afrer sale service :
24hours in 7 days online support
MOQ :
1
Brand Name :
TIWIN INDUSTRY
Pre Pressure :
20KN
Certification :
CE
Punch type :
EUD/B/BB
Payment Terms :
T/T
Packaging Details :
Fumigation-free plywood
Supply Ability :
10 Sets per Month
Material :
SUS316 Stainless Steel for material contact area
Description
45 Stations Double Sided High Speed Tablet Press Machine
This fully automatic high-output rotary tablet press adopts a heavy-duty four-column frame and advanced dual lifting guide rails for upper punches. As an intelligent double-sided pharmaceutical tablet press, it delivers high efficiency, precision and stability for large-batch tablet manufacturing.
Main Specifications
Model TEU-H45 TEU-H55 TEU-H75
Number of punches 45 55 75
Punches Type EUD EUB EUBB
Punch shaft diameter (mm) 25.35 19 19
Die diameter (mm) 38.10 30.16 24
Die height (mm) 23.81 22.22 22.22
Max. main pressure (kn) 100 100 100
Max. pre-pressure (kn) 20 20 20
Max. tablet diameter (mm) 25 26 13
Maximum length of irregular-shaped (mm) 25 19 16
Max. filling depth (mm) 20 20 20
Max. tablet thickness (mm) 8 8 8
Max. turret speed (rpm) 75 75 75
Max output (pcs/h) 405,000 495,000 675,000
Voltage Voltage 380, 50Hz (could be customized)
Main motor power (kw) 11 - -
Machine dimension (mm) 1,250*1,500*1,926 - -
Net weight (kg) 3,800 - -
Product Features
  • Noise level: ≤75 dB
  • Advanced hydraulic main compression system for stable compression of difficult forming powders
  • Formula save & quick recall function available
  • Dual upper punch lifting guide rails for smooth ejection and balanced operation
  • Intelligent tablet weight monitoring, pressure detection & auto adjustment
  • Auto rejection of defective tablets with adjustable tolerance range
  • Impeller central force feeder for stable powder supply and accurate feeding
  • Optimized powder sealing plate reduces spillage and improves material utilization
  • CNC precision-machined turret die holes with tool-free die installation
  • Large dust suction interface compatible with central dust collection system
  • Material contact parts meet EU food safety standards, suitable for pharma & food production
  • Rear independent electrical cabinet isolated from compression area, suitable for cleanrooms
  • Complete safety protections with auto shutdown interlock and emergency stop
Frequently Asked Questions
What is the advantage of the double outlet (double discharge) design?
The double outlet system allows tablets to be discharged from two channels simultaneously, effectively increasing production efficiency and reducing tablet collection time, especially for high-volume manufacturing.
What types of tablets can this machine produce?
The machine is suitable for producing round, irregular, and engraved tablets from powder or granulated materials. It is widely used in pharmaceutical, nutraceutical, and food industries.
How does the machine ensure tablet quality at high speed?
It is equipped with a high-precision forced feeder and advanced pressure control system, ensuring uniform die filling, stable compression force, and consistent tablet hardness during continuous high-speed operation.
Is the machine easy to operate and maintain?
Yes. The system features PLC control with an intuitive HMI interface for easy parameter setting. Key components are designed for quick disassembly, making cleaning, maintenance, and die changeover efficient.
