JTJ-100A Semi-Automatic Capsule Filling Machine
JTJ-100A Semi-Automatic Capsule Filling Machine
Specifications
Sutiable for capsule size :
#000, #00,#0,#1,#2,#3,#4
Userinterface :
Touchscreen HMI
Touchscreen system :
German-brand PLC system
Powersupply :
220V/380V, 50Hz/60Hz
Delivery Time :
20 business days
Afrer sale service :
24hours in 7 days online support
Features :
JTJ-100A Semi-Automatic Capsule Filling Machine
Powder dosing method :
By auger
Maintenance :
Easy maintenance with modular design
Certification :
CE
Brand Name :
TIWIN INDUSTRY
Highlight :
AUTO capsule plate rotation
Customizationoptions :
Available based on product and packaging requirements
Place of Origin :
Shanghai,China
Capacity :
Up to 26,000 pcs per hour
Model Number :
JTJ-100A
Payment Terms :
T/T
Industry :
Pharmaceutical,food,nutrition
Description

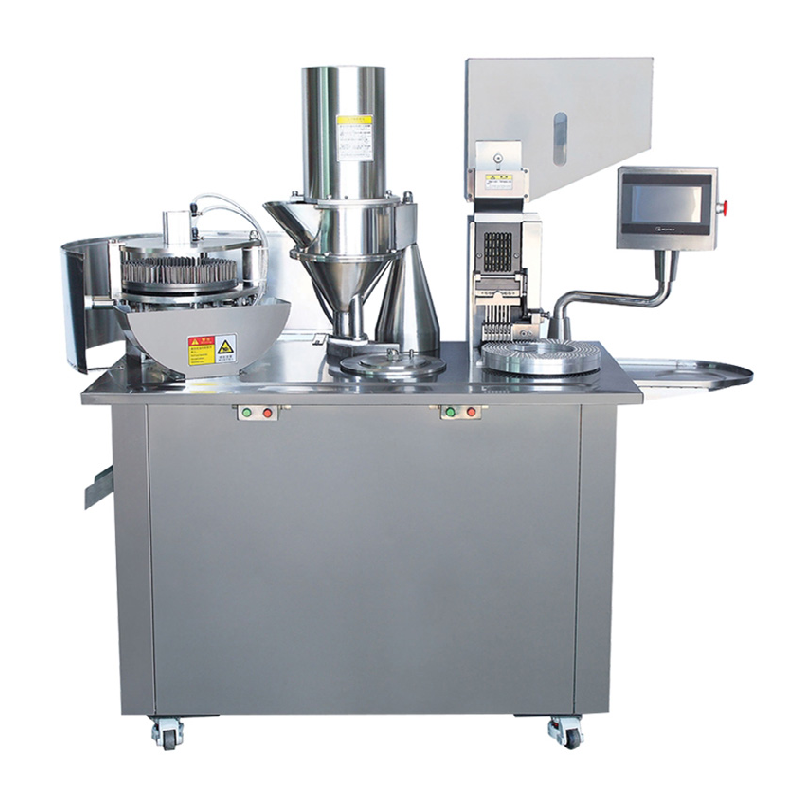

JTJ-100A Semi-Automatic Capsule Filling Machine
The JTJ-100A semi-automatic capsule filling machine features three separate working stations: an empty capsule feeding station, a powder filling station, and a capsule locking station. This design ensures high filling accuracy and operational efficiency for pharmaceutical and supplement manufacturing applications.
Main Specifications
Model JTJ-100A
Max. Output 26,000 Capsules/hour
Capsule Size Suitable for filling capsule size 000#-4#
Dosage Type Powder
Power Supply 4 kW
Vacuum Pump 40 m³/h
Capacity of Air Compressor 0.03 m³/min at 0.7 MPa
Voltage 380V/3P 50Hz
Machine Dimension 1140 * 700 * 1630 mm
Net Weight 330 kg
Key Features
  • Specifically engineered for precise powder filling of hard capsules
  • Full contact parts made of food and pharmaceutical grade 304 stainless steel, ensuring GMP compliance
  • User-friendly interface and tool-less adjustment minimize downtime
  • Versatile compatibility with hard gelatin, HPMC and all types of vegetable capsules
  • High-performance servo motor drive delivers 33% faster production speed than conventional machines
  • High-quality international brand touch screen control system guarantees superior reliability and stability
  • Innovative quick-change mold design reduces setup time between batches
  • Streamlined two-step operating mechanism ensures consistent filling results



1. What types of capsules can a semi-automatic capsule filling machine handle?
Most semi-automatic capsule filling machines are compatible with standard hard gelatin capsules and HPMC capsules in common sizes (such as 000 to 5). Always confirm the model specifications for exact size compatibility.


2. How many capsules can it fill per hour?
Production capacity varies by model and operator speed, but typically ranges from 10,000 to 30,000 capsules per hour under optimal conditions.


3. Is it difficult to operate and maintain?
No. These machines are designed for user-friendly operation. Basic training is usually sufficient. Regular maintenance includes cleaning dosing plates, lubrication of moving parts, and checking alignment.


4. Can the machine handle different powder types?
Yes, it can handle most free-flowing powders, granules, and some pellets. However, very sticky, oily, or poorly flowing materials may require pre-treatment or specialized feeding systems.
