High Output Semi Auto Capsule Filling Machine 26000pcs/Hr 00#-4# CE
High Output Semi Auto Capsule Filling Machine 26000pcs/Hr 00#-4# CE
Specifications
Capsule Tray :
Automatic Rotation
Brand Name :
TIWIN INDUSTRY
Certification :
CE
Filling Accuracy :
±2%
Powersupply :
220V/380V, 50Hz/60Hz
Payment Terms :
T/T
Feature :
High Output Semi Automatic Capsule Filling Machine
Afrer sale service :
24hours in 7 days online support
MOQ :
1 Set
Material :
SS304 Stainless Steel
Customizationoptions :
Available based on product and packaging requirements
Model Number :
JTJ-100A
Maintenance :
Easy maintenance with modular design
Industry :
Pharmaceutical,food,nutrition
Control System :
German PLC Touch Screen
Production Capacity :
26000 Capsules/Hour
Place of Origin :
Shanghai,China
Supply Ability :
50 Sets per Month
Delivery Time :
20 business days
Changeover Time :
≤15 Minutes
Userinterface :
Touchscreen HMI
Packaging Details :
Standard export wooden case with foam padding, vacuum-wrapped for moisture protection
Description

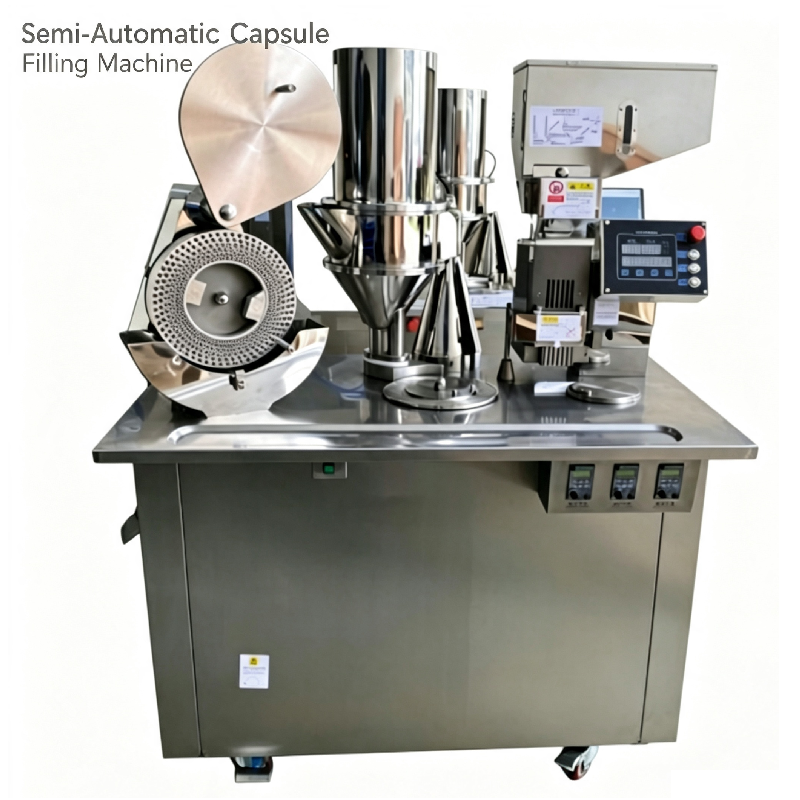

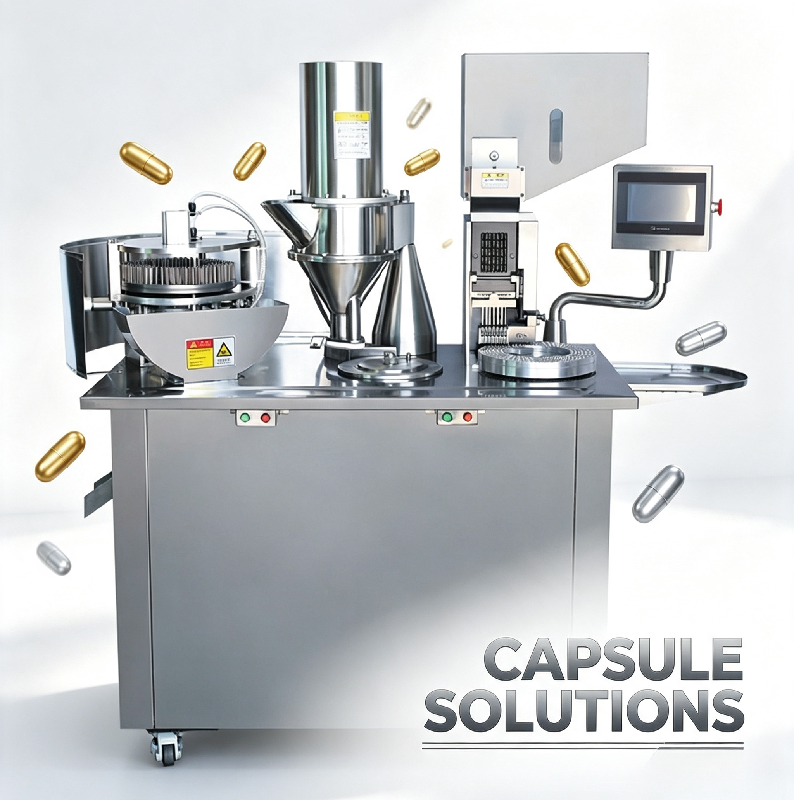

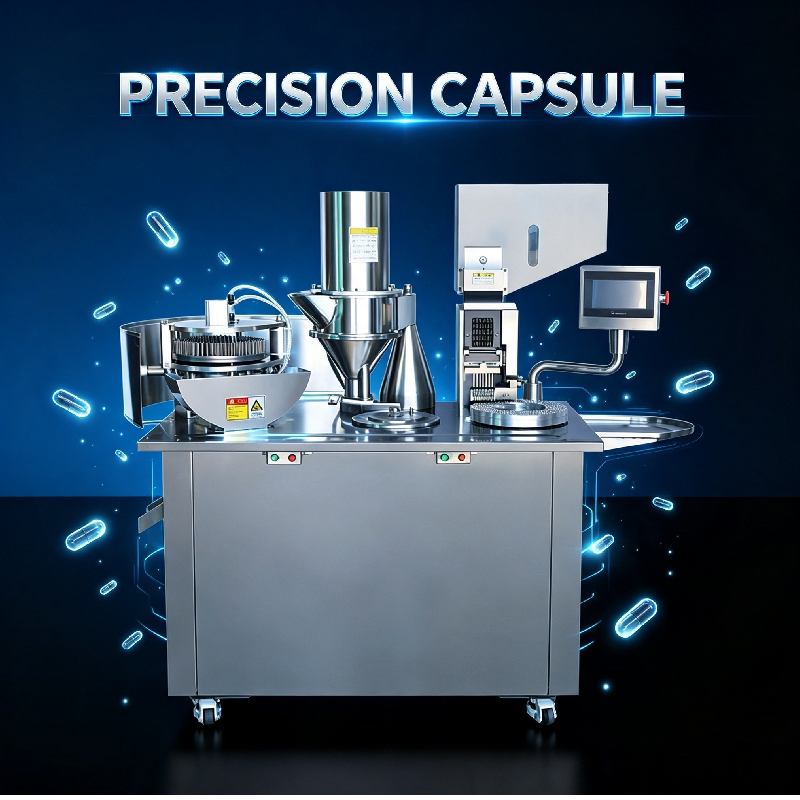

High Output Semi Automatic Capsule Filling Machine JTJ-100A
High Output Semi Automatic Capsule Filling Machine JTJ-100A German PLC 26000 Caps/Hour 00#-4# CE
Product Overview
The JTJ-100A High Output Semi Automatic Capsule Filling Machine delivers the productivity of much larger fully-automatic machines in a semi-automatic format. At 26,000 capsules per hour — over 430 per minute — it outperforms most semi-automatic fillers on the market. The German PLC with automatic tray rotation enables this speed without compromising the ±2% filling accuracy and operator-controlled quality that semi-automatic production lines demand.
Technical Specifications
Model JTJ-100A
Production Capacity 26,000 Capsules/Hour
Applicable Capsule Size 00#, 0#, 1#, 2#, 3#, 4#
Filling Accuracy ±2%
Control System PLC with Touch Screen HMI
Capsule Tray Automatic Rotation System
Machine Power 4 kW
Power Supply 220V/380V 50/60Hz Customizable
Machine Weight 430 kg
Machine Dimension 1140 x 700 x 1630 mm
Changeover Time ≤15 Minutes
Material SS304 Stainless Steel
Key Features
  • German PLC Touch Screen Control — Industry-leading German PLC with intuitive HMI for precise parameter setting.
  • Automatic Capsule Tray Rotation — Motorized tray rotation eliminates manual turning for faster filling cycles and improved operational efficiency
  • High Output 26,000 Capsules/Hour — Optimized dual tamping station with automatic tray indexing maximizes throughput
  • Semi Automatic Precision Control — Operators retain full oversight of fill weight and capsule alignment where quality matters
  • Durable SS304 Construction — All structural and product-contact components in GMP-grade stainless steel
  • Quick-Release Wear Parts — Tool-free removal of capsule tray, dosing disc, and tamping pins for ≤20 min service
  • ±2% Filling Accuracy — Servo-driven dosing with real-time feedback ensuring every capsule meets specification
  • 26,000 Caps/Hour Productivity — Semi-automatic efficiency rivaling fully-automatic machines for a fraction of the investment cost
