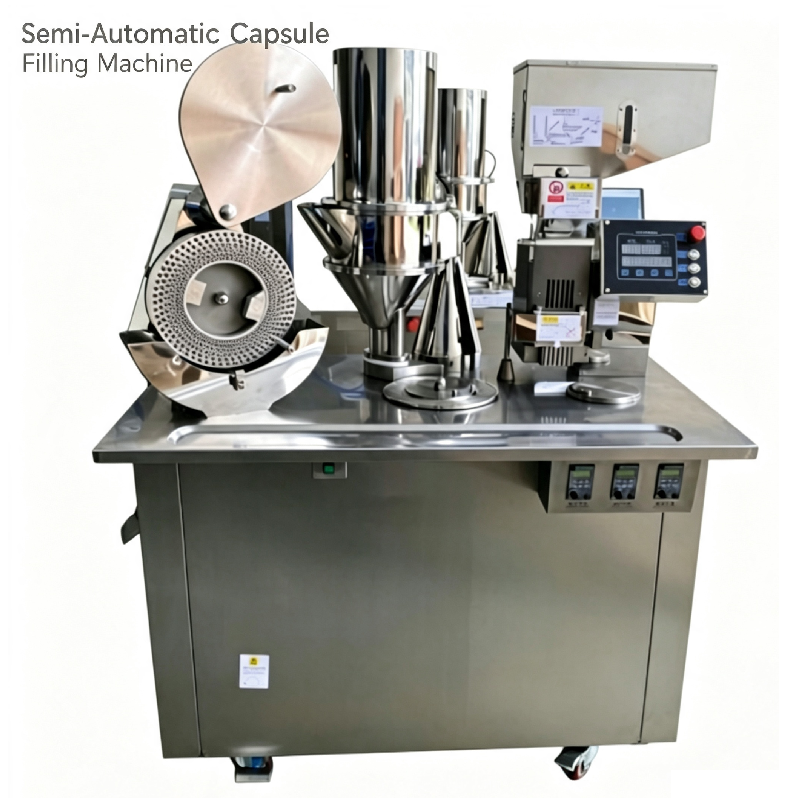

Herbal Semi Automatic Capsule Filling Machine Nutraceutical 00 Capsule Filler
Herbal Semi Automatic Capsule Filling Machine Nutraceutical 00 Capsule Filler
Specifications
Capacity :
10,000-22,500 pcs/h
Payment Terms :
T/T
Capsule Sizes :
#000, #00, #0, #1, #2, #3, #4
Powersupply :
220V/380V, 50Hz/60Hz
Dimensions :
1200x700x1600mm
Maintenance :
Easy maintenance with modular design
Control :
Push-button semi-automatic
Industry :
Pharmaceutical,food,nutrition
MOQ :
1 Set
Feature :
DTJ Semi-automatic Capsule Filling Machine
Userinterface :
Touchscreen HMI
Brand Name :
TIWIN INDUSTRY
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Vacuum Pump :
40 m³/h
Certification :
CE
Supply Ability :
50 Sets per Month
Air Compressor :
0.03m³/min, 0.7Mpa
Packaging Details :
Fumigation-free plywood case with foam-padded protection
Customizationoptions :
Available based on product and packaging requirements
Model Number :
DTJ
Place of Origin :
Shanghai,China
Model :
DTJ
Description

Herbal Nutraceutical Semi Automatic Capsule Filling Machine

Herbal Nutraceutical Semi Auto Capsule Filler Powder Granule GMP Stainless Steel for Dietary Supplement Production

The booming global nutraceutical market demands flexible, GMP-compliant capsule filling equipment that can handle the unique challenges of botanical powders and supplement blends. The DTJ rises to the challenge with an anti-clumping hopper agitator, adjustable tamping pressure, and food-grade stainless steel construction. From turmeric and ashwagandha to probiotic granules and vitamin premixes, this machine delivers consistent fill weights and professional-quality filled capsules for the dietary supplement industry.

Technical Specifications

Parameter DTJ
Capacity (pcs/h) 10,000-22,500
Power (kW) 2.1
Vacuum Pump (m³/h) 40
Air Compressor 0.03m³/min, 0.7Mpa
Dimensions (mm) 1,200 x 700 x 1,600
Weight (Kg) 330
Capsule Sizes #000, #00, #0, #1, #2, #3, #4
Material Food-grade stainless steel

Key Features

Versatile Powder & Granule Handling

  • Optimized for herbal powders, botanical extracts, nutraceutical blends, and granulated formulations
  • Adjustable tamping pressure accommodates varying powder densities — from light herbal powders to dense mineral supplements
  • Anti-clumping agitator in the powder hopper ensures consistent flow of fibrous and hygroscopic botanical materials
  • Suitable for: spirulina, turmeric, ashwagandha, mushroom extracts, vitamin blends, amino acid powders, probiotic granules

Gentle Product Handling

  • Low-shear powder feeding preserves heat-sensitive botanical actives and probiotic viability
  • Adjustable filling depth prevents over-compaction of delicate herbal powder blends
  • Smooth stainless steel contact surfaces minimize powder adhesion and cross-contamination
  • Dedicated dust extraction port for fine powder containment (optional attachment)

Nutraceutical Industry Ready

  • GMP-compliant food-grade stainless steel — suitable for dietary supplement cGMP
  • Supports both gelatin and vegetarian HPMC capsules for clean-label and vegan product lines
  • Quick clean disassembly for batch-to-batch cleaning in multi-product facilities
  • CE certified with material traceability documentation

FAQ

Can this machine handle sticky herbal powders?
The DTJ performs well with free-flowing to moderately cohesive powders. The anti-clumping agitator helps break up powder bridges in the hopper. For highly sticky or hygroscopic herbal extracts, we recommend pre-blending with flow aids (e.g., silicon dioxide) for optimal performance.
Is the machine suitable for vegan HPMC capsules?
Yes. The DTJ works equally well with traditional gelatin capsules and plant-based HPMC capsules. The filling parameters may need slight adjustment for HPMC capsules, which have slightly different friction characteristics during opening and closing.
