Semi-automatic capsule filling machine with dual capsule separation station
Semi-automatic capsule filling machine with dual capsule separation station
Specifications
Payment Terms :
T/T
Packaging Details :
Fumigation-free plywood
Capsule separation station :
2
Customizationoptions :
Available based on product and packaging requirements
Industry :
Pharmaceutical,food,nutrition
Material :
SUS304 stainless steel
Userinterface :
Touchscreen HMI
Powersupply :
220V/380V, 50Hz/60Hz
Model Number :
JTJ-D
Features :
With dual capsule separation station
Brand Name :
TIWIN INDUSTRY
Application :
Nutrition,supplement, healthy products
Place of Origin :
Shanghai,China
Afrer sale service :
24hours in 7 days online support
Capacity :
Up to 45,000 pcs per hour
Maintenance :
Easy maintenance with modular design
Delivery Time :
20 business days
Certification :
CE
Operation method :
German-brand PLC system
Description

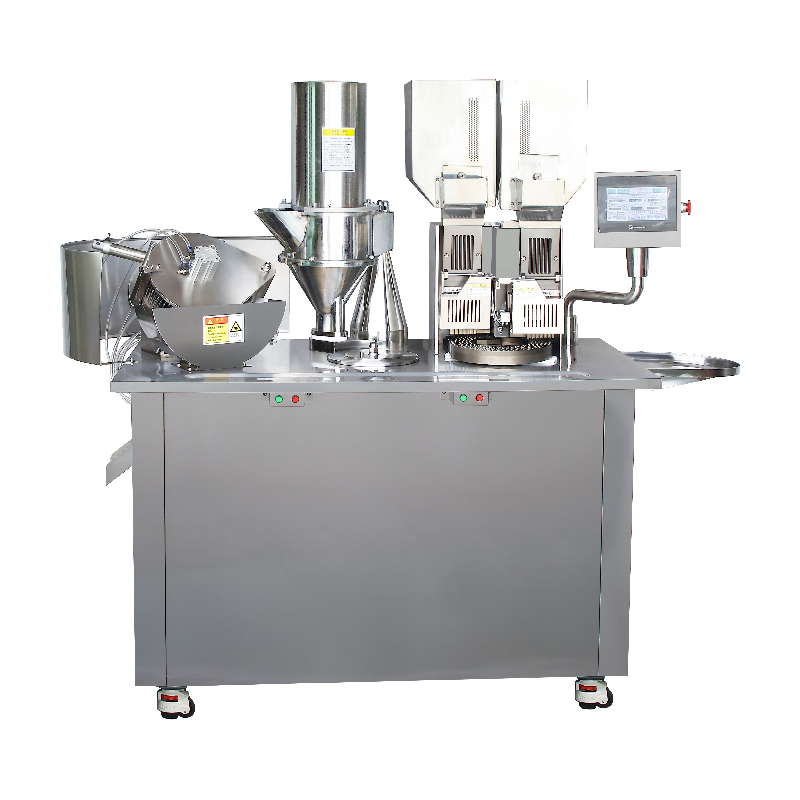

Semi-automatic Capsule Filling Machine with Dual Capsule Separation Station

This semi-automatic capsule filling machine is engineered for efficient and precise filling of hard capsules. Featuring a dual capsule separation station, it significantly improves capsule opening speed and reduces overall cycle time, enhancing production efficiency.

The machine integrates capsule alignment, separation, filling, locking, and cleaning functions in a compact structure. It is suitable for pharmaceutical, nutraceutical, and health product manufacturing, particularly for small to medium batch production.

With user-friendly design, the machine ensures easy operation and maintenance. It delivers stable performance, accurate dosing, and reliable capsule locking. The modular structure allows quick changeover for different capsule sizes.

Compatible with hard gelatin and HPMC capsules, it can handle powders, granules, and pellet formulations with good flowability.

Main Specifications
Model JTJ-D
Suitable for capsule size #000-#5
Capacity (capsules/h) 20,000-45,000
Voltage 380V/3P 50Hz
Power 5kW
Vacuum pump (m³/h) 40
Barometric pressure 0.03m³/min 0.7Mpa
Overall dimensions (mm) 1300×700×1650
Weight (Kg) 420
Product Features
  • Specifically engineered for accurate quantitative powder filling into hard capsules
  • All material contact parts adopt pharmaceutical-grade SUS304 stainless steel to meet GMP requirements
  • Intuitive human-machine interface and tool-free adjustment greatly reduce changeover downtime
  • Widely compatible with hard gelatin, HPMC and all kinds of vegetable hollow capsules
  • Dual-station design + servo automatic rotation, 33% higher output speed than traditional single-head machines
  • Industrial imported touch screen control system ensures long-term stable and reliable performance
  • Quick-disassembly mold design for fast capsule size switching between batches
  • Standard two-step integrated working mechanism to guarantee uniform filling weight
  • Equipped with two separate independent stations for capsule feeding, powder dosing and capsule locking
Frequently Asked Questions
What is the advantage of the dual capsule separation station?

The dual capsule separation station improves capsule opening efficiency by processing two capsules simultaneously, which shortens cycle time and increases overall production output.

What capsule sizes is this machine compatible with?

The machine is compatible with standard hard gelatin and HPMC capsules, typically ranging from size 000 to size 5. Specific compatibility may vary depending on the model configuration.

What types of materials can be filled with this machine?

It is suitable for filling powders, granules, and small pellets with good flowability. Sticky or poorly flowing materials may require pre-treatment or assistance from a feeding system.

Is the machine difficult to operate and clean?

No. The machine is designed for easy operation with basic training. Key parts are modular and detachable, making cleaning, maintenance, and size changeover quick and convenient.
