360° High Speed Automatic Capsule Appearance Inspection Machine GMP Compliant
360° High Speed Automatic Capsule Appearance Inspection Machine GMP Compliant
Specifications
Brand Name :
SED Pharma
Model Number :
SED-JSJT-E
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
360° High-Speed Automatic Capsule Appearance Inspection Machine
Applicabl :
00#~5#, dosage forms other than standard specifications shall be subject to the test results
Inspection Item :
Stains, scratches, foreign object attachments, punctures, dents, anomalies, discoloration, etc
Detection Range :
360 degree all-round
Accuracy :
0.05 MM, Adjustable accuracy
Operation Screen :
Touch screen (18.5 inches)
Power Supply :
380 V ; 50Hz
key word :
Capsule Inspection Machine, 360° Capsule Inspection Equipment
Description

Product Overview of 360° High-Speed Automatic Capsule Appearance Inspection Machine

The SED-JSJT-E series 360° High-Speed ​​Automatic Capsule Appearance Inspection Machine is a high-precision, fully automated capsule defect detection system designed specifically for the pharmaceutical industry.

This equipment utilizes advanced imaging technology to achieve a 360° scan of the capsule surface without blind spots, effectively identifying minute defects that affect product quality.

Product Parameters of 360° High-Speed Automatic Capsule Appearance Inspection Machine

Model

SED-12-1440JSJT-E

SED-30-3600JSJT-E

SED-60-7200JSJT-E

Channel

12 channel

30 channel

60 channel

Detection Speed

86,400 pcs/hour

216,000 pcs/hour

432,000 pcs/hour

Applicable

00#~5#, dosage forms other than standard specifications shall be subject to the test results

Inspection Item

Stains, scratches, foreign object attachments, punctures, dents, anomalies, discoloration, etc

Detection Range

360 degree all-round

Accuracy

0.05 MM, Adjustable accuracy

Operation Screen

Touch screen (18.5 inches)

Power Supply

380 V ; 50Hz

Power

3 KW

3 KW

4 KW

Environment

Temperature: 10-30°C; Humidity: 30-70%

Size

9259501400 MM

11109501400 MM

126310901400 MM

Weight

500 KG

600 KG

900 KG

Feature of 360° High-Speed Automatic Capsule Appearance Inspection Machine

  • 360° All-Around Inspection: Completely eliminates blind spots, covering the entire surface of the capsule cap, body, and junctions.

  • Compatible with All Models: Compatible with standard capsules from 00# to 5# (supports custom testing).

  • AI Intelligent Recognition: Efficiently detects stains, scratches, foreign objects, holes, dents, color abnormalities, etc.

  • Touchscreen Control: Equipped with an 18.5-inch extra-large touchscreen for real-time monitoring of test data and intuitive operation.

  • Precision Control: Accuracy up to 0.05 mm, meeting extremely stringent GMP pharmaceutical standards.

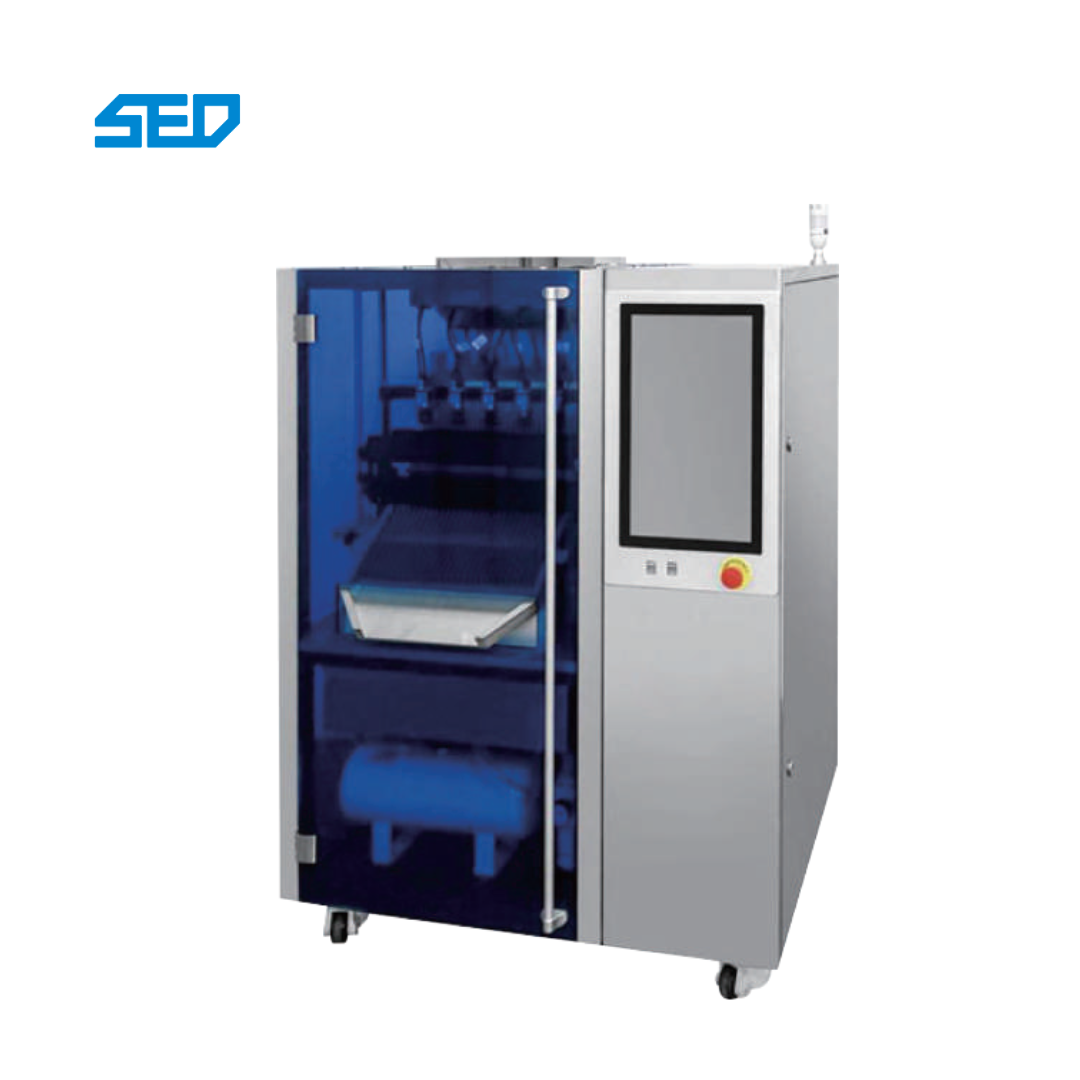

Show of 360° High-Speed Automatic Capsule Appearance Inspection Machine

360° High Speed Automatic Capsule Appearance Inspection Machine GMP Compliant
