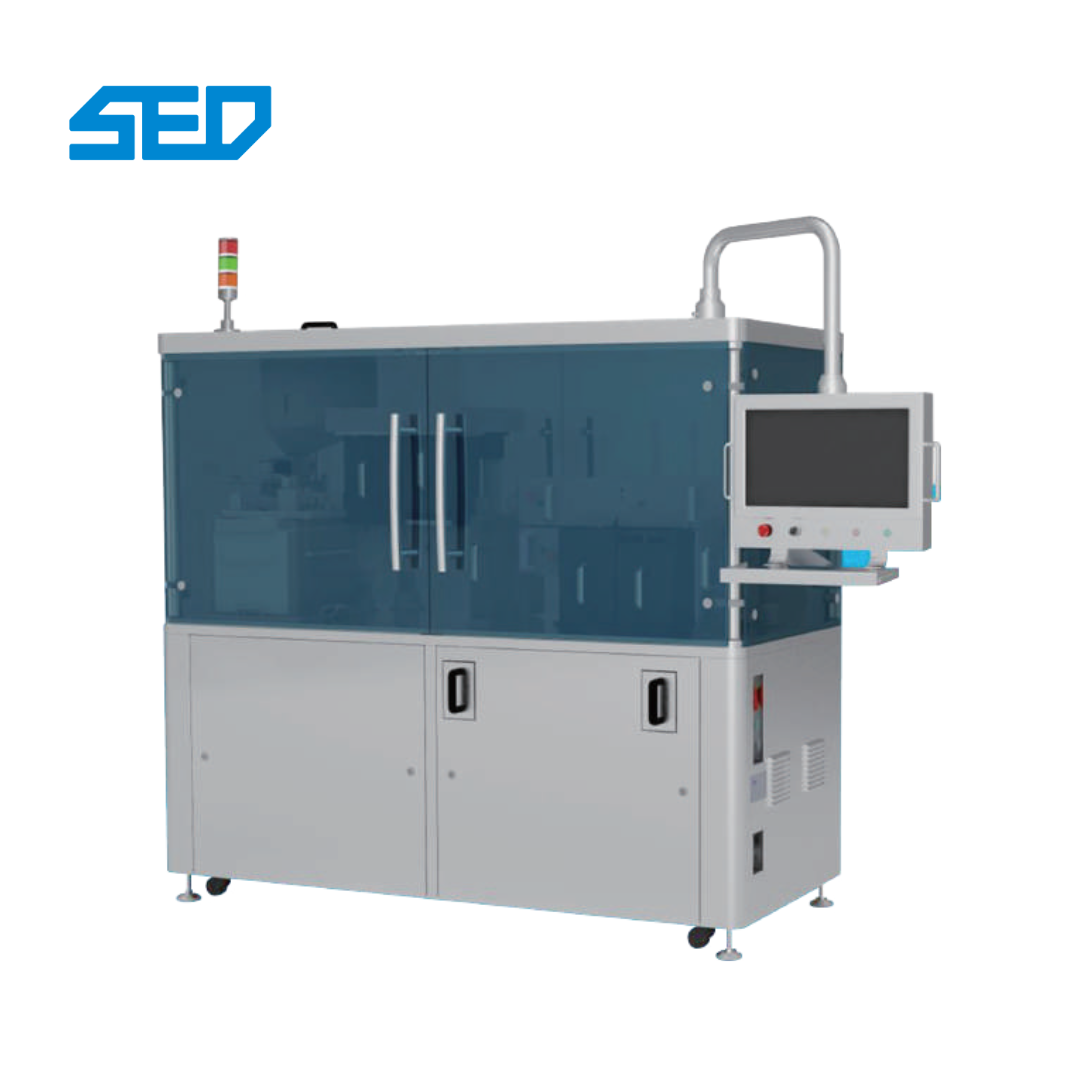

High Speed 360° Tablet Visual Inspection Equipment System High Accuracy
High Speed 360° Tablet Visual Inspection Equipment System High Accuracy
Specifications
Brand Name :
SED Pharma
Model Number :
SED-2500YSJT-B
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
High-Speed 360° Tablet Visual Inspection System
Inspection Item :
Conventional tablets, Elliptical tablets, Controlled-release tablets
Air Pressure :
0.5–0.7 MPa
Power Supply :
380 V ; 3P ; 50 Hz
Size :
2100 * 900 * 1900 MM
Weight :
1100 KG
key word :
tablet inspection machine, tablet inspection equipment, pharmaceutical tablet inspection machine, tablet visual inspection system
Description

Product Overview of High-Speed 360° Tablet Visual Inspection System

The SED-2500YSJT-B Tablet Inspection Machine is a high-speed 360° tablet inspection system designed for pharmaceutical production lines. It automatically inspects tablets for appearance defects such as cracks, chips, contamination, color variation, and shape abnormalities.

With a detection speed of up to 150,000 tablets per hour, this tablet inspection equipment ensures high-precision quality control while maintaining stable and efficient operation. The system supports inspection of conventional tablets, elliptical tablets, and controlled-release tablets, making it suitable for a wide range of pharmaceutical applications.

The equipment is equipped with a 360° visual inspection system and automatic rejection station, ensuring defective tablets are removed accurately without affecting production efficiency.

Product Parameters of High-Speed 360° Tablet Visual Inspection System

Model

SED-2500YSJT-B

Inspection Specifications

• Conventional tablets: Φ 5–13 (MM) ; H 2–10 (MM)
• Elliptical tablets: L 5–22 (MM) ; W 5–12 (MM) ; H 2–8 (MM)
• Controlled-release tablets: Φ 8.8–12.3 (MM); H 4.6–8.2 (MM)

Detection Speed

• Conventional tablets: 150,000 pcs/hour
• Controlled-release tablets: 96,000 pcs/hour

Size

2100 * 900 * 1900 MM

Power Supply

380 V ; 3P ; 50 Hz

Power

10 KW

Air Pressure

0.5–0.7 MPa

Weight

1100 KG

Rejection System

Having a removal station

Feature of High-Speed 360° Tablet Visual Inspection System

  1. Versatile Inspection: Handles everything from standard round tablets to complex controlled-release geometries.
  2. Precision Rejection System: Features a dedicated removal station to instantly eject defective products without stopping the line.
  3. High Throughput: Massive capacity of 150,000 pieces per hour, perfect for industrial-scale manufacturing.
  4. GMP Compliant Design: Robust 1100 KG build quality suitable for sterile pharmaceutical environment

Show of Automatic 360° Soft Capsule Vision Inspection Machine
