2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
Specifications
Brand Name :
SED Pharma
Model Number :
SED-2-1000YSJT-F
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Automatic Tablet Visual Inspection Machine
Inspection Size :
Thickness: 3–10 mm；Diameter: 3–13 mm；Length: 3–21 mm
Inspection Speed :
Stable detection: 1000 pcs/min
Channels :
2 channels
Power Supply :
AC 220V 50/60Hz
Total Power :
2 kW
Air Pressure :
0.45–0.7 MPa
key word :
Tablet Inspection Machine
Description

Product Overview of Automatic Tablet Visual Inspection Machine

The Automatic Tablet Inspection Machine is a high-precision visual inspection system designed for the pharmaceutical industry. It automatically detects and removes defective tablets or capsules during the production process, ensuring high product quality and compliance with GMP standards. The machine features advanced high-speed camera inspection, servo-controlled conveying, and an accurate rejection system, making it ideal for mass production lines.

Product Parameters of Automatic Tablet Visual Inspection Machine

Model SED-2-1000YSJT-F
Inspection Size Thickness: 3–10 mm；Diameter: 3–13 mm；Length: 3–21 mm
Inspection Speed Stable detection: 1000 pcs/min
Channels 2 channels
Power Supply AC 220V 50/60Hz
Total Power 2 kW
Air Pressure 0.45–0.7 MPa

Feature of Capsule Inspection Machine​

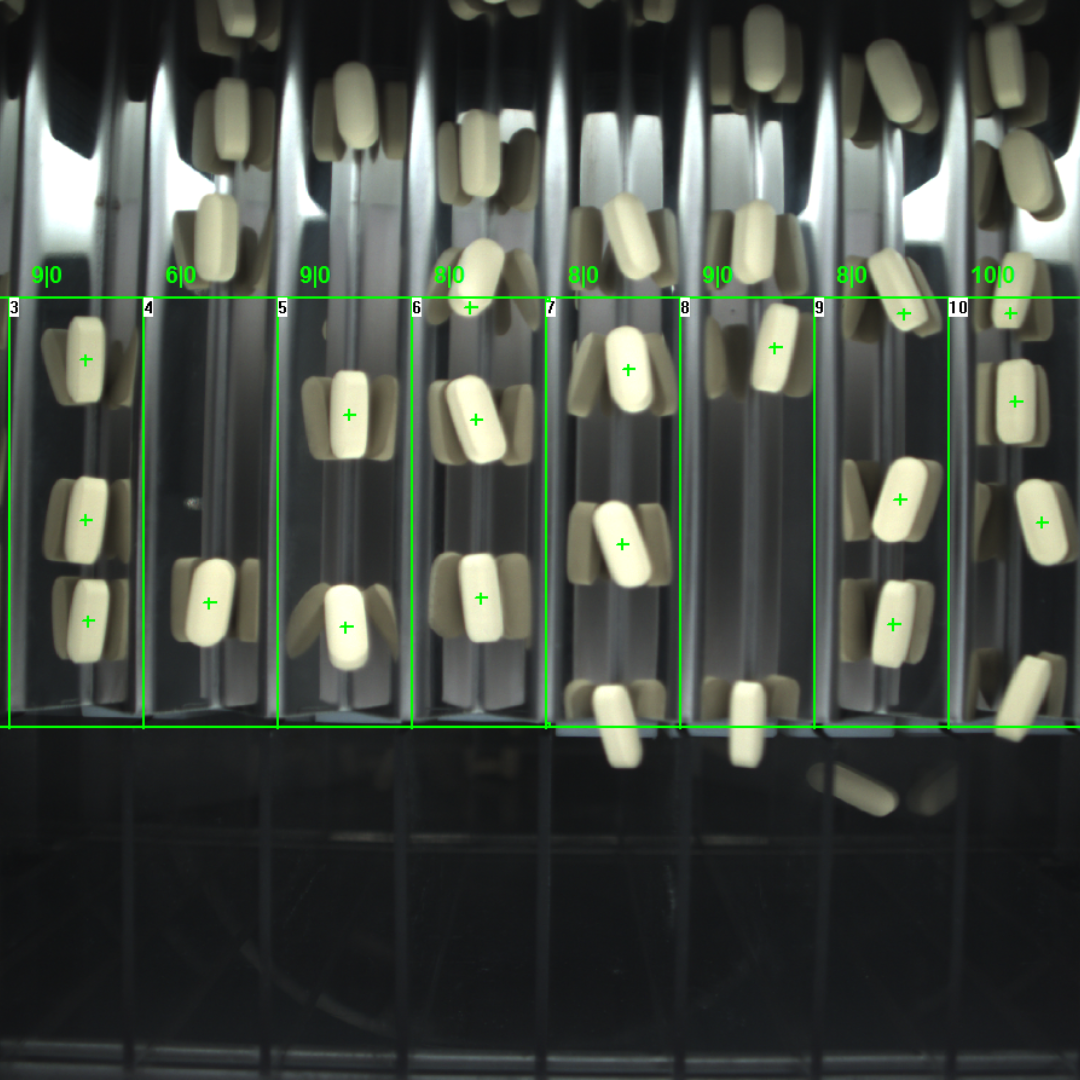

  • High-Speed & High-Precision Inspection: Equipped with an 8K color line-scan camera and customized lighting, the system captures minute defects in real time, tracking each tablet throughout inspection at speeds up to 1,000 tablets per minute.
  • Intelligent Sorting: An automated rejection mechanism, driven by real-time image analysis, accurately removes defective products with minimal false rejects or missed defects.
  • Stable & Flexible Production: Features a servo-driven conveyor and adjustable vibratory feeding system, accommodating various tablet sizes (3–13mm diameter, 3–21mm length) without mechanical changeovers.
  • GMP-Compliant Design: Constructed with AISI316L stainless steel and FDA-approved materials. Easy-to-clean, open structure with built-in dust extraction ports for hygienic operation.

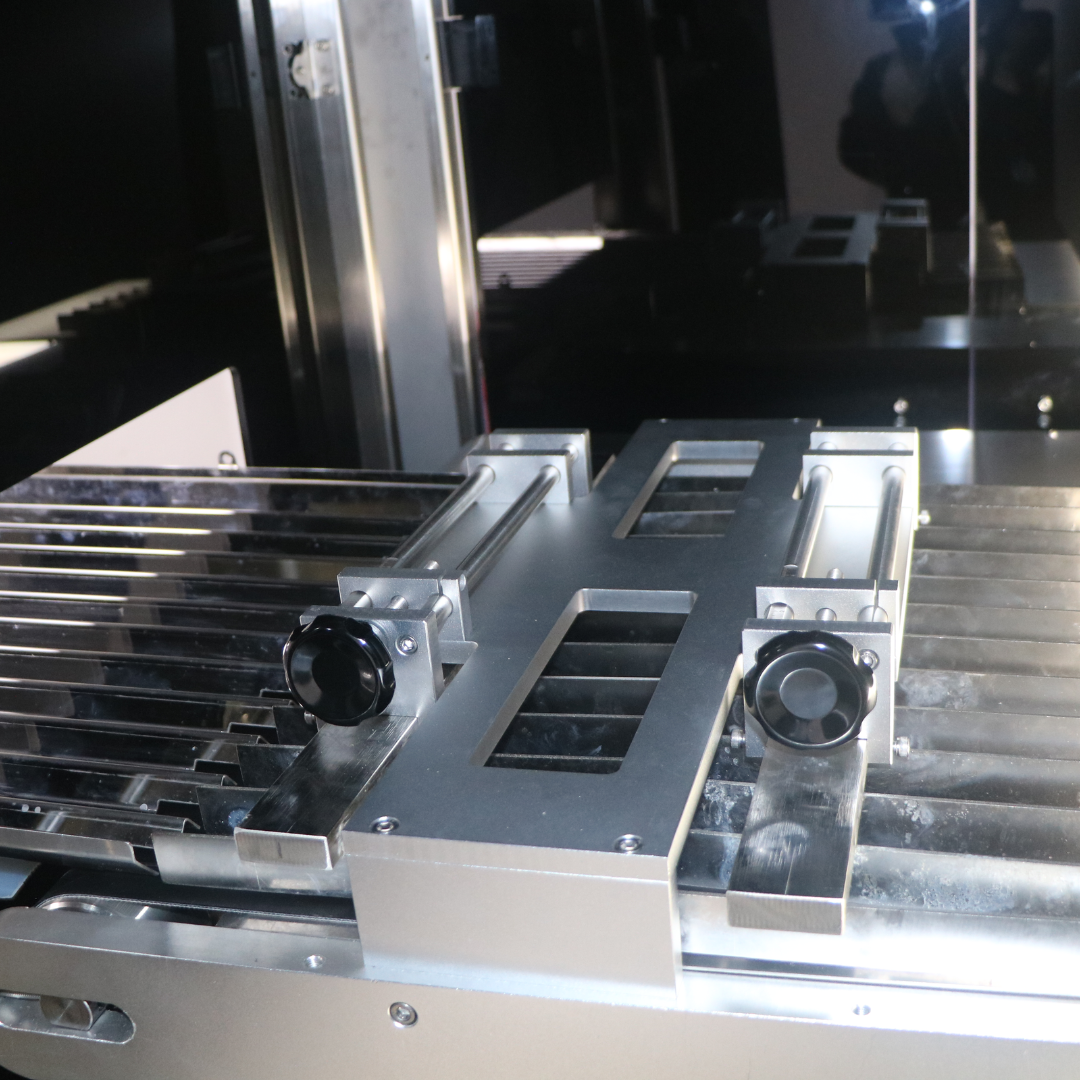

Show of Automatic Tablet Visual Inspection Machine

2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW

2 channels Automatic Tablet Visual Inspection Equipment Machine 2 KW
