Specifications
Type :
Pointer Oil Level Gauge
Features :
Magnetic Coupling, Remote Monitor, Alarm
Brand Name :
People Power
Model Number :
YZF2/YZS
Protection Level :
IP55
Place of Origin :
Zhejiang, China
name :
Transformers Parts Pointer Type Oil Level Gauge
Application :
Transformer Oil Conservator
Accuracy :
<2.5%
Description

Transformers Parts Pointer Type Oil Level Gauge



Product Overview

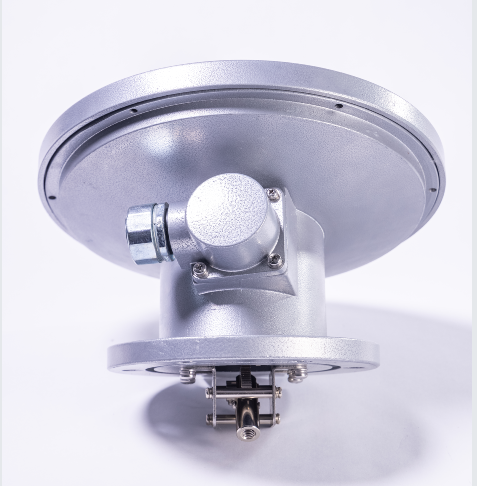

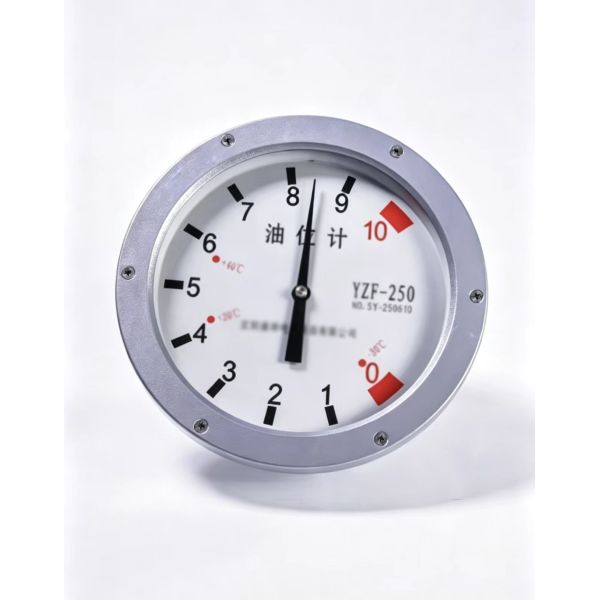

The pointer type oil level gauge (abbreviated as oil level gauge) for YZF and YZS transformers is an oil level testing device for transformer oil storage tanks. Its main structure includes: sensing part (straight rod floating ball or telescopic rod), transmission part, magnetic coupling, indication part, and alarm part. The sensing part drives the indicator part through the transmission part and magnetic coupling to indicate the oil level. Finally, the pointer indicates the oil level on the dial and sends an alarm signal at the highest and lowest oil levels, achieving the purpose of remote monitoring.


According to the swing form of the connecting rod, it can be divided into two types: up and down swing and left and right swing, which are respectively suitable for the main oil storage tank and the on load switch oil storage tank.
According to the structural form of the connecting rod, it can be divided into two types: straight rod floating ball type and telescopic rod type, which are respectively suitable for capsule type and diaphragm type oil storage tanks.


Usage conditions.


Allowable working environment temperature: -30~+90 ° C. There should be no severe vibrations or bumps in the surrounding area



Technical specifications


Indication error: less than 2.5% of the entire disk.
Sealing performance: 2.45X105Pa.
Protection level: IP55.
Long term stability: not less than 10000 cycles.
Switch capacity: AC220V 3A, DC220V 1A.
Insulation withstand voltage: 2000V, 1min.

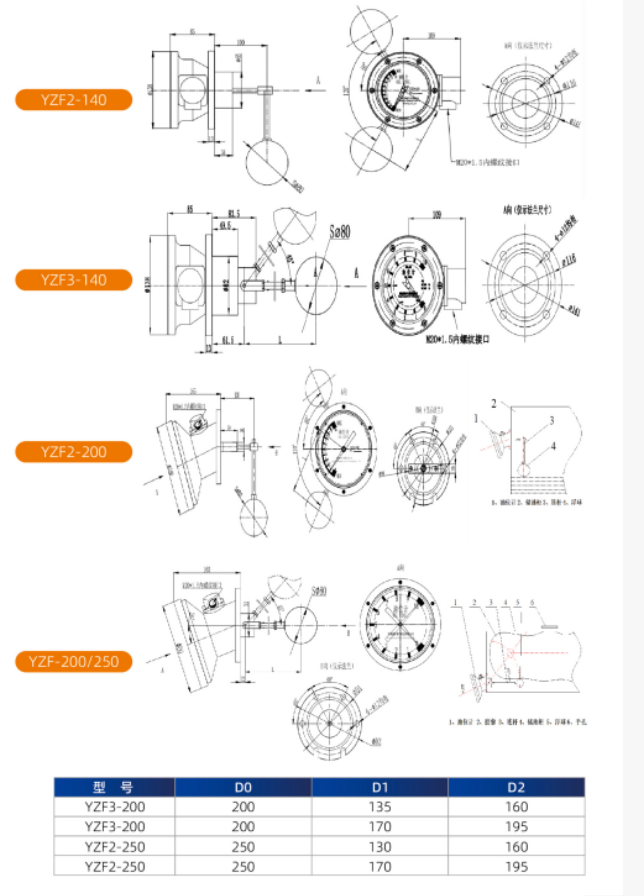

installation dimensions


Pointer Type Oil Level Gauge Transformers Parts For Conservator Monitoring
