Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
Specifications
Type :
Pressure Relief Valve
Brand Name :
People Power
Features :
Dual-channel, Tri-proof, Bleed Plug
Bore Diameter :
Ø25/Ø50/Ø80/Ø130
name :
Transformer Pressure Relief Valve
Application :
Transformer, Capacitor, Reactor
Place of Origin :
Zhejiang, China
Opening Pressure :
35~138kPa
Description

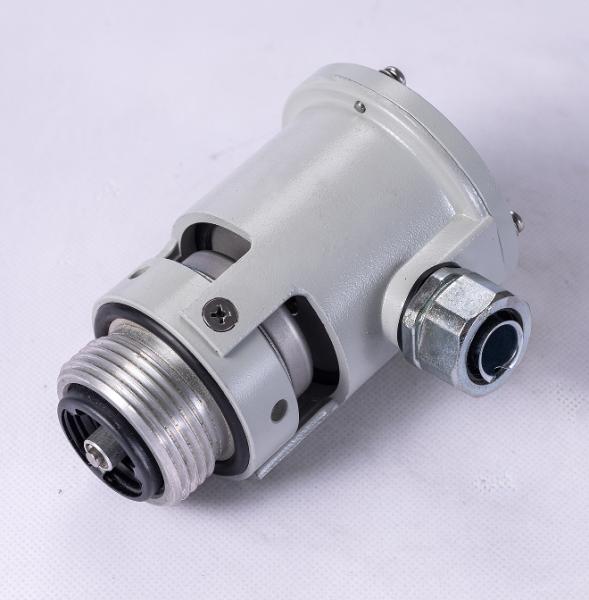

Transformer Pressure Relief Valve Transformer Parts Overpressure Relief Device

Product Overview

The pressure relief valve is primarily applied to release overpressure inside the oil tanks of oil-immersed power transformers, power capacitors, reactors and other equipment. In addition to the standard conventional electrical alarm signal, the YSF series pressure relief valve can be optionally equipped with an electrical alarm signal module for computer systems, enabling dual-channel electrical signal output.

Product Features

- The oil inlet diameter is larger than the effective oil ejection diameter, which reduces the drainage damping after pressure relief activation.
- The electrical switch features high water resistance, delivering superior safety, reliability and tri-proof performance (moisture-proof, mould-proof and salt-fog-proof).
- A bleed plug is added to the valve seat. After oil replenishment for the transformer, excess gas can be exhausted via the bleed plug, effectively preventing valve leakage caused by trapped gas inside the pressure relief valve cavity.
- Adopts quick-plug terminals from well-known brands for neat appearance and convenient wiring.

Operating Conditions

1. Installation Position: Mounted on the tank cover, riser or upper side wall of the oil tank
2. Temperature Requirements: Ambient storage temperature: -30°C to +50°C; Operating temperature: -50°C to +100°C
3. Relative Humidity: No more than 95% at +20°C

Specifications and Performance Parameters

Effective Bore Diameter ∅25 ∅50 ∅80 ∅130
Opening Pressure /KPa 35 55 35 55 35 55 85 55 70 85 100 138
Tolerance Deviation /KPa ±5 ±10
Closing Pressure /KPa 19 29.5 19 29.5 19 29.5 45.5 29.5 37.5 45.5 54 74
Sealing Pressure /KPa 21 33 21 33 21 33 51 33 42 51 60 82.8

Contact Rating

Power Supply Type ∅25,∅50 ∅80,∅130
Voltage (V) Current (A) Voltage (V) Current (A)
AC 220 3 220 5
DC 220 0.3 220 1

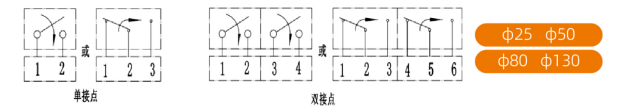

Wiring Diagram

Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks

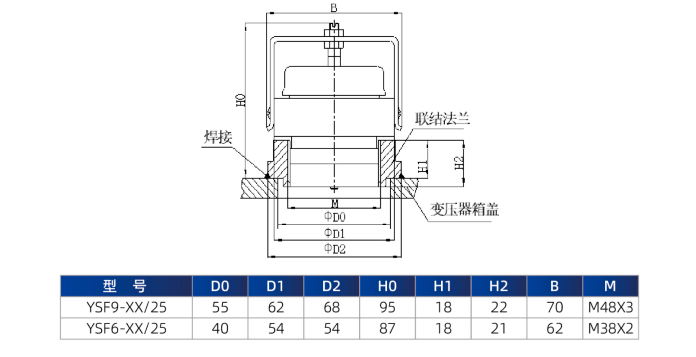

Installation Dimensions

Pressure Relief Valve Overpressure Protection Device for Transformer Oil Tanks
