Pressure Relief Valve Digital 55-138kPa for Oil Immersed Transformer Tank Protection
Pressure Relief Valve Digital 55-138kPa for Oil Immersed Transformer Tank Protection
Pressure Relief Valve Digital 55-138kPa for Oil Immersed Transformer Tank Protection
Pressure Relief Valve Digital 55-138kPa for Oil Immersed Transformer Tank Protection
Pressure Relief Valve Digital 55-138kPa for Oil Immersed Transformer Tank Protection
Pressure Relief Valve Digital 55-138kPa for Oil Immersed Transformer Tank Protection
Specifications
Opening Pressure :
55~138kPa
name :
Digital Pressure Relief Valve for Transformer
Bore :
Ø130
Place of Origin :
Zhejiang, China
Features :
Directional Oil Spray, Remote Alarm
Application :
Transformer, Capacitor, Tap-changer
Type :
Digital Pressure Relief Valve
Brand Name :
People Power
Description

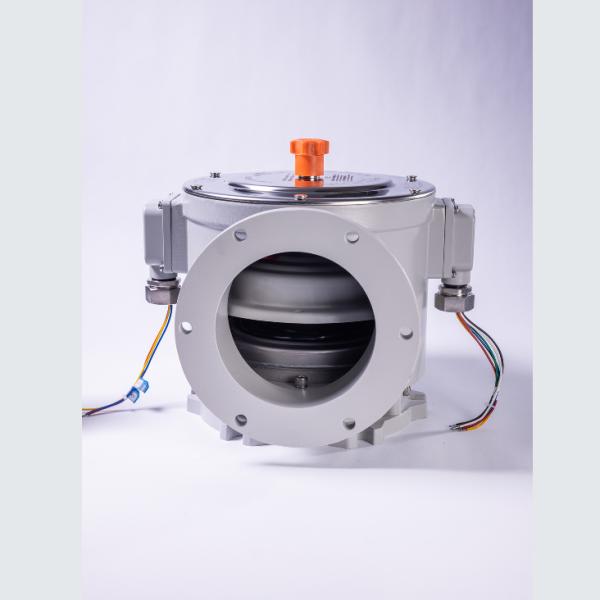

Digital Pressure Relief Valve for Transformer


Product Overview

The digital pressure relief valve is an advanced device integrating conventional pressure relief functions with intelligent monitoring technologies, primarily applied to oil-immersed power transformers, power capacitors, on-load tap-changers and other power equipment. Its core functions include rapid pressure discharge upon abnormal internal pressure buildup, real-time pressure variation monitoring, remote alarming and data logging, enabling intelligent operation and maintenance management.

If the internal pressure inside the tank of an oil-immersed power transformer surges sharply due to faults and fails to be released promptly, tank deformation or even rupture may occur. The pressure relief valve opens instantly once the tank pressure reaches its set opening pressure, rapidly lowering the internal tank pressure. When the pressure drops to the valve’s closing pressure threshold, the valve shuts down reliably to maintain a constant positive pressure inside the tank, effectively preventing ingress of ambient air, moisture and other contaminants.

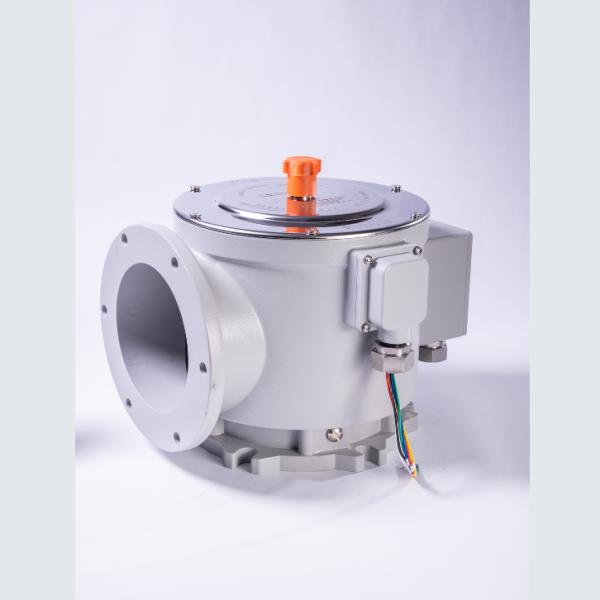

Models equipped with an oil directional ejection assembly (hereinafter referred to as directional oil-spray pressure relief valves) discharge transformer oil in a fixed direction, which is then guided through an oil conduit into an oil collecting sump to avoid oil splashing, complying with fire prevention and environmental protection requirements.


Performance Parameters


Effective Bore Diameter ∅130
Opening Pressure /KPa 55 70 85 100 138
Tolerance Deviation /KPa ±5 ±10
Closing Pressure /KPa 29.5 37.5 45.5 54 74
Sealing Pressure /KPa 33 42 51 60 82.8


Contact Rating


Power Supply Type ∅130
Voltage (V) Current (A)
AC 220 5
DC 220 1
