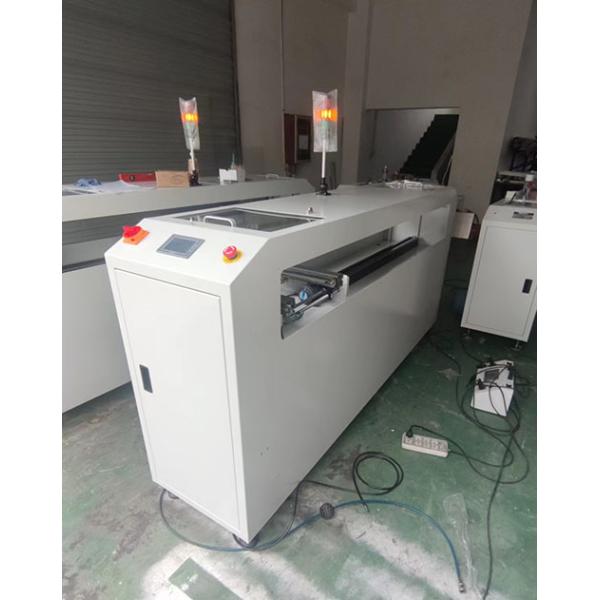

High quality PCB Automatic Shuttle Transfer Conveyor for 2 Production Lines
High quality PCB Automatic Shuttle Transfer Conveyor for 2 Production Lines
High quality PCB Automatic Shuttle Transfer Conveyor for 2 Production Lines
High quality PCB Automatic Shuttle Transfer Conveyor for 2 Production Lines
Specifications
Brand Name :
HSTECH
Model Number :
HS-500SC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~12 work days
Packaging Details :
Wooden package,with foam
Product name :
Shuttle conveyor
Color :
White
Power supply :
Meanwell driver,AC100-240V
PLC :
MITSUBISHI
Relay :
Schneider
Optoelectric switch :
OMRON
Singal :
SMEMA
Description

High quality machine automatic small conveyor smt line machine LED assembly line feed conveyor

This machine also called PCB translation machine,which is used for transporting boards from one line into two lines or vice versa,the orientation of the board won't change during traversing.

Specification

Model HS-500SC
PCB dimension (50*50)~(500*460)
Power supply AC100-240V meanwell brand
Transport height 900±20mm
Transport direction L to R, or R ro L,(optional)
PCB thickness Min 0.4mm
Machine dimension 600*(1500~4800)*1100mm
Weight 150~350kg

Features

1.The frame is made of thickened sheet metal.

2.Parallel power use step motor.

3.Parallel transfer device, import synchronous belt + guide using a semi-smooth block.

4.Width adjustable way:Manual.

5.Step motor is used for track transmission.

6.The operation panel is a touch screen.

7.PLC programmable controller control.

8.Standard SMEMA.

9.1 set of Control Cabinet.

Remark:Mode A (1 in 1 out)

Mode B (2 in 2 out )
