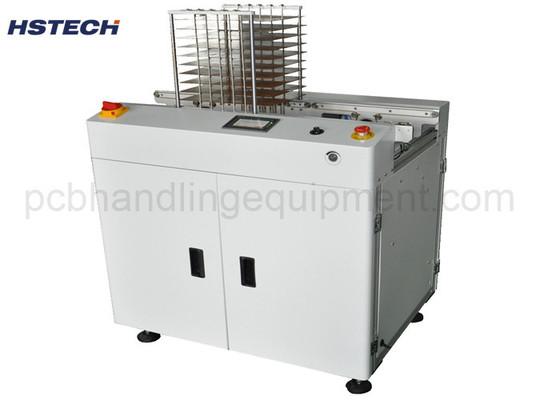

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
Specifications
Brand Name :
HSTECH
Model Number :
HS-CVN4600
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
12~20 work days
Packaging Details :
Wooden package
Product name :
PCB reject conveyor
Suitable PCB dimension :
50*50~550*460mm
Power supply :
AC100-230V
PLC :
MITSUBISHI
Sensor :
Sick
Contol :
Touch Screen
PCB Stock capacity :
5pcs or 10pcs
Signal :
SMEMA
Description

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Features

1, Reject, inspect and by-pass modes all available.

2, Modular design.

3, Stability enhanced by robust design.

4, Laser carved stainless steel side guide for superior quality and durability.

5, Ergonomic design arm rest.

6, Smooth and parallel width adjustment(lead screw).

7, Different lengths available upon request.

8, Variable speed control.

9,SMEMA compatible.

Specification

Function This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
Transport height 910±20mm
Transportation direction L~R, or R~L(optional)
Transporting speed 0.5~20 m/min or specify
Power supply AC100-230V,50/60Hz,single phase
PLC brand Mitsubishi
Sensor brand Sick
Driver brand Meanwell
Power consumption 100VA max
Air pressure 4-6bar
Air consumption Max 10L/min
Communication SMEMA

Model HS-CVN350 HS-CVN460
Efficient PCB length 50*50~450*350mm 50*50~550*460mm
Machine dimension 1000*690*930mm 1000*800*930mm
Weight 70kg

90kg

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Transporting rail

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Lifting Sturcture

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Electric control

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

About Packaging

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor

Stability Enhanced By Robust Design Modular Design SMEMA Compatible NG PCB Reject Conveyor
