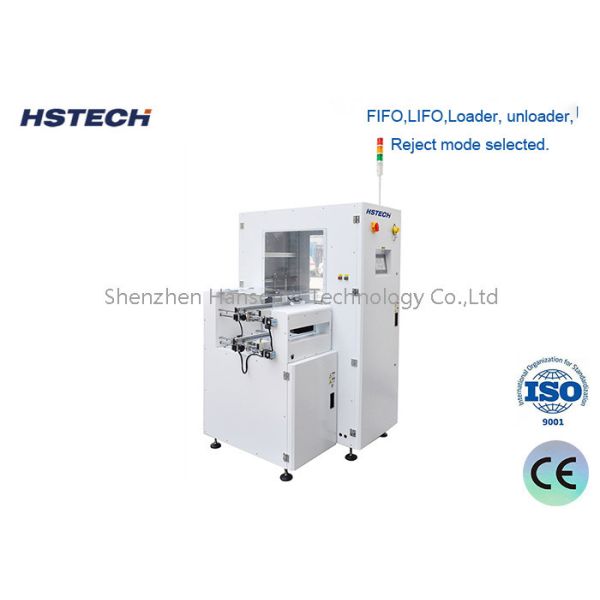

Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine
Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine
Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine
Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine
Specifications
Brand Name :
HSTECH
Model Number :
HS-330BF
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10~15 work days
Packaging Details :
Wooden package, with foam
Product name :
Vertical PCB Buffer Machine
Application :
Buffering PCBs on SMT production line
PCB Dimension :
L(50*50)-(450*330)mm
Air Supply :
4-6bar,max 15L/min
Material :
Stainless Steel
Cooler :
4 groups
Exhaust port :
2 pcs
Warranty :
1 year
Description

Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine

Introduction

This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual

signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.

Features

1.Use friendly soft touch screen control panel.

2. Operating mode:OK pass through or Stock,Ng reject,Awaiting definite, By Pass.

3. Durable rollers as conveying medium. ( no replacement of belts needed)

4.Fast,Smooth and Accurate indexing position. (Servo motor Drive)

5. ‘Threshold” system provided.

6. Smooth and parallel width adjustment.( Lead screw driven)

7. Small machine footprint.

8.SMEMA compatible.

Specification

MODEL HS-HC250 HS-HC250
EFFICIENT PCB SIZE 50*50~350*250mm 50*50~455*330mm
MACHINE SIZE 1250*1200*1600mm 1460*1360*1600mm
WEIGHT 200kg 230kg

MODEL HS-HC250 HS-HC250
EFFICIENT PCB SIZE 50*50~350*250mm 50*50~455*330mm
MACHINE SIZE 1250*1200*1600mm 1460*1360*1600mm
WEIGHT 200kg 230kg

TECHNICAL PARAMETERS

FUNCTION This unit is used as a buffer between SMD machine and Inspection equipment.
Transport Height

910±20mm
Transportation Direction L~R, or R~L
Board Collecting Lifting PCB rack
Conveyor Transporting Speed Adjustable
Rail Fixed Side Front side or rear side
Operation Side Front side
PCB Thickness Min 0.6mm
Pitch Selection 1-4(10mm pitch)
Power Supply 220V,50/60Hz,±10%
Power 0.05kW
PCB Stock Capacity Max 25pcs
Magazine No
Signal SMEMA
Options Automatic width adjustment
