All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-M/ADSS-G652D-xxFO
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE, LDPE, HDPE
Name :
Outdoor Fiber Optic Cable
Length :
2km~3km each roll
Cable type :
Mini ADSS
Fiber :
Single mode
Cores :
2 cores to 24 cores
Color :
Black
Diameter :
6.5mm
Part number :
KCO-M/ADSS-G652D-xxFO
Description

All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS


What is ADSS optic fiber outdoor cable?


ADSS fiber optic outdoor cable, or All-Dielectric Self-Supporting cable, is a type of optical fiber cable designed to be strong enough to support itself between structures without needing a conductive metal support or messenger wire to use in outdoor. It's commonly used in overhead installations, especially by electric utilities, along existing power lines.

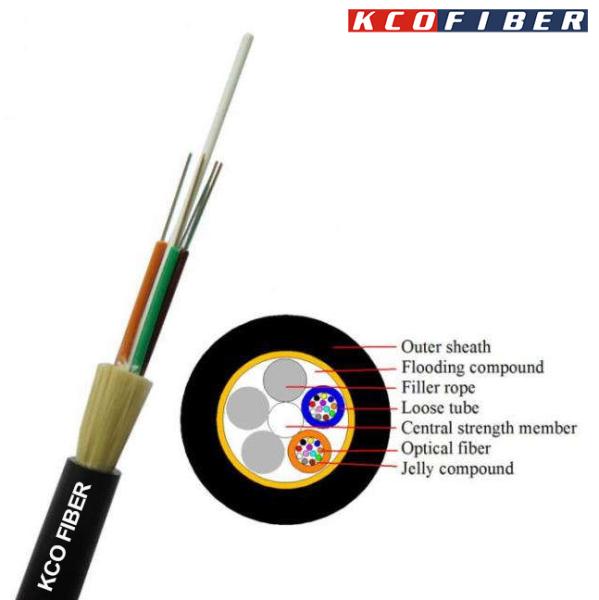

ADSS fiber optical cable structure:

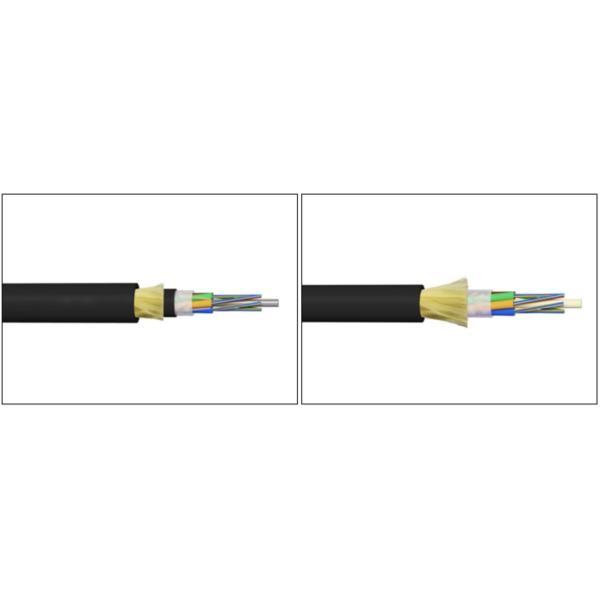

All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS


Characteristics:

All-Dielectric Construction: ADSS fiber optic cables are made entirely of non-conductive materials, making them safe for installation near energized power lines and eliminating the need for grounding.

Self-Supporting: They are designed to support their own weight and the forces of wind and ice, negating the need for a separate messenger wire.

High Tensile Strength: ADSS cables utilize materials like aramid fiber yarns to achieve high tensile strength, allowing them to withstand various environmental stresses.

Environmental Resistance: They are designed to resist UV radiation, temperature fluctuations, and moisture, making them suitable for diverse climates.

Long Span Capabilities: ADSS cables can span considerable distances between support structures (poles or towers), reducing the number of supports needed.


Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber 　 ≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA) 　 0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10


Fiber color:


1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

All Dielectric 24fo 48fo 96fo Single Mode Optical Fiber Outdoor Cable ADSS


Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.


Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
