1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-FTTH-ID02
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
LSZH
Name :
FTTH drop cable
Length :
100m, 200m, 500m, 1km, 2km
Application :
Indoor drop patch cable
Fiber :
Single mode, G652D, G657A1
Model :
KCO-FTTH-ID02
Diameter :
2.0*3.0mm
Color :
Black/ White
Core number :
2fo
Strength member :
steel wire, FRP, KFRP
Description
1FO 2FO 4FO Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
Single mode 2-core 2 FRP Optical Fiber Flat 8 Figure FTTH Drop Cable Anatel
The FTTH Drop cable serves as a critical component in FTTH networks, forming the final external connection between subscribers and feeder cables. Selecting the appropriate FTTH drop cable termination or interconnect solution directly impacts network reliability, operational flexibility, and the overall economics of FTTH deployment.
These FTTH drop cables are designed for direct installation into residential and commercial buildings, making them ideal for homes and offices. The flat FTTH drop cable features a polyethylene jacket, multiple fibers, and two dielectric strength members that provide exceptional crush resistance.
FTTH drop cables typically contain one or two fibers, though configurations with up to 4, 8, 12, or more fibers are now available. These cables are perfect for fiber-to-the-home last-mile solutions, featuring small diameters and lightweight construction for space efficiency and easy handling. The unique cable structure allows for easy fiber extraction during installation.
Key Features
  • Simple structure, lightweight design, and high practicality
  • Low smoke, zero halogen, flame retardant sheath
  • Special low-bend-sensitivity fiber ensures high bandwidth and excellent transmission performance
  • Two parallel strength members provide superior crush resistance for fiber protection
  • Innovative flute design enables easy stripping and splicing, simplifying installation and maintenance
Applications
  • LAN, WAN networks
  • CCTV, CATV systems
  • FTTX deployments (FTTH, FTTA, FTTB, FTTC, FTTO)
  • Outdoor distribution networks
  • Long-distance and local area network communications
  • Access networks and customer premises installations
  • Suitable for aerial and pipeline laying methods
Technical Parameters
Parameter Specification
Number of Fibers 2/4
Fiber Model G.657A1
KFRP Diameter 0.5mm (±0.03mm)
KFRP Quantity 2
Outer Sheath Material LSZH
Sheath Color White/Black
Cable Diameter 2.0×3.0mm (±0.2mm)
Cable Weight 8.50kg/km (±2kg/km)
Attenuation (1310nm) 0.50 dB/km
Attenuation (1550nm) 0.40 dB/km
Tensile Strength (Short Term) 80N
Tensile Strength (Long Term) 40N
Crush Resistance (Short Term) 2200N/100mm
Crush Resistance (Long Term) 1000N/100mm
Minimum Bending Radius (No Tension) 15.0×Cable Diameter
Minimum Bending Radius (Max Tension) 30.0×Cable Diameter
Temperature Range (Installation) -20°C to +60°C
Temperature Range (Transport & Storage) -40°C to +70°C
Temperature Range (Operation) -40°C to +70°C

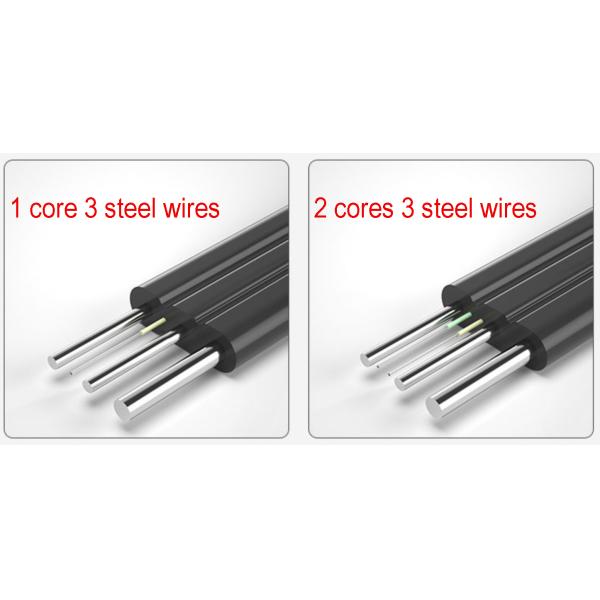

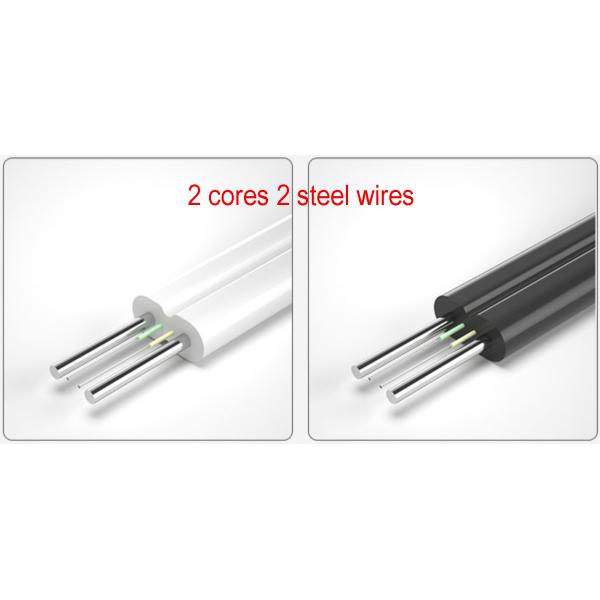

Cable Construction
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC 1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
Packaging
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
Technical Specifications
Fiber Type Fiber Sort Outsheath Material Outsheath Color Length Options
Multimode OM1 62.5/125 LSZH PVC Black, White, Other colors 100m, 200m, 300m, 500m, 1000m, 2000m
OM2 50/125
OM3 50/125 10G
OM4 50/125
OM5 50/125
Singlemode G652D
G655
G657A1
G657A2
G657B3

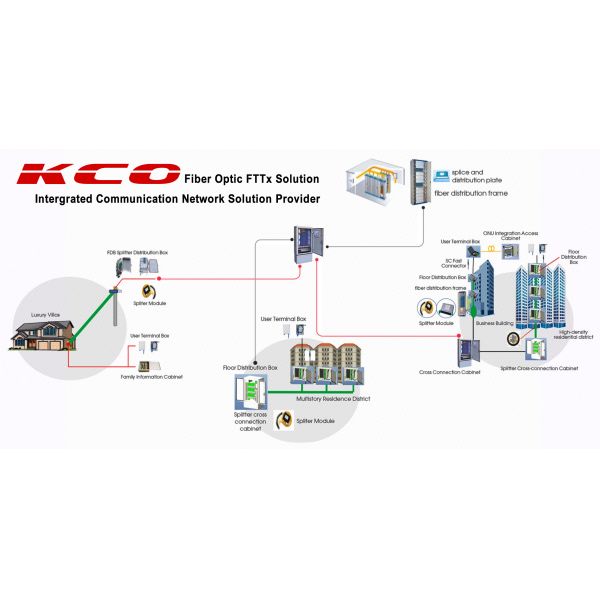

Kocent Optec Limited FTTH Solution
1fo 2fo 4fo Outdoor KFRP FRP FTTH Drop Fibre Optics Cable LSZH PVC
OEM/ODM Services
We offer comprehensive OEM and ODM services, allowing you to display your brand logo on cables, packaging bags, labels, or any other surface. Contact our sales team for personalized support and branding solutions.
Packaging Options
  • Standard export packaging
  • Carton boxes, wooden boxes, wooden pallets
Shipping Methods
International Express: DHL, FedEx, TNT, UPS, etc.
International Air: CA, AA, EA, etc.
Sea Freight:
Standard Export Sea Ports: Shenzhen, Hongkong, Ningbo
Standard Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
