GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GYTC8S
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE, LDPE, HDPE
Name :
Outdoor Fiber Optic Cable
Length :
1km~5km each roll
Cable type :
GYTC8S
Fiber :
Single mode, Multimode
Cores :
2 cores to 144 cores
Color :
Black
Diameter :
9.0mm
Part number :
GYTC8S-xA1
Description
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable
Product Description

- The GYFTC8Y Fiber Optic Cable fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound.

- Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member.

- The cable core is protected with jelly or water-blocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer sheath.

- The fibers, either of single-mode or multimode type, are placed in a loose tube made of high modulus plastic.

- The tubes inside are filled with a water-resistant filling compound.

- A center member locates in the center of core as a non- metallic strength member.

- The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

- Water blocking yarn and water blocking tape to protect cable from water. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

Standard

- Complies to ITU-T G.652.D, IEC 60793, IEC 60794, and related TIA/ EIA standards.

Applications
- GYFTC8Y Cable is designed for outdoor/aerial applications, with high tensile strength, crush resistance and suitable bending radius.

Fiber Characteristics
Fiber Style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0
Dispersion (1550nm) Ps/(nm*km) Dispersion
Dispersion (1625nm) Ps/(nm*km)
Bandwidth (850nm) MHZ.KM Bandwidth
Bandwidth (1300nm) MHZ.KM
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm
PMD Maximum Individual Fiber
≤0.11
Fiber Color Code
  • 1. Blue
  • 2. Orange
  • 3. Green
  • 4. Brown
  • 5. Grey
  • 6. White
  • 7. Red
  • 8. Black
  • 9. Yellow
  • 10. Violet
  • 11. Pink
  • 12. Aqua

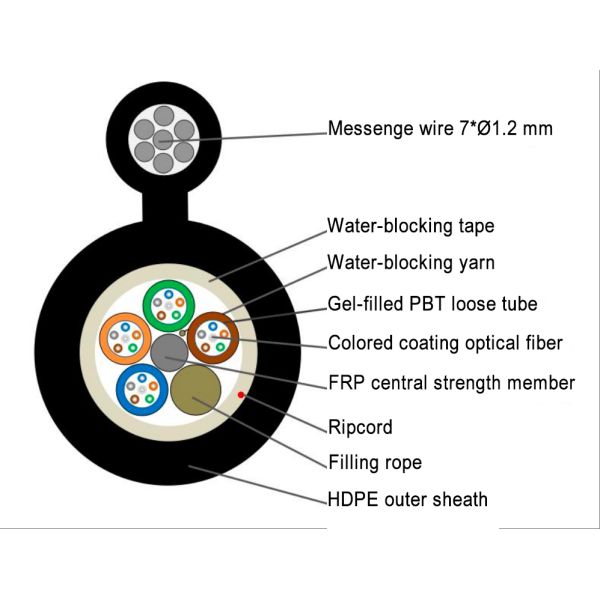

Cable structure
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
OEM/ODM Service

We offer custom branding options for your cable, packaging, and labels. Our OEM and ODM services can accommodate your specific branding requirements.

Packing

Standard export packing options include carton boxes, wooden boxes, and wooden pallets.

Shipping Options
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
