Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-M/ADSS-G652D-xxFO
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE, LDPE, HDPE
Name :
Outdoor Fiber Optic Cable
Length :
3~5km each roll
Cable type :
ADSS
Fiber :
Single mode
Cores :
2 cores to 288 cores
Color :
Black
Diameter :
8.0mm
Part number :
KCO-ADSS-G652D-xxFO
Description

Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS


What is ADSS optic fiber outdoor cable?


ADSS fiber optic outdoor cable, or All-Dielectric Self-Supporting cable, is a type of optical fiber cable designed to be strong enough to support itself between structures without needing a conductive metal support or messenger wire to use in outdoor.

ADSS fiber optic cable adopts the twisted structure, 250um fiber is inserted into the loose tube made of high modulus materials. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. The gap of the cable core is filled with a water-blocking yarn and a water-blocking tape longitudinally wrapped by the cable core. After stranded layer of aramid yarn are applied as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

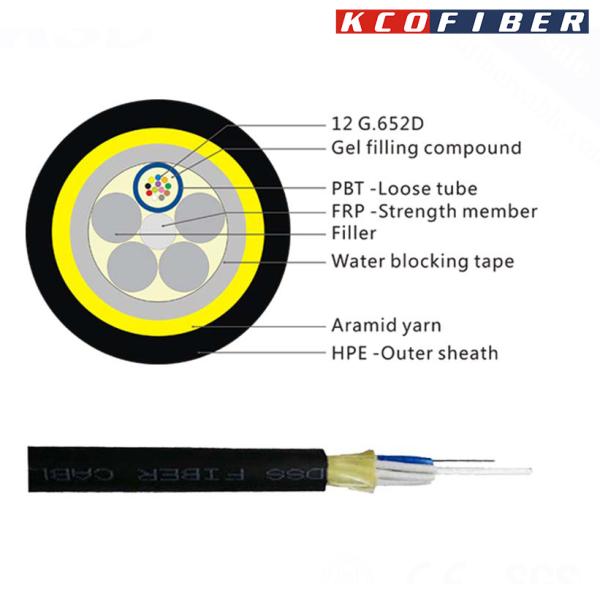

ADSS fiber optical cable structure:

Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS


Characteristics:

All-Dielectric Construction: ADSS fiber optic cables are made entirely of non-conductive materials, making them safe for installation near energized power lines and eliminating the need for grounding.

Self-Supporting: They are designed to support their own weight and the forces of wind and ice, negating the need for a separate messenger wire.

High Tensile Strength: ADSS cables utilize materials like aramid fiber yarns to achieve high tensile strength, allowing them to withstand various environmental stresses.

Environmental Resistance: They are designed to resist UV radiation, temperature fluctuations, and moisture, making them suitable for diverse climates.

Long Span Capabilities: ADSS cables can span considerable distances between support structures (poles or towers), reducing the number of supports needed.

Fiber characteristic:

Fiber style

Unit

SM

G652D

Condition

nm

1310/1550

Attenuation

dB/km

≤0.34/0.22

Dispersion

1550nm

Ps/(nm*km)

≤18

1625nm

Ps/(nm*km)

≤22

Bandwidth

850nm

MHZ.KM

----

1300nm

MHZ.KM

----

Zero dispersion wavelength

nm

≥1302

≤1322

Zero dispersion slope

nm

≤0.091

PMD Maximum Individual Fiber

　

≤0.2

PMD Design Link Value

Ps(nm2*km)

≤0.08

Fibre cutoff wavelength λc

nm

≥1180

≤1330

Cable cutoff

wavelength λcc

nm

≤1260

MFD

1310nm

um

9.2±0.4

1550nm

um

10.4±0.8

Numerical Aperture (NA)

　

----

Step (mean of bidirectional measurement)

dB

≤0.05

Irregularities over fiber length and point

dB

≤0.05

Difference backscatter coefficient

dB/km

≤0.03

Attenuation uniformity

dB/km

≤0.01

Core diameter

um

　9

Cladding diameter

um

125.0±0.1

Cladding non-circularity

%

≤1.0

Coating diameter

um

242±7

Coating/chaffinch

concentrically error

um

≤12.0

Coating non circularity

%

≤6.0

Core/cladding concentricity error

um

≤0.6

Curl(radius)

um

≤4


Fiber color:


1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS

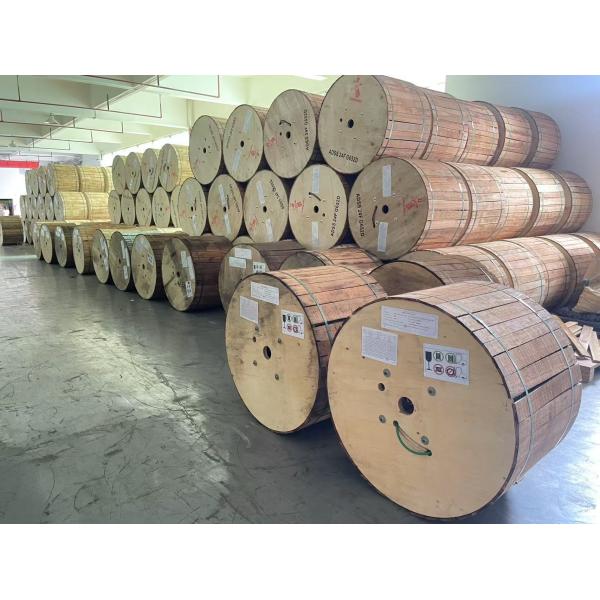

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.


Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
