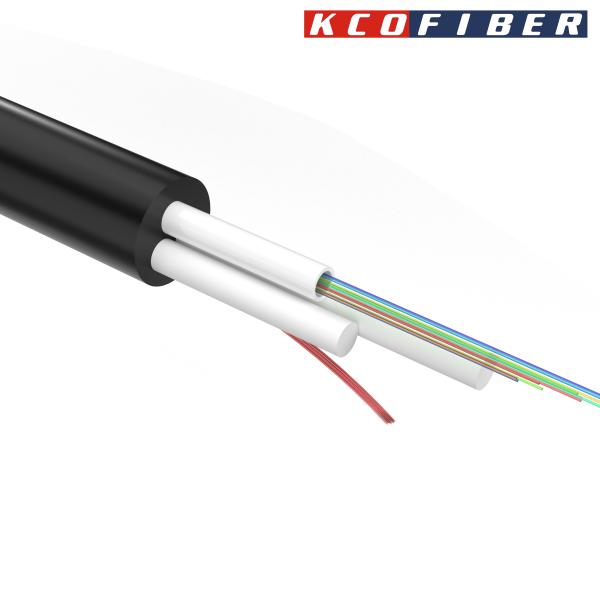

ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-M/ADSS-G652D-xxFO
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE, LDPE, HDPE
Name :
Outdoor Fiber Optic Cable
Length :
2km~3km each roll
Cable type :
Mini ADSS
Fiber :
Single mode
Cores :
2 cores to 24 cores
Color :
Black
Diameter :
6.5mm
Part number :
KCO-M/ADSS-G652D-xxFO
Description

ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable


1. What is Mini ADSS fiber optical cable?


ASU Fiber Optic Cable / Mini ADSS Fiber Optical Cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube. The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. Two embedded FRP or metallic wire provides desire tension.

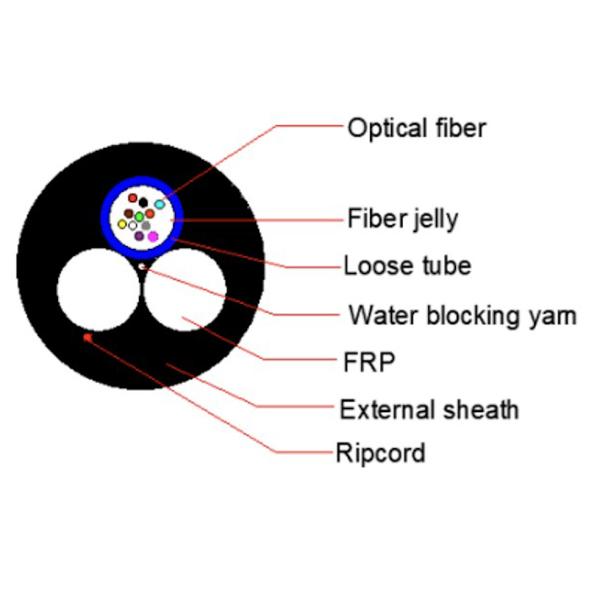

2. Mini ADSS fiber optical structure:

ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable


3. Characteristics:

-Large span lengths and the largest span is over 1700 m.
- Non-metallic material, with high insulating property performances as well as lightning-proof.
- Special anti-track outer sheath protection, strong anti-electro-corrosion ability.
- The aramid yarn ensure the cable's tensile resistance, and also have good bullet-proof performance.
- Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the tower.
- Can be installed without shutting off the power.


4. Applications:

- Adopted to Outdoor.

- Suitable for aerial, pipeline laying method.

- Long distance and local area network communication.


5. Cable Mechanical Characteristic:

Item

Contents

Value

Loose tube

Number

1

Outer diameter(mm)

2.1

Thickness

0.3

Materials

PBT

Water blocking

Tube filling compound

Strength member

Materials

FRP

Diameter(mm)

2.0

2.5

Number

2

Water blocking

Material

Water blocking yarn

Sheath

Material

HDPE

Color

Black

Rip cord

Number

1.2

Cable diameter (mm) Approx

6.5±0.5

7.5±0.5

Cable weight (kg/km) Approx

45

65

Span(m)

80

120

MAT

690

980


6. Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber 　 ≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA) 　 0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10


7. Fiber color:


1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable


Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.


Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
