FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-M/ADSS-G652D-xxFO
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE, LDPE, HDPE
Name :
Outdoor Fiber Optic Cable
Length :
2km~3km each roll
Cable type :
Mini ADSS
Fiber :
Single mode
Cores :
2 cores to 24 cores
Color :
Black
Diameter :
6.5mm
Part number :
KCO-M/ADSS-G652D-xxFO
Description

FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom


1. What is Mini ADSS ASU optic fiber cable?


ASU Optic Fiber Cable / Mini ADSS Fiber Optic Cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube. The optic fiber cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. And two embedded FRP or metallic wire strength members provide desire tension.

ASU optic fiber cable is mini outdoor fiber optic cable, use for telecom project, with long span and econimic price, it is widely using to replace the less fiber count ofr ADSS cable to save more cost.

ASU fiber optic cable is available in single mode and multimode fiber. Normally use for 2fo, 4fo, 8fo, 12fo or 24fo.

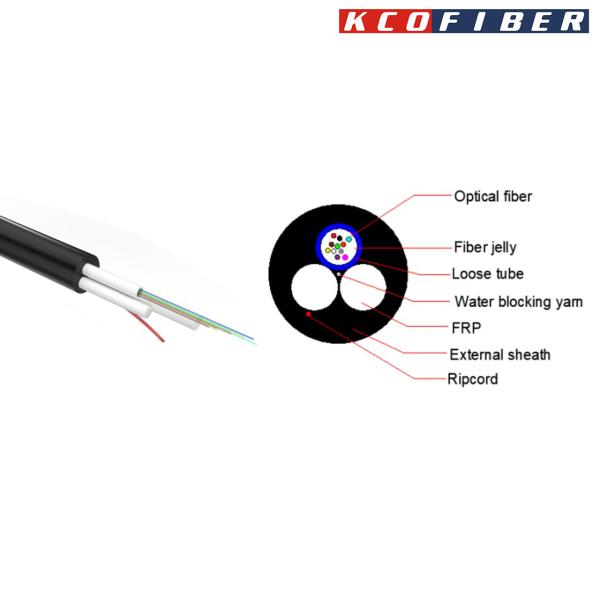

2. Mini ADSS fiber optical structure:

FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom


FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom

3. Characteristics:

Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound
100% cable core filling


4. Applications:

- Adopted to Outdoor.

- Suitable for aerial.

- Long distance and local area network communication.

- FTTH, FTTA project.


5. Cable Mechanical Characteristic:

Item

Contents

Value

Loose tube

Number

1

Outer diameter(mm)

2.1

Thickness

0.3

Materials

PBT

Water blocking

Tube filling compound

Strength member

Materials

FRP

Diameter(mm)

2.0

2.5

Number

2

Water blocking

Material

Water blocking yarn

Sheath

Material

HDPE

Color

Black

Rip cord

Number

1.2

Cable diameter (mm) Approx

6.5±0.5

7.5±0.5

Cable weight (kg/km) Approx

45

65

Span(m)

80

120

MAT

690

980


6. Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber 　 ≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA) 　 0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10


7. Fiber color:


1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

FTTH Mini ADSS Span 80m SM 8fo 12fo 24fo ASU Optic Fiber Cable For Telecom


Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.


Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
