Single Mode G652D Anti Rodent Outdoor Application GYTS Fiber Optic Cable For Duct

1. What is GYTS fiber optic cable?

• GYTS fiber optic cable is a type of armored fiber optic cable for outdoor application for duct.
• It is used for telecommunications that is suitable for duct, aerial, and direct burial installations.
• Its name indicates it is an outdoor cable (GY), with stranded loose tubes (T), and a corrugated steel tape armoring (S).
• The steel tape provides enhanced protection against mechanical stress, moisture, and rodents.
• GYTS Cable: metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication.
• In the GYTS cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

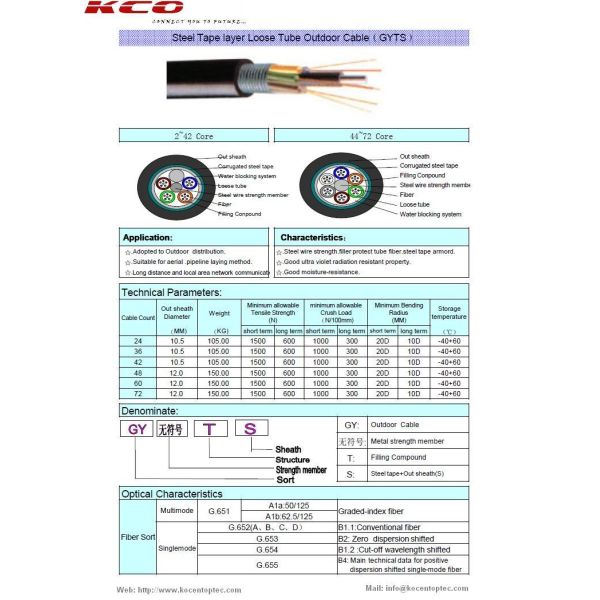

2. Construction:

3. Characteristics:

• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Specially designed compact structure is good at preventing loose tubes from shrinking
• PE sheath protects cable from ultraviolet radiation
• The following measures are taken to ensure the cable watertight
• Steel wire used as the central strength member
• Loose tube filling compound

4. Standard

• Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

6. Fiber characteristic

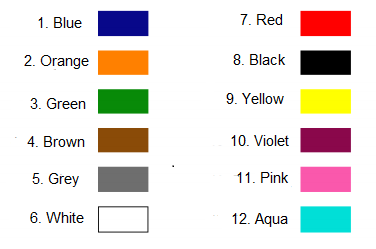

7. Fiber color

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

• International express such as UPS, TNT, DHL, etc
• Internatioal air: CA, AA, EA, etc
• By sea
