OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
Specifications
Supply Ability :
10,000km/ month
Material :
AL
Model Number :
KCO-GYTA53-xxb1
Color :
Silver
Cable type :
OPGW
MOQ :
Negotiation
Delivery Time :
3~5 days after get payment
Cores :
4 cores to 144 cores
Payment Terms :
Western Union,T/T,L/C
Name :
Outdoor Fiber Optic Cable
Fiber :
SM G652D, SM G657A
Price :
Negotiation
Length :
5km / reel, 3km/reel
Part number :
KCO-OPGW
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
Brand Name :
KCO, Kocent Optec Limited
Diameter :
9.0mm
Packaging Details :
wooden roll, wooden pallet
Description
OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
1. What is OPGW fiber optic cable?

  • OPGW, short for Optical Fiber Composite Overhead Ground Wire, is a specialized fiber optic cable that used in the construction of high-voltage electric power transmission lines.

  • OPGW fiber optic cable is a power transmission cable featuring dual functions on overhead lines. The power line protects (in lightning strikes) and the fiber for high-speed data communications. Being positioned at the top of the transmission towers, it is vital in utility communication systems today, such as SCADA systems, controlling the smart grid and leasing dark fiber.


  • It functions as a traditional grounding shield wire to protect power conductors from lightning, while simultaneously housing high-capacity optical fibers for high-speed data communication.

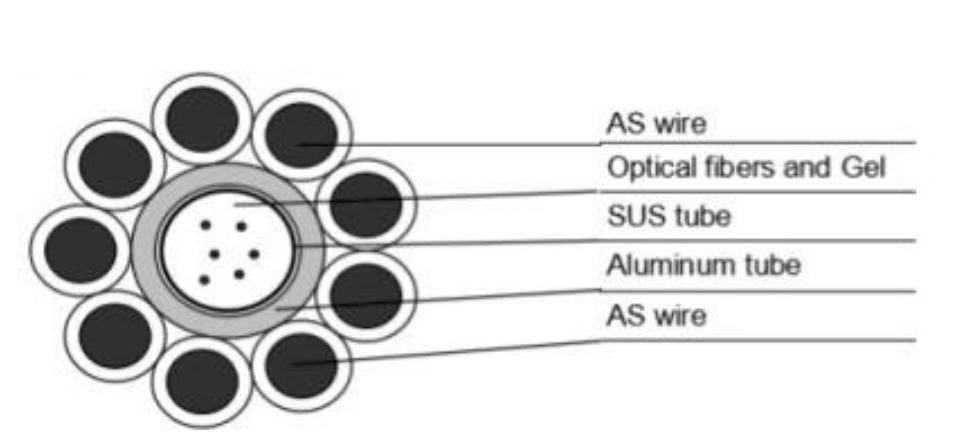

2. Fiber Optic GYTS Cable structure:
  • AS wire
  • Gel Filling Compoud
  • SUS tube
  • Aluminum tube
  • Colored optical fiber

OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial

3. OPGW Fiber Optic Cable Advantage:
  • High tensile strength, ideal for long-span and high-voltage lines.
  • The best parameter for electrical conduction and heat dissipation.
  • Supports a wide fiber count (6fo to 96fo)
4. Fiber Optic GYTA53 Cable Production Standard

  • Unless otherwise specified in this specification, all requirements for individual wires and completed conductor shall be mainly in accordance with the following standard specifications.
  • IEC 60794-4
Optical fiber cables - Aerial Optical Cables Along Electrical Power
  • Lines IEC 60104
Aluminum Magnesium-Silicon Alloy Wire for Over-Head Line Conductors IEC 60793- 1 Generic Specifications, Optical Fibers
  • IEC 60794-1-2
Generic Specification· Basic optical cable test procedures
  • IEC 61089
Round Wire Concentric Lay Overhead Electrical Standard Conductors
  • IEC 61232
Aluminum-Clad Steel Wire for Electrical Purposes
  • IEC 61396
Electrical Mechanical and Physical Requirements and Test Methods of Optical Ground Wire (OPGW)
  • ITU-T G..650
Definition and test method for the relevant parameters of single-mode fibers
  • ITU-T G..652
Characteristics of a Single-Mode Optical Fibers
  • ITU-T G..655
Characteristics of Non-Zero Dispersion-Shifted Single-Mode Optical Fibers
  • IEEE 1138
Standard Construction of Composite Fiber Optic Overhead Ground Wires(OPGW) for use on Electric Utility Power Lines
  • ASTM B398
Standard Specification for Aluminum-Alloy 6201-T81 Wire for Electrical Purposes
  • ASTM B 415
Standard Specification for Hard-Drawn Aluminum-Clad Steel Conductors
  • ASTM B416
Specification for Concentric-Lay-Stranded Aluminum-Clad Steel Conductors
  • EIA/TIA-455
Standard Test Procedures for Optic Fibers, Cables, Transducers, Sensors, Connecting
and Terminating Devices and other Fiber Optic Components
  • EIA 492A
Generic Specification for Optical Waveguide Fibers
  • EIA 472A
Sectional Specification for Fiber Optic Communication Cables for Outside Aerial Use
  • EIA/TIA 598
or ANSI/EIA 359-A-1984.6 Color Code of Fiber Optic Cables
  • ISO 9001
Quality Management Systems
  • ISO14001
Environmental Management Systems

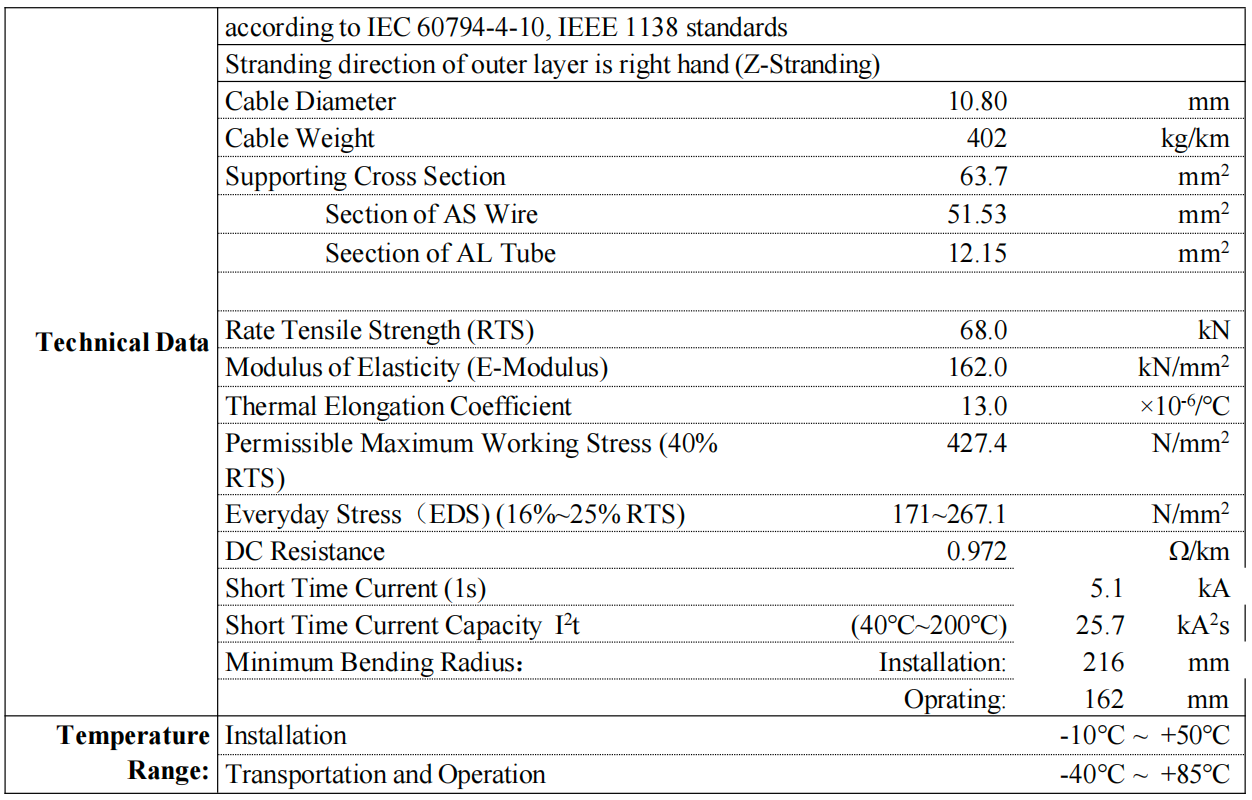

5. OPGW Fiber Optic Cable Specification:
OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
6. Fiber characteristic

 G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm

≤3.0 dB/km ≤3.0 dB/km
@1300nm

≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km

@1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth (Class A) @850nm

≥500 MHz·km ≥200 MHz·km
@1300nm

≥1000 MHz·km ≥600 MHz·km
Numerical Aperture

0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

7. Fiber and loose tube color
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial

KCO Fiber OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

OPGW-24B1-67 OPGW Fiber Optic Cable SM G652D 24cores Optical Ground Wire for Aerial
Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
