PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
Specifications
Brand Name :
PRINTYOUNG
Model Number :
PRY-D120
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 8500 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per Month
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Cup Size :
3 ~ 19 oz
Suitable Paper Material :
150 ~ 380 g/m²
Capacity :
90 ~ 120 pcs/min
Power Source :
220V , 380V 50Hz
Total Power :
4 kw
Weight :
1300 kg
Air Pressure :
0.4 Mpa
Air Out-put :
0.6 m³/min
Description
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

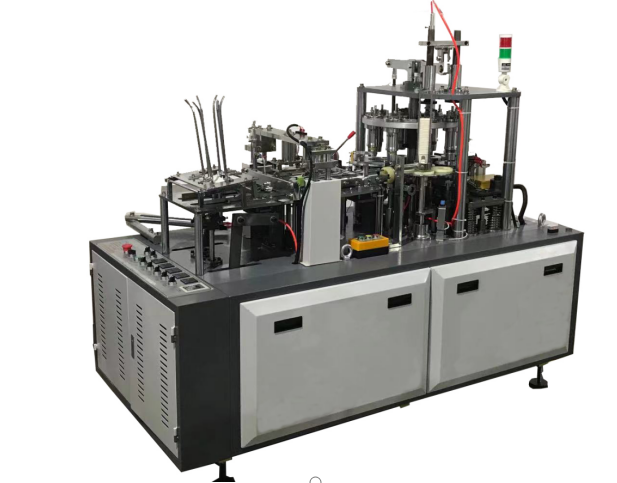

PRY-D120 Paper Cup Forming Machine
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
Features
This type paper cup machine advantages:high performance,high efficiency,high quality.

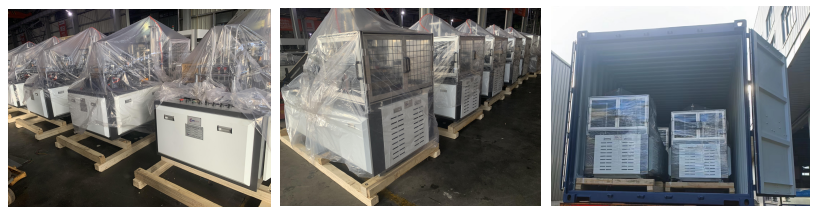

1.This paper cup machine packing size only 2100 * 1100 * 1700 mm.20GP container can loading 6 sets,40HQ container can loading 12sets.Greatly reduce the transportation cost,is the ideal equipment for the production of small cup.
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
2.High production speed,making cup speed can be 70-90pcs/min,stable operation at 85 pcs/min,cost-effective than similar products.
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

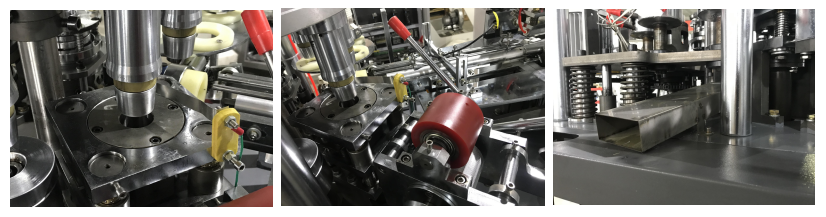

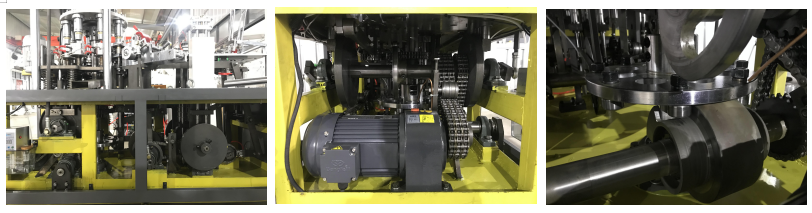

3.Aluminum disc indexing adopts open cam,maintenance and lubrication is more convenient and simple than gear box divider,the space of transmission parts in the machine is large,and it is easy to operate and maintain.It is superior to similar products on the market in all aspects,and can replace similar models on the market.
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
Technical Parameters
Model Number
PRY-D120
Cup Size
3 ~ 19oz (different size mold exchanged)
Suitable Paper Material
150 ~ 380 g/m² (single or double PE-coated paper)
Capacity
90 ~ 120 pcs/min
Power Source
220V , 380V 50Hz(please inform us your power in advanced)
Total Power
4 kw
Weight
1300 kg
Package Size
2100 * 1100 * 1700 mm
Air Pressure
0.4 Mpa
Air Out-put
0.6 m³/min
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

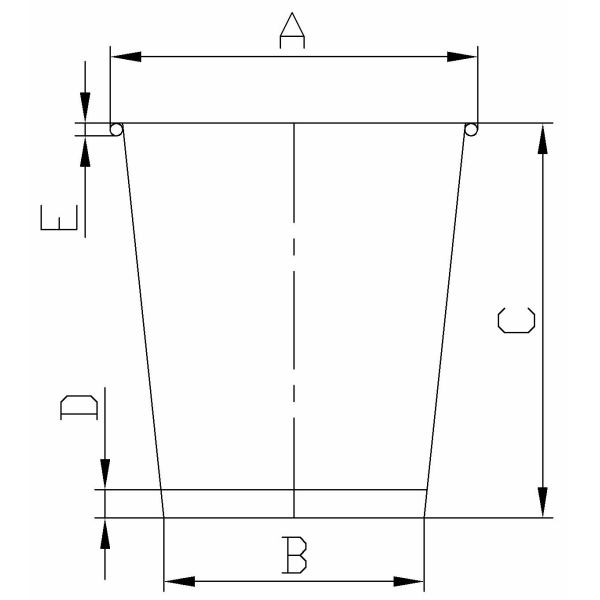

Min
Max
A (top diameter)
30 mm
70 mm
B (bottom diameter)
30 mm
58 mm
C (total height)
30 mm
90 mm
D (bottom knurling depth)
4 mm
10 mm
E (rim diameter)
Usually Φ2---Φ3
Configuration

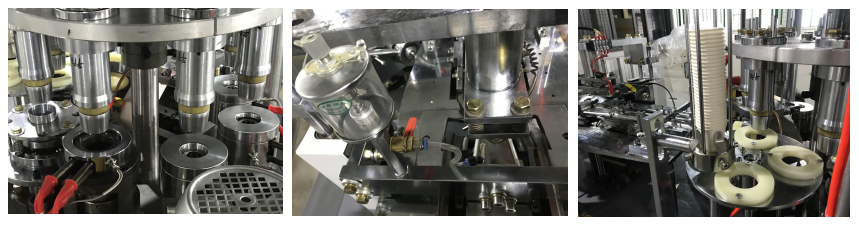

1.Three Times Paper Feeding

Paper can be well adjusted with three times feeding process,avoid the irregularity during folding paper fan.

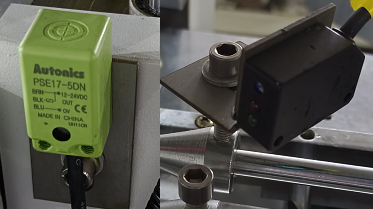

2.Sensor System

Encoder and the sensor control the machine at the same time,one paper fan match one bottom,no waste.Failure warning,machine stopped automatically.
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-NewPRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

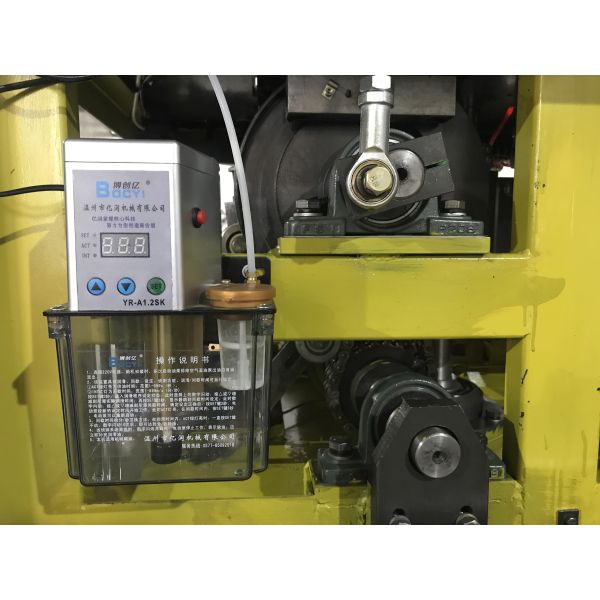

3.Self-lubrication System.

Maintaining oil go to machine every part needed,no need worker spraying oil manually.
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

4.Bottom Cutting

When give the bottom paper,sometimes the bottom paper will be turned over,cannot match the paper fan well,this machine shorten the process,give bottom directly,avoid the problem.
Optionals

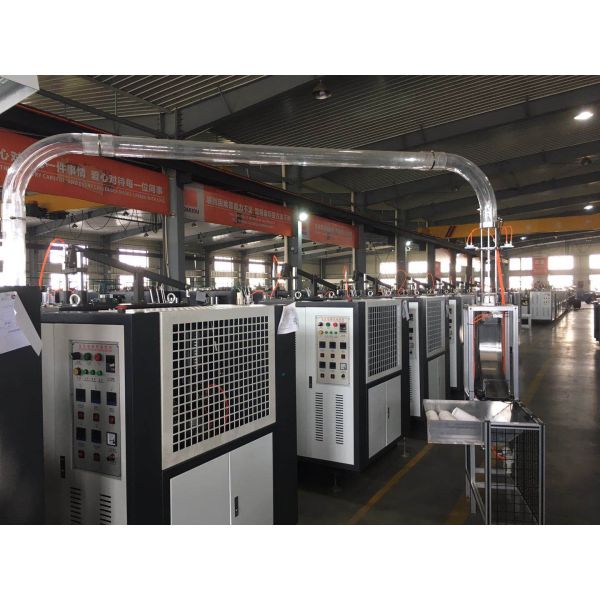

1.Collection Table

Collection table can collect cup automatically,no need labor to count the cups one by one.
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-NewPRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

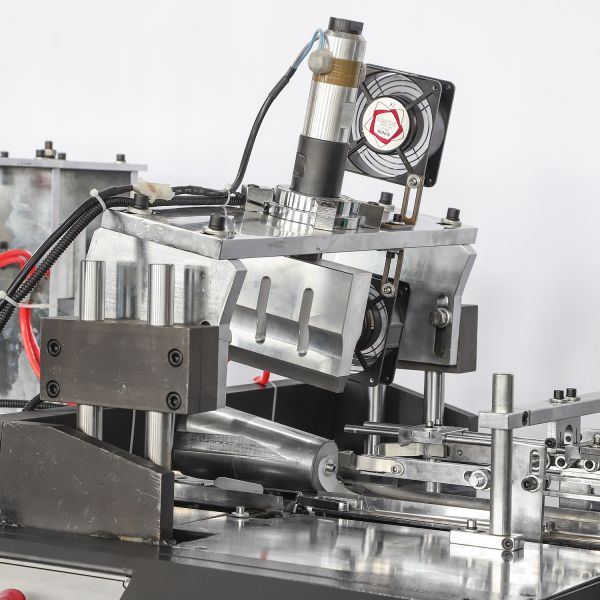

2.Ultrasonic

If you need double PE coated paper cups or paper gram higher than 250g/m²,we recommend to use ultrasonic paper cup machine.It can produce single PE coated paper cups and double PE coated paper cups.

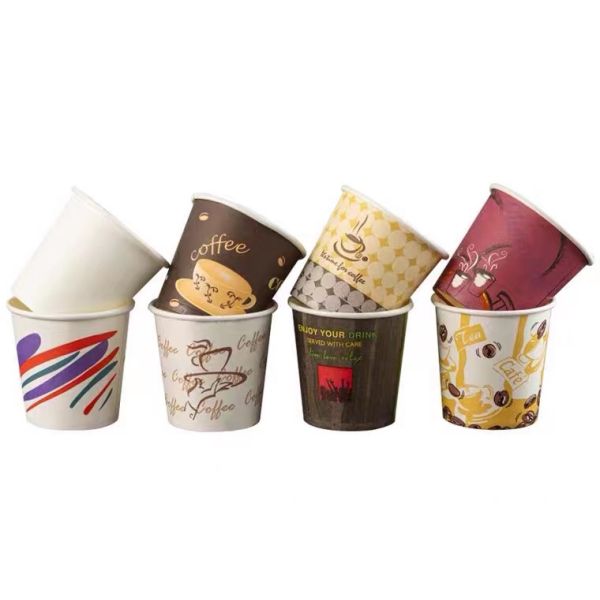

Applications
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New
