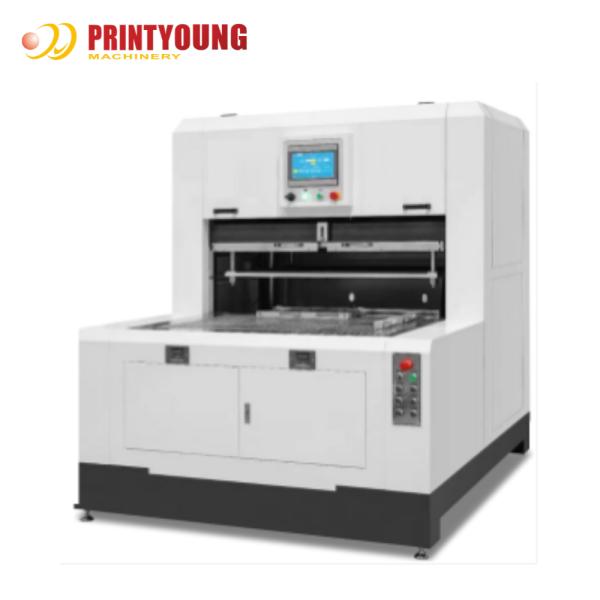

PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Specifications
Brand Name :
PRINTYOUNG
Model Number :
PRY-1080
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
US 19000 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Max. Paper Size :
1080 * 780 mm
Min. Paper Size :
400 * 200 mm
Max. Blanking Size :
1030 * 730 mm
Min. Blanking Size :
40 * 40 mm
Stripping Height :
40 ~ 120 mm
Weight :
3.5 t
Voltage :
380 V
Power :
8 kw
Description
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Features
* Large torque,fast starting,fast braking,fast reversing,precise pressure stroke control,and can work stably in harsh environments of high and low temperatures.It is safer and more stable than ordinary hydraulic systems.
* Compared with ordinary hydraulic systems,it saves 70% energy.
* It is 1/10 of the noise of ordinary hydraulic systems.
* It can continuously maintain pressure with infinite speed regulation,and the oil temperature is 1/3 of that of ordinary hydraulic stations,which prolongs the service life of the hydraulic system and is simple to maintain.
* High-density honeycomb panels can be equipped with φ 5/3 φ stripping pin to achieve full page stripping.The upper and lower honeycomb panels are engraved with scales for fast and accurate alignment.
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Technical Parameters
Model
PRY-1080
Max. Paper Size
1080 * 780 mm
Min. Paper Size
400 * 200 mm
Max. Blanking Size
1030 * 730 mm
Min. Blanking Size
40 * 40 mm
Stripping Height
40 ~ 120 mm
Weight
3.5 t
Voltage
380 V
Power
8 kw
Blanking Speed
1 ~ 2 times/min
Net Weight
3500 kg
Machine Size
2000 * 1700 * 1950 mm
Machine Packing Dimension
2180 * 1870 * 2240 mm
Applications
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
